Flywheel

Flywheel Bolt

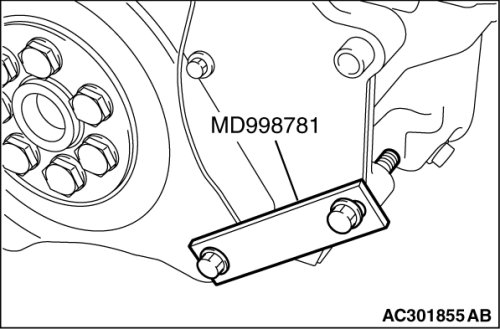

1. Use special tool MD998781 to secure the flywheel assembly or A/T drive plate in the same manner as removal.
2. Tighten the flywheel bolts or A/T drive plate bolts to the specified torque.

Tightening torque 132± 5Nm (98± 3 ft-lb)
