Blower Motor Switch: Testing and Inspection




INSPECTION

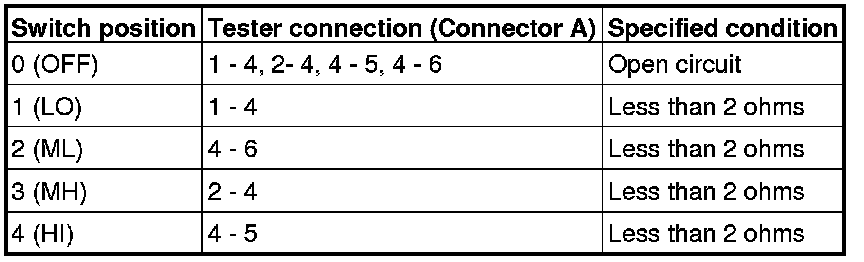

BLOWER SWITCH CONTINUITY CHECK

Check the following and replace the heater control if they are defective.
