Vehicles With Discharge Type Headlight
Vehicles With Discharge Type Headlight

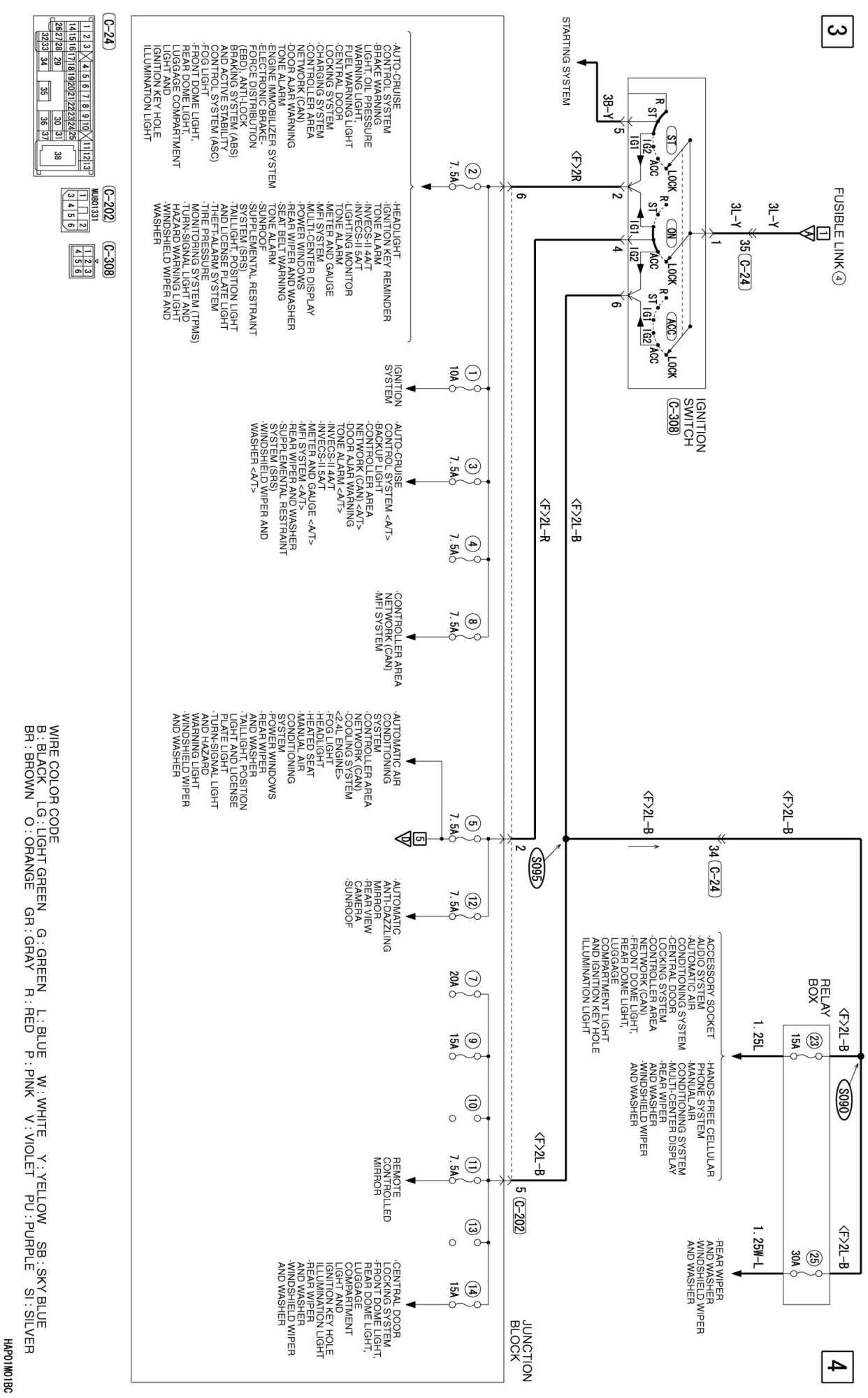

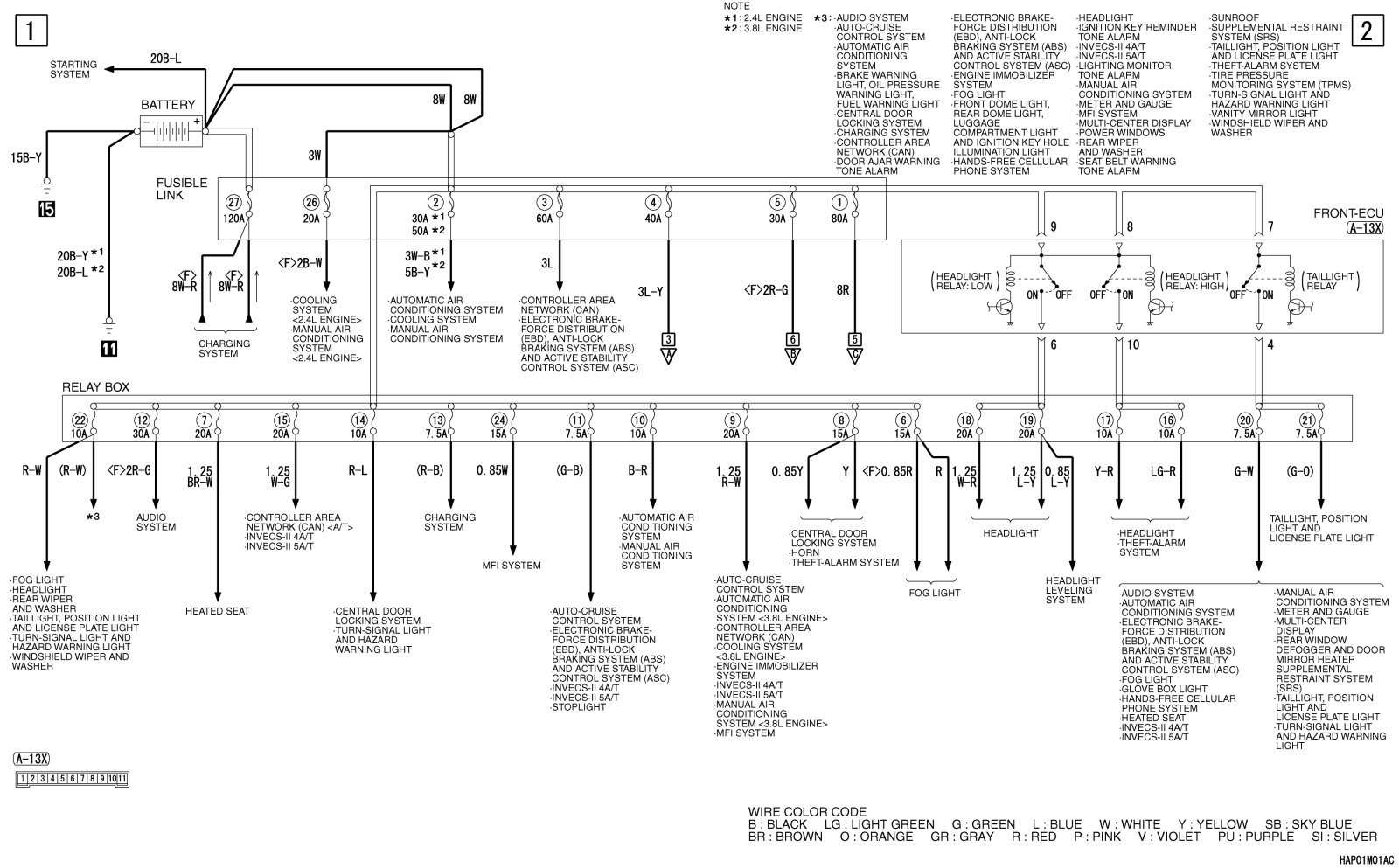

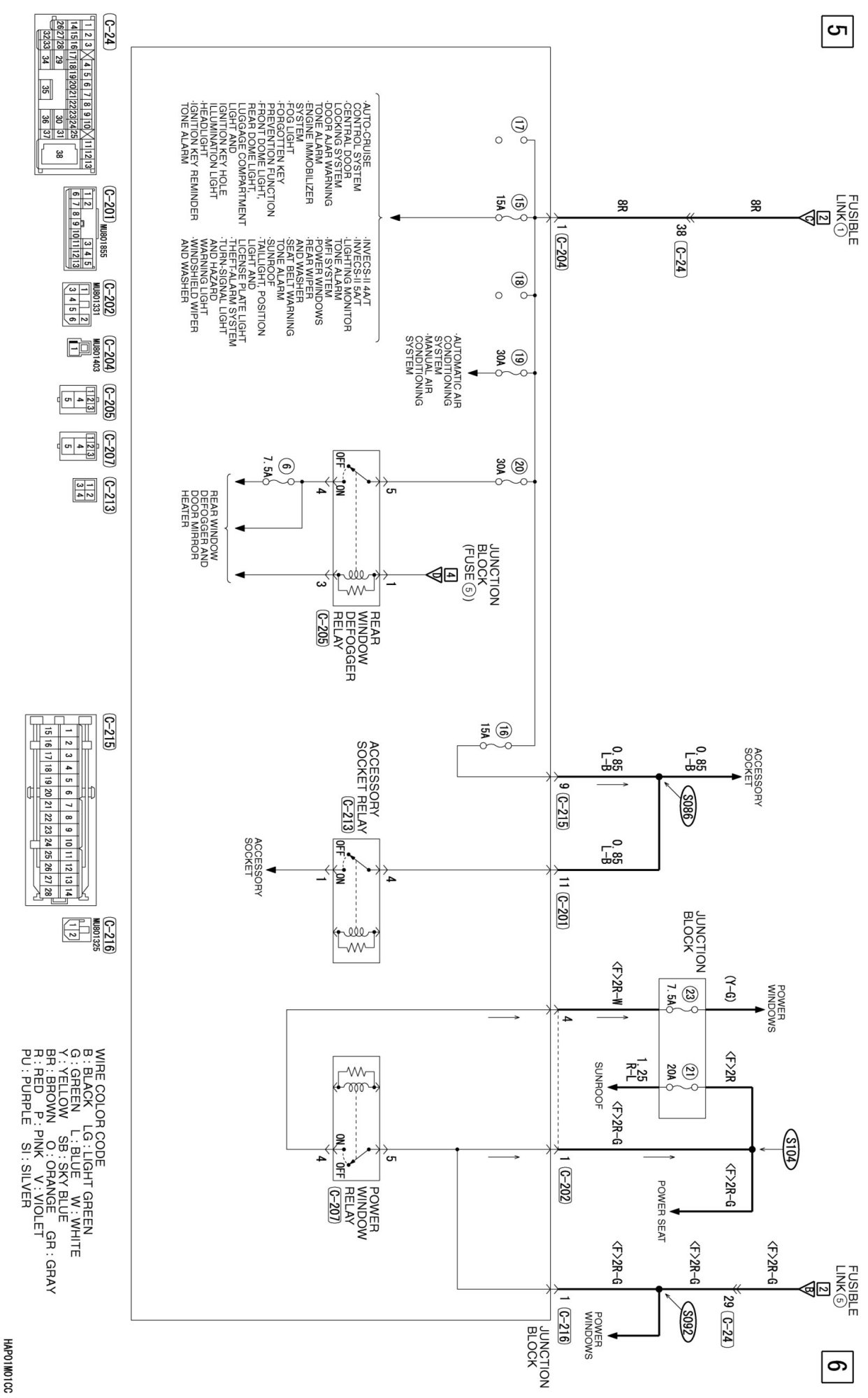

POWER DISTRIBUTION SYSTEM [ECLIPSE (VEHICLES WITH DISCHARGE TYPE HEADLIGHT)]
