Headlamp Bulb: Service and Repair

BULB REPLACEMENT

HEADLIGHT BULB [VEHICLES WITHOUT DISCHARGE HEADLIGHT]

CAUTION:
Do not touch the surface of the bulb with hands or dirty gloves as the bulb may fail after a short time. If the surface does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.

1. Disconnect the headlight connector.

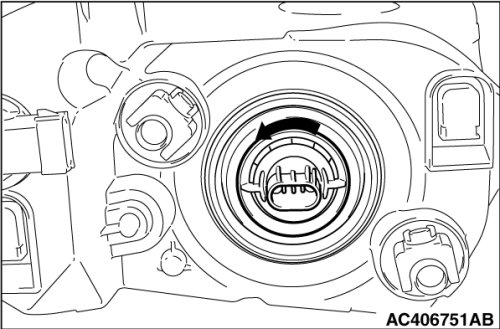

2. Remove the headlight bulb by turning it counterclockwise as shown.
3. Install the headlight bulb to the headlight by pushing it in and twisting it clockwise.

FRONT TURN-SIGNAL, PARKING AND SIDE-MARKER LIGHT BULB

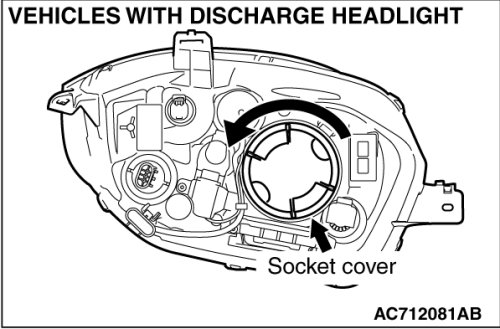

1. Remove the socket cover by turning it to create sufficient clearance for servicing. [Vehicles with discharge headlight]
2. Disconnect the front turn-signal, parking and side-marker light connector.

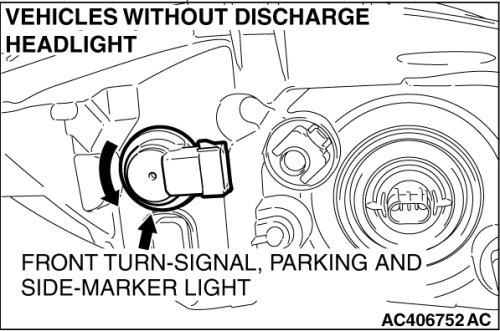

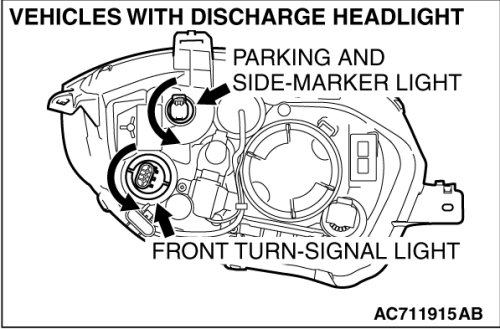

3. Remove the socket with the bulb by turning it counterclockwise as shown.
4. Pull out the bulb from the socket, and then replace the bulb.
5. Install the socket to the headlight by pushing it in and twisting it clockwise.
