Inspection




INSPECTION

CAMSHAFT

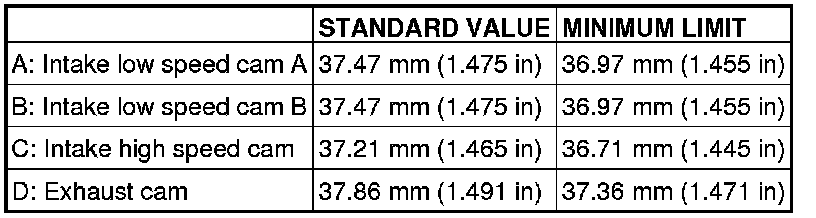

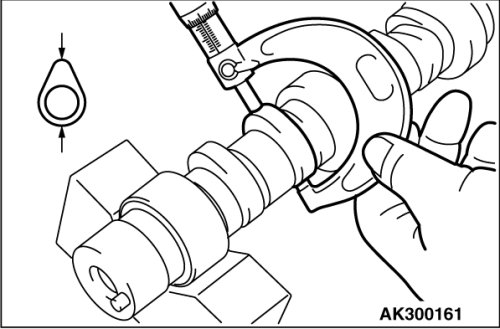

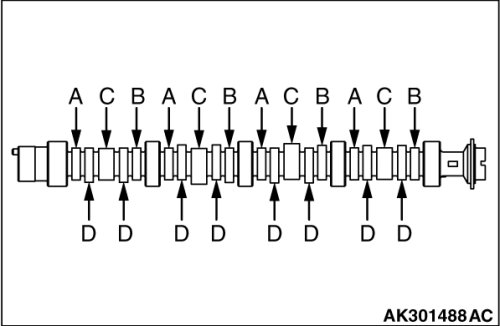

Measure the cam height. If it is below the limit, replace the camshaft.
