Home
>>
Mitsubishi
>>
2012
>>
Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Seat Belt Warning Tone Alarm
Seat Belt Warning Tone Alarm

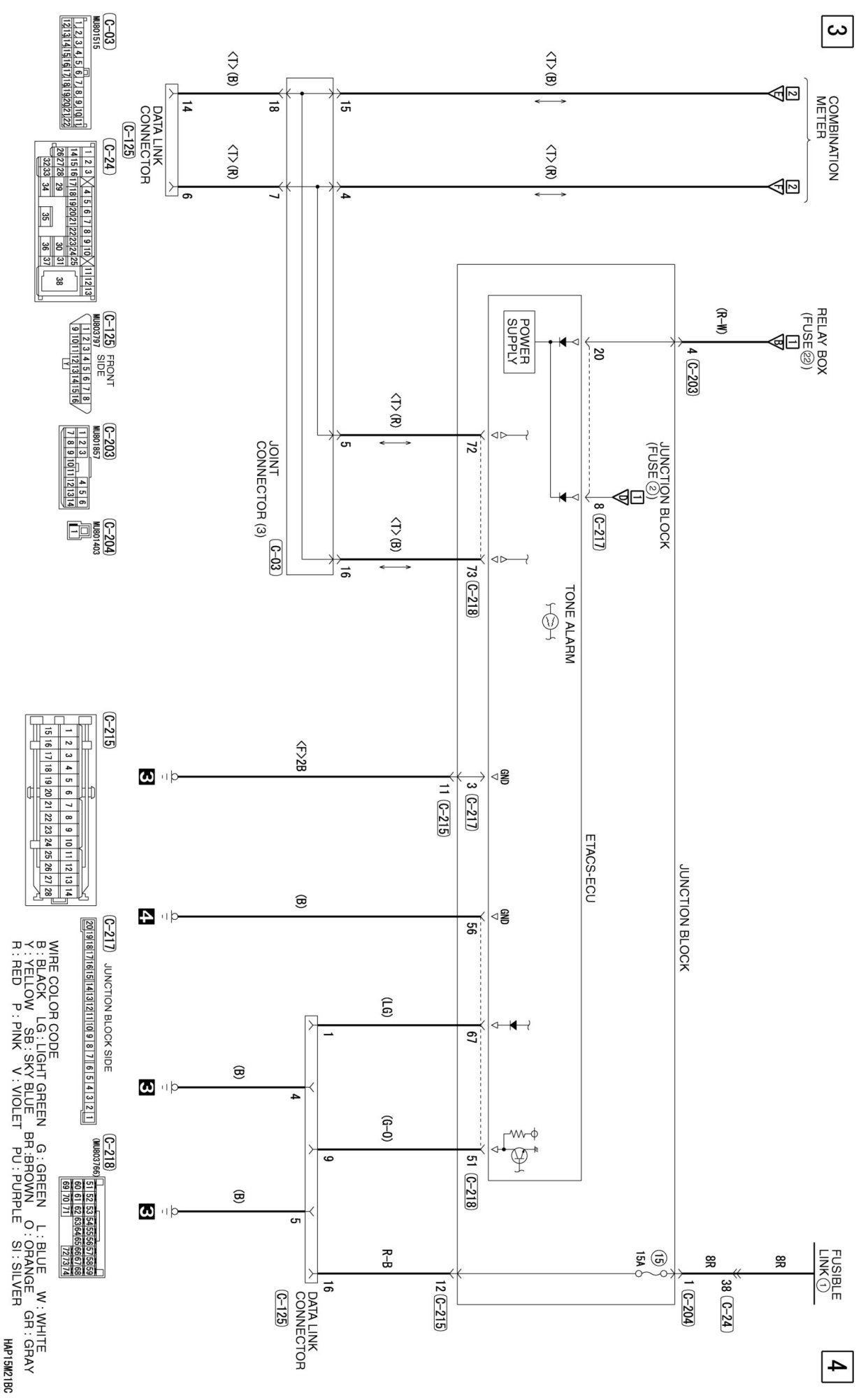

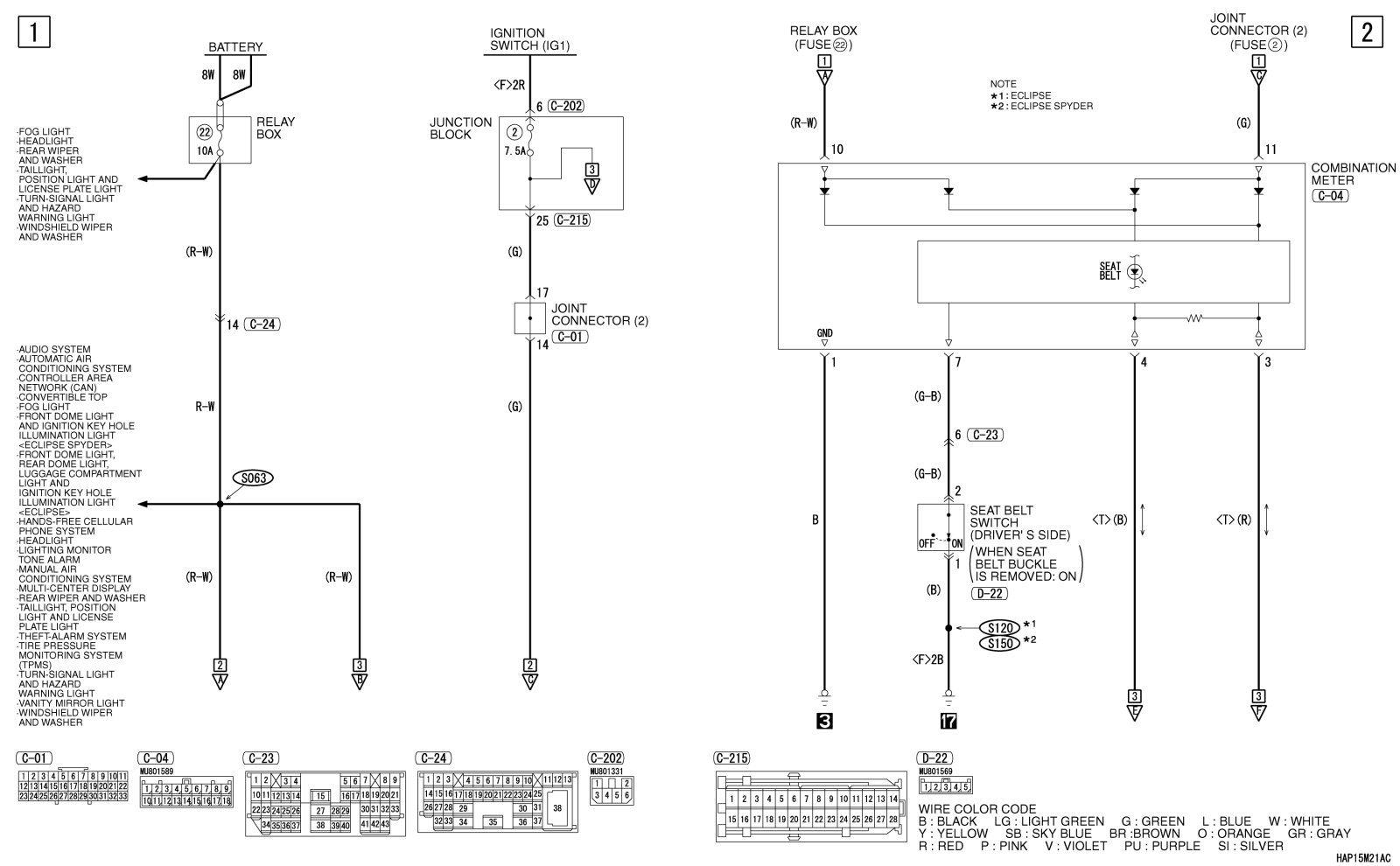

SEAT BELT WARNING TONE ALARM
