Door Ajar Warning Tone Alarm [M/T]
Door Ajar Warning Tone Alarm [M/T]

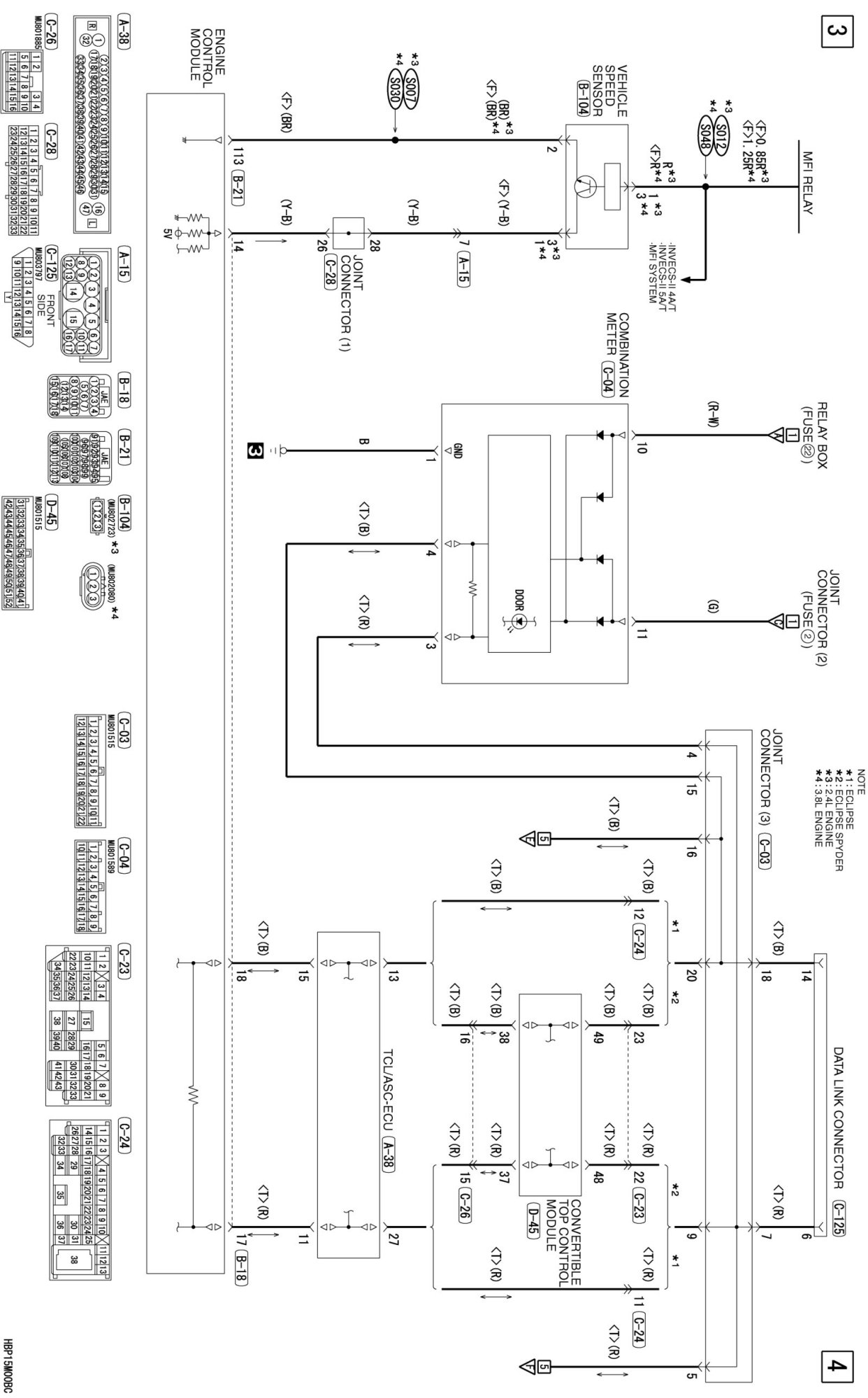

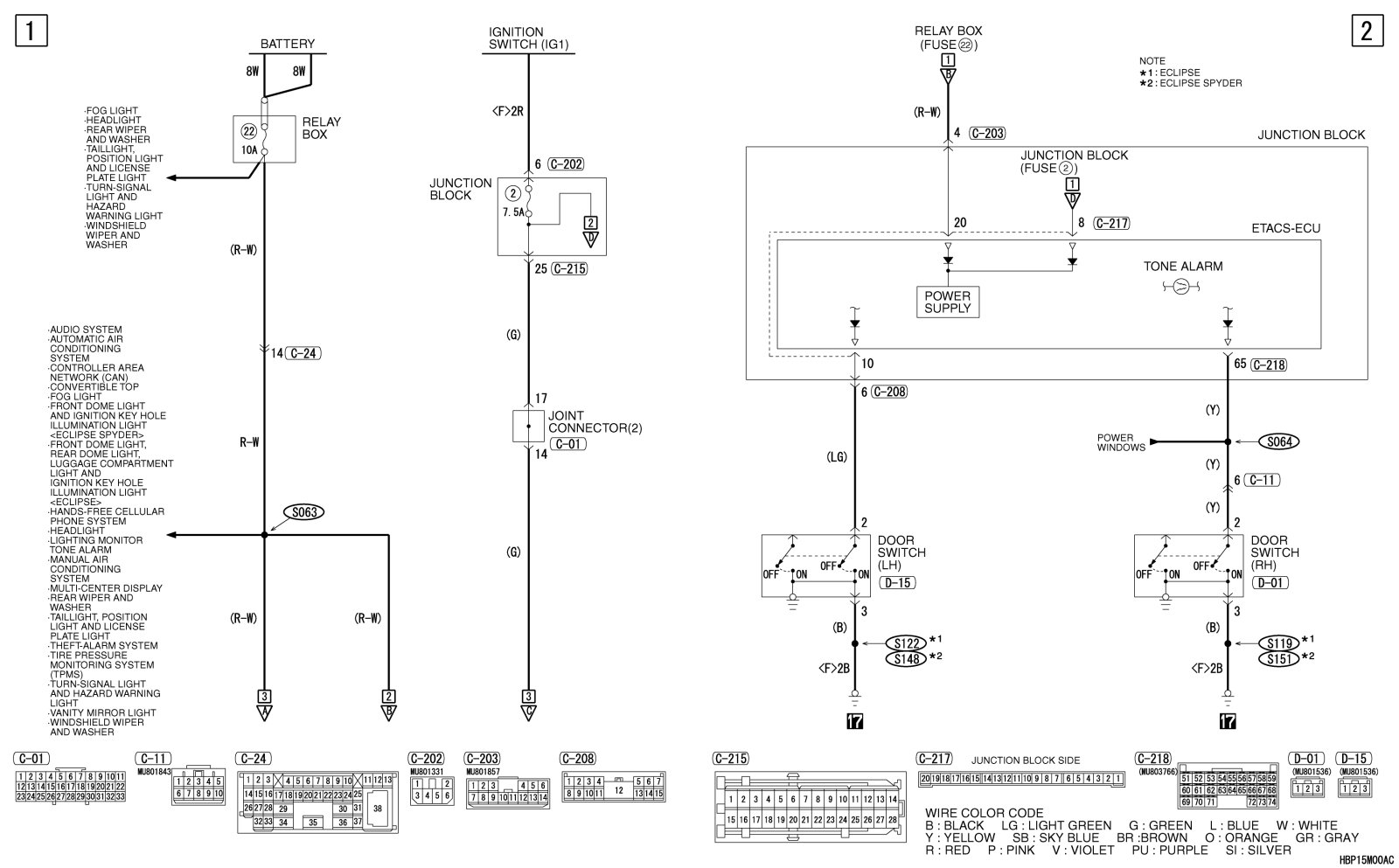

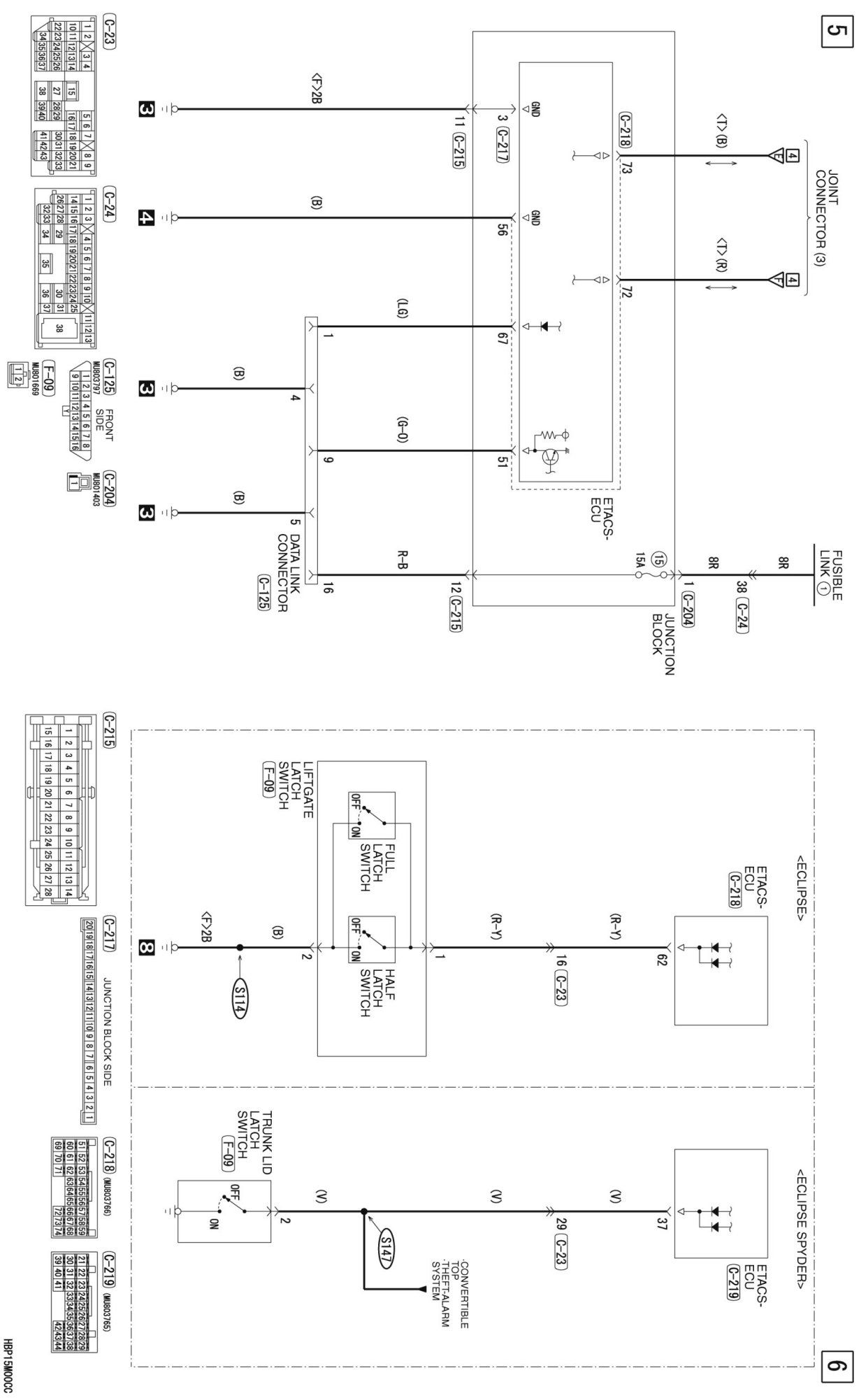

DOOR AJAR WARNING TONE ALARM [M/T]
