FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2012
>>
Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Fog/Driving Lamp
>>
Vehicles With Discharge Type Headlight
Vehicles With Discharge Type Headlight

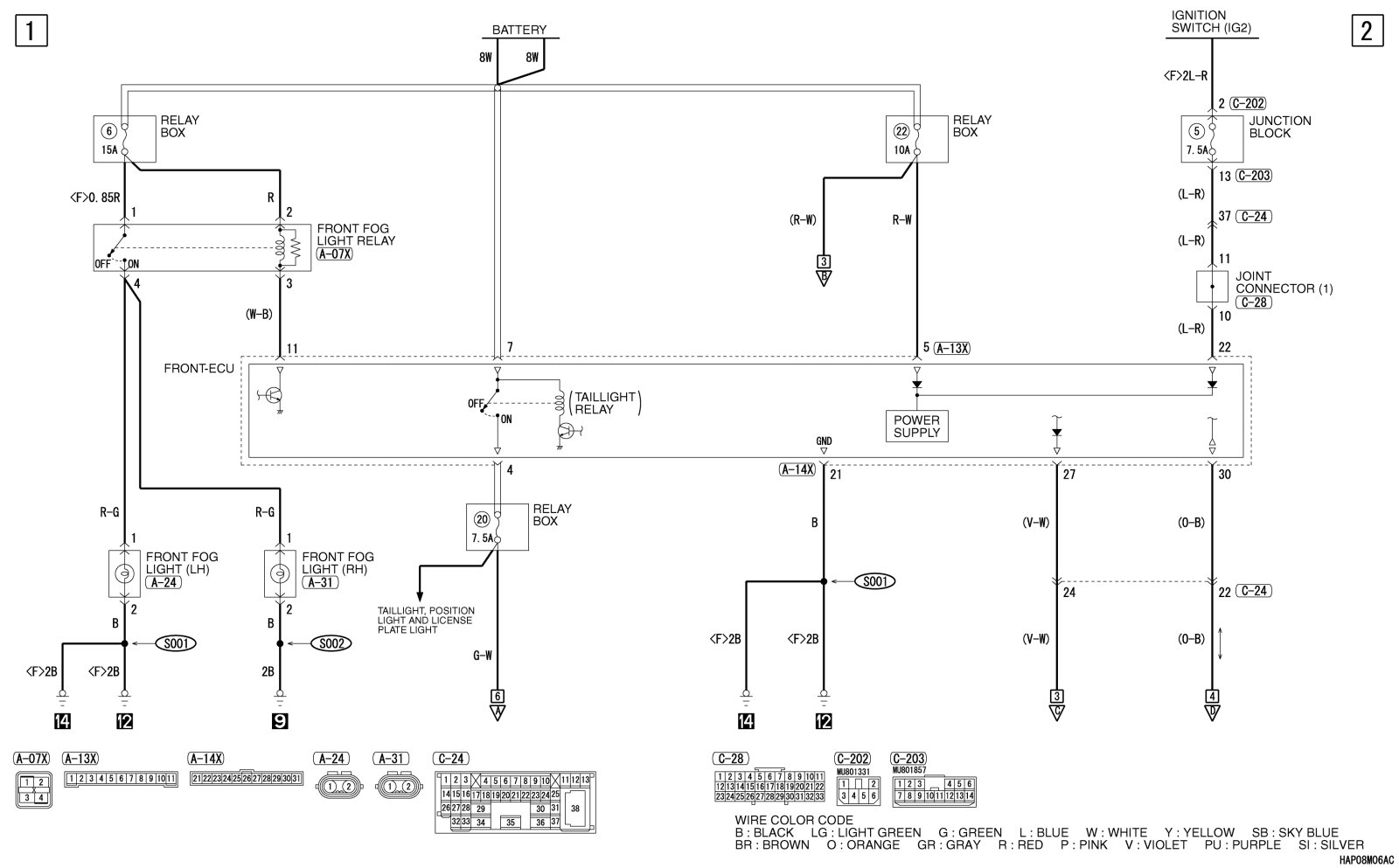

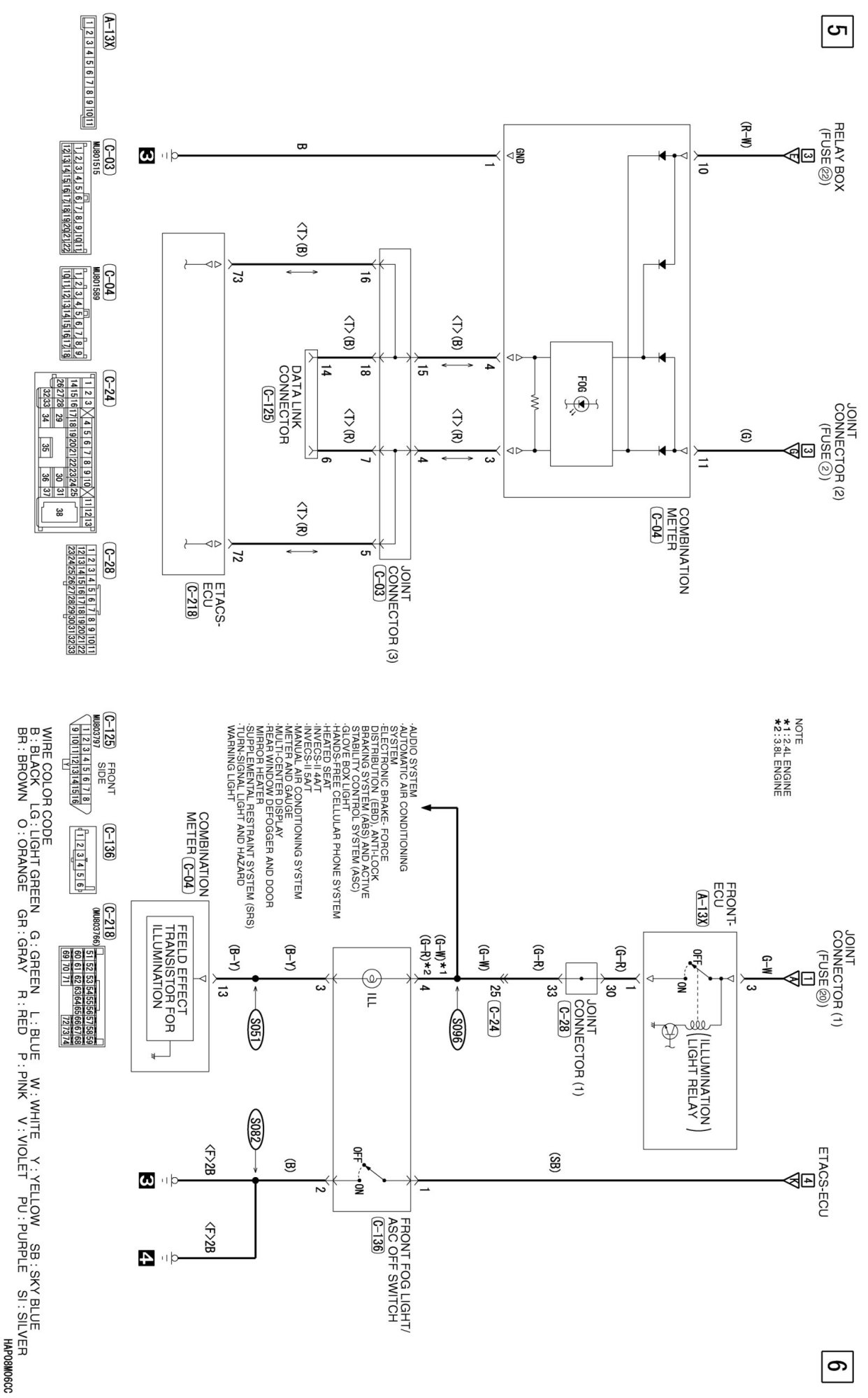

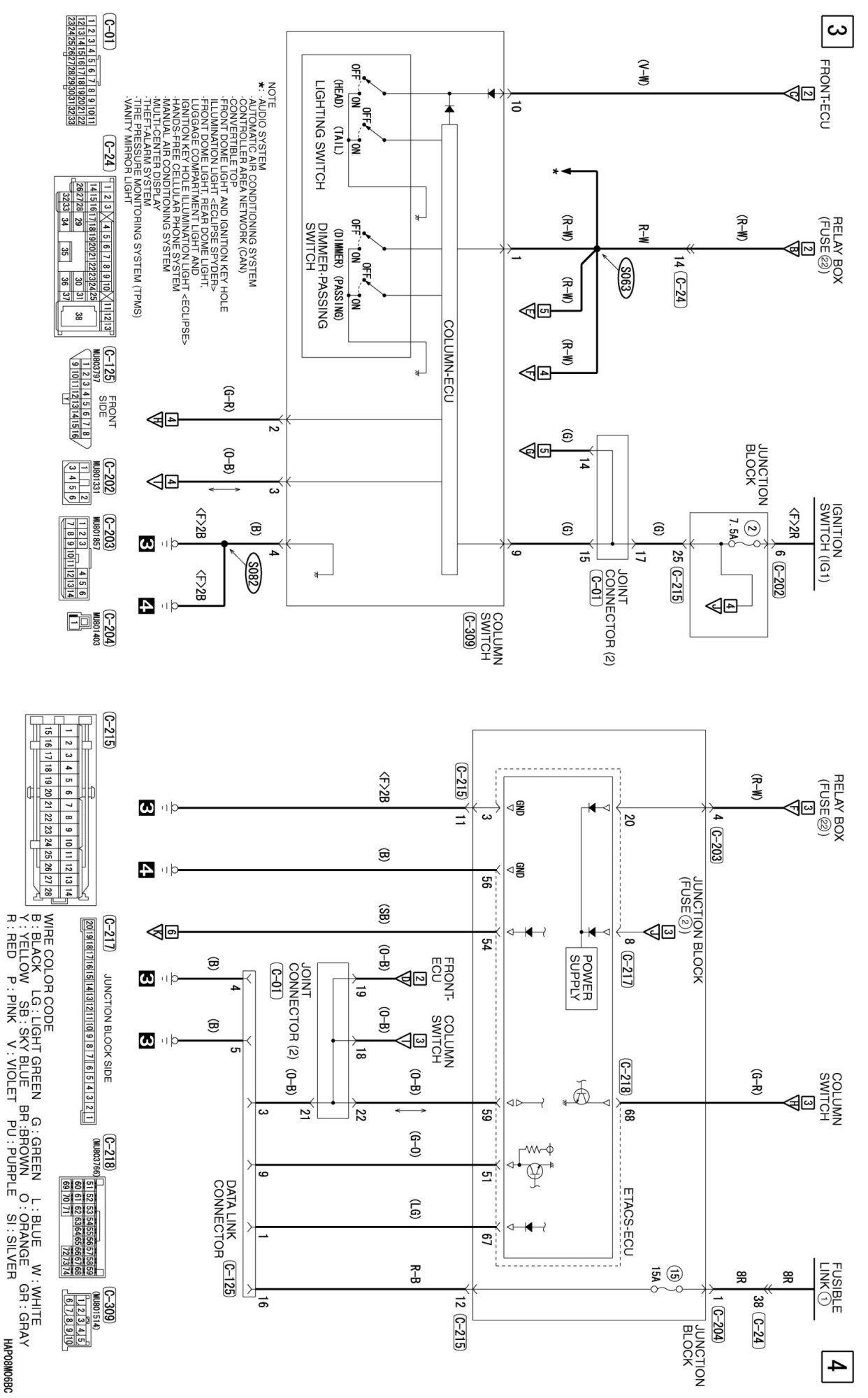

FOG LIGHT [VEHICLES WITH DISCHARGE TYPE HEADLIGHT]
