Home >> Mitsubishi >> 2012 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control >> Auto-Cruise Control System [A/T]

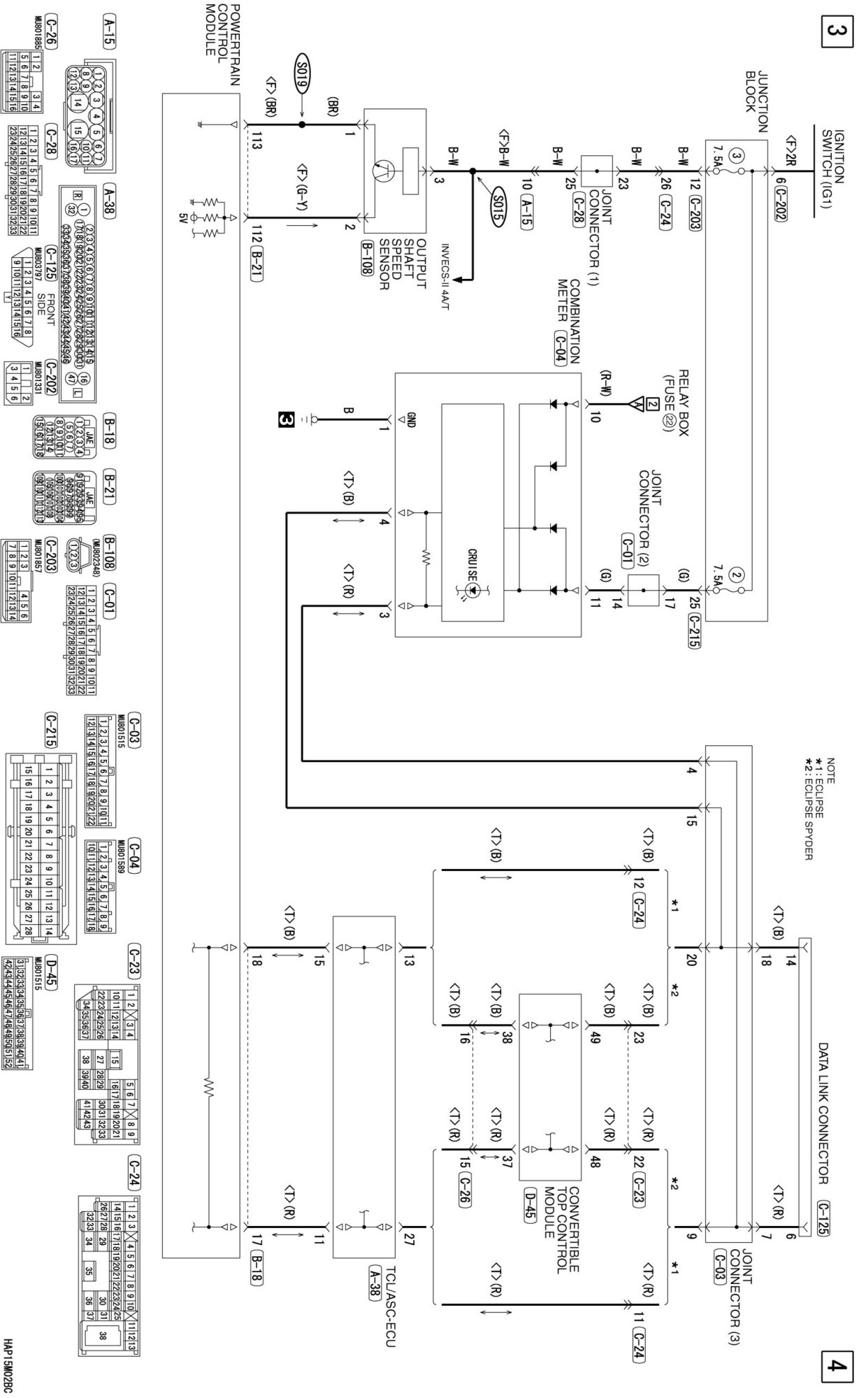

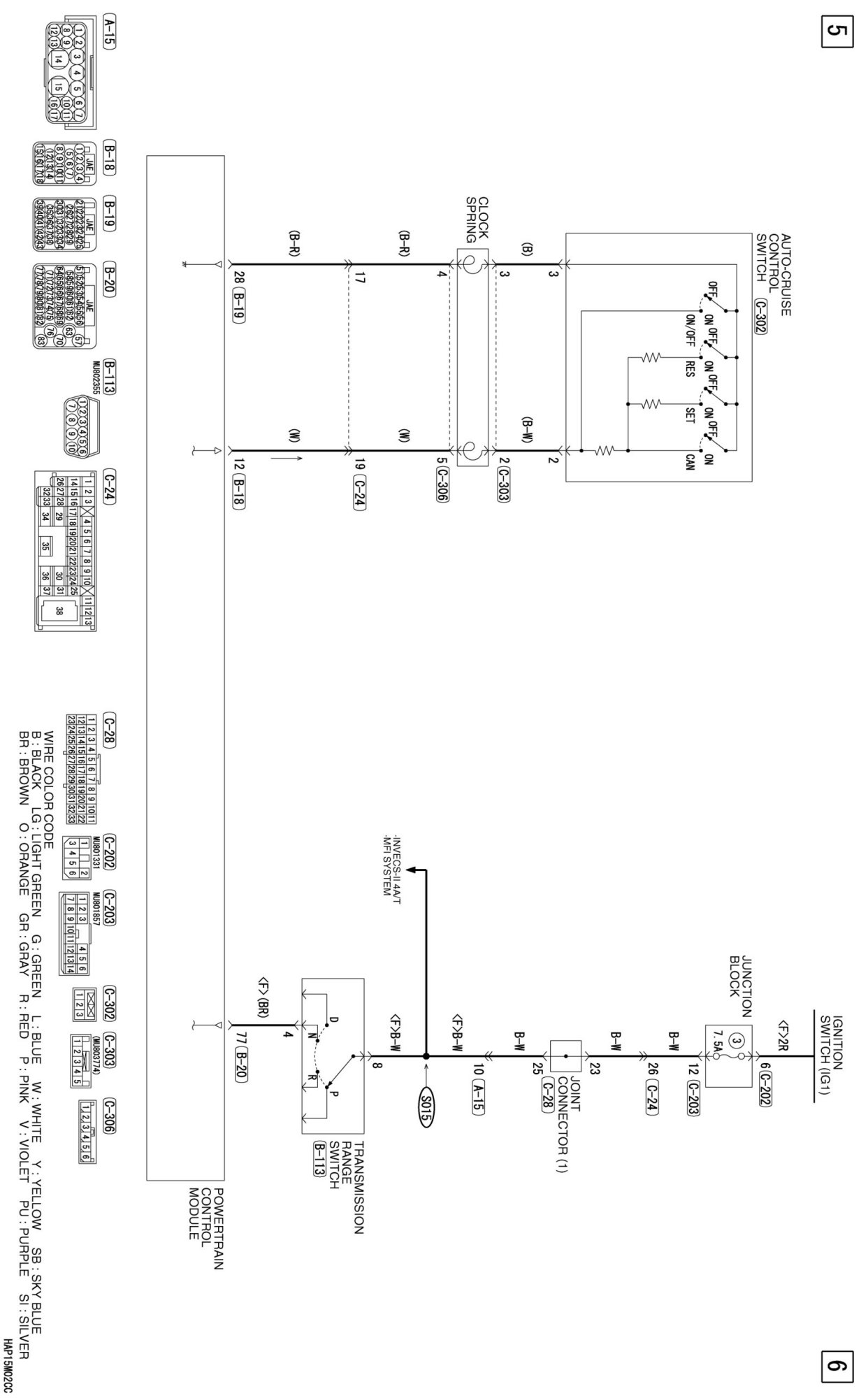

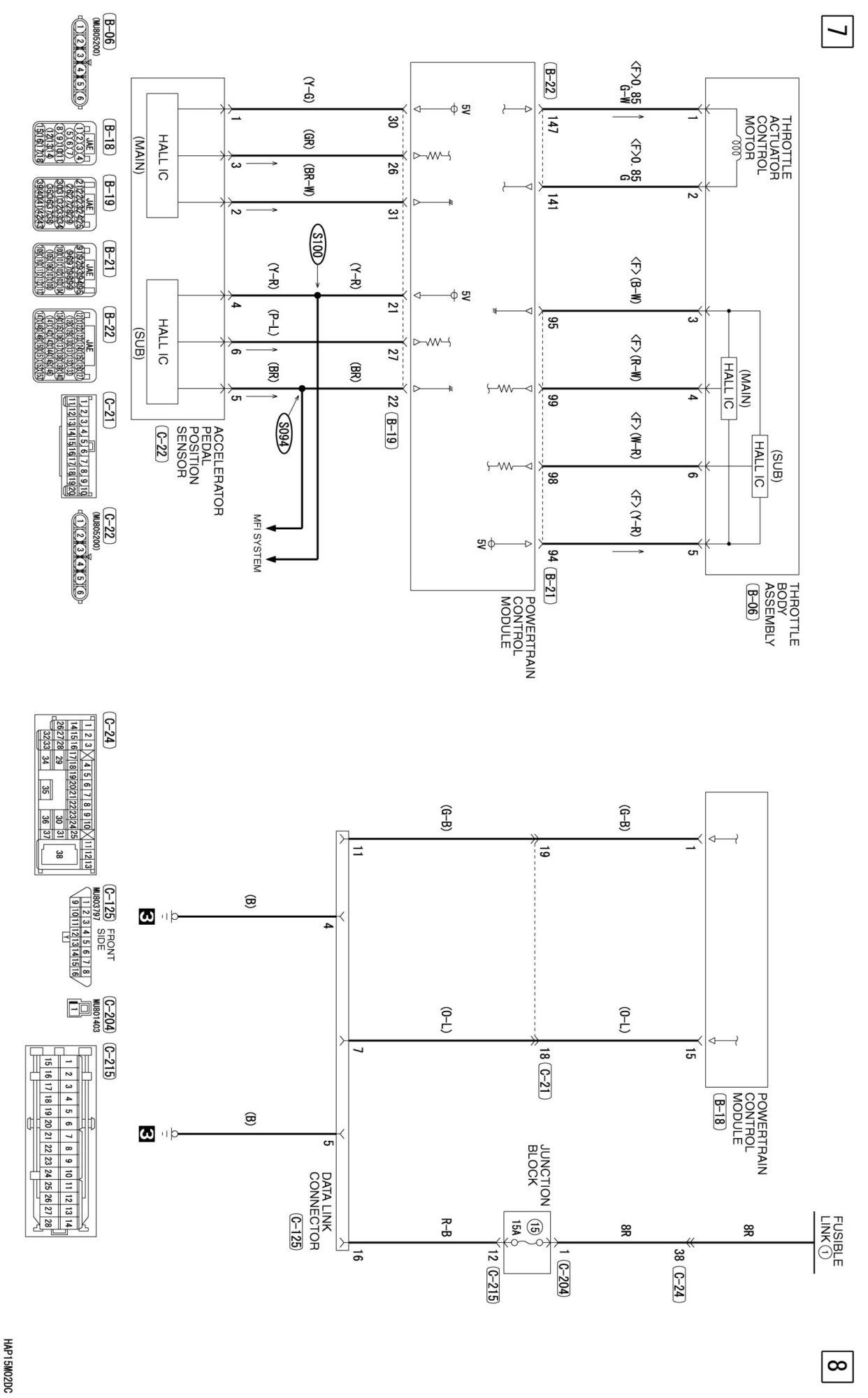

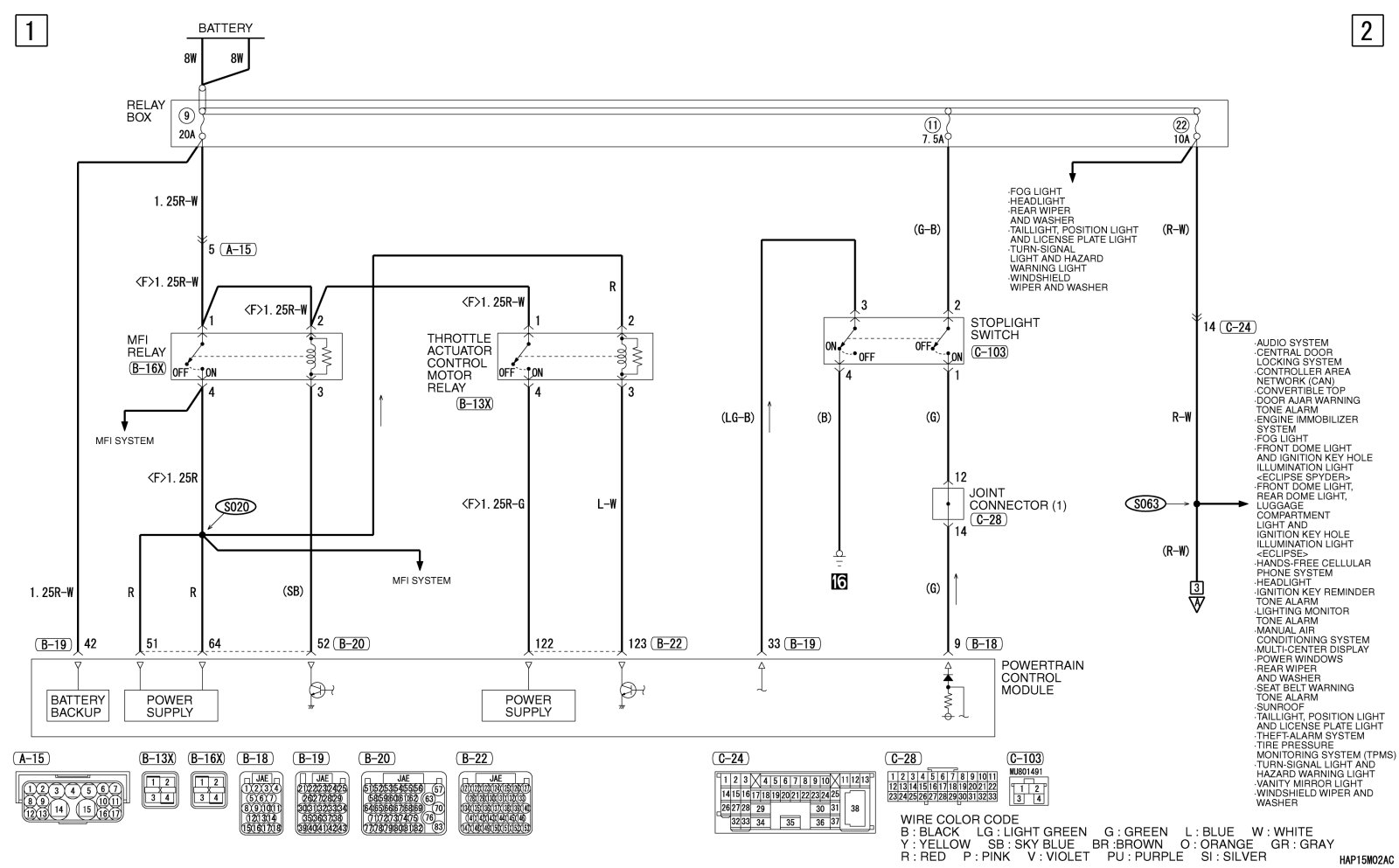

Auto-Cruise Control System [A/T]




AUTO-CRUISE CONTROL SYSTEM [2.4L ENGINE-A/T]
