Mitsubishi
>>
2012
>>
Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
>>

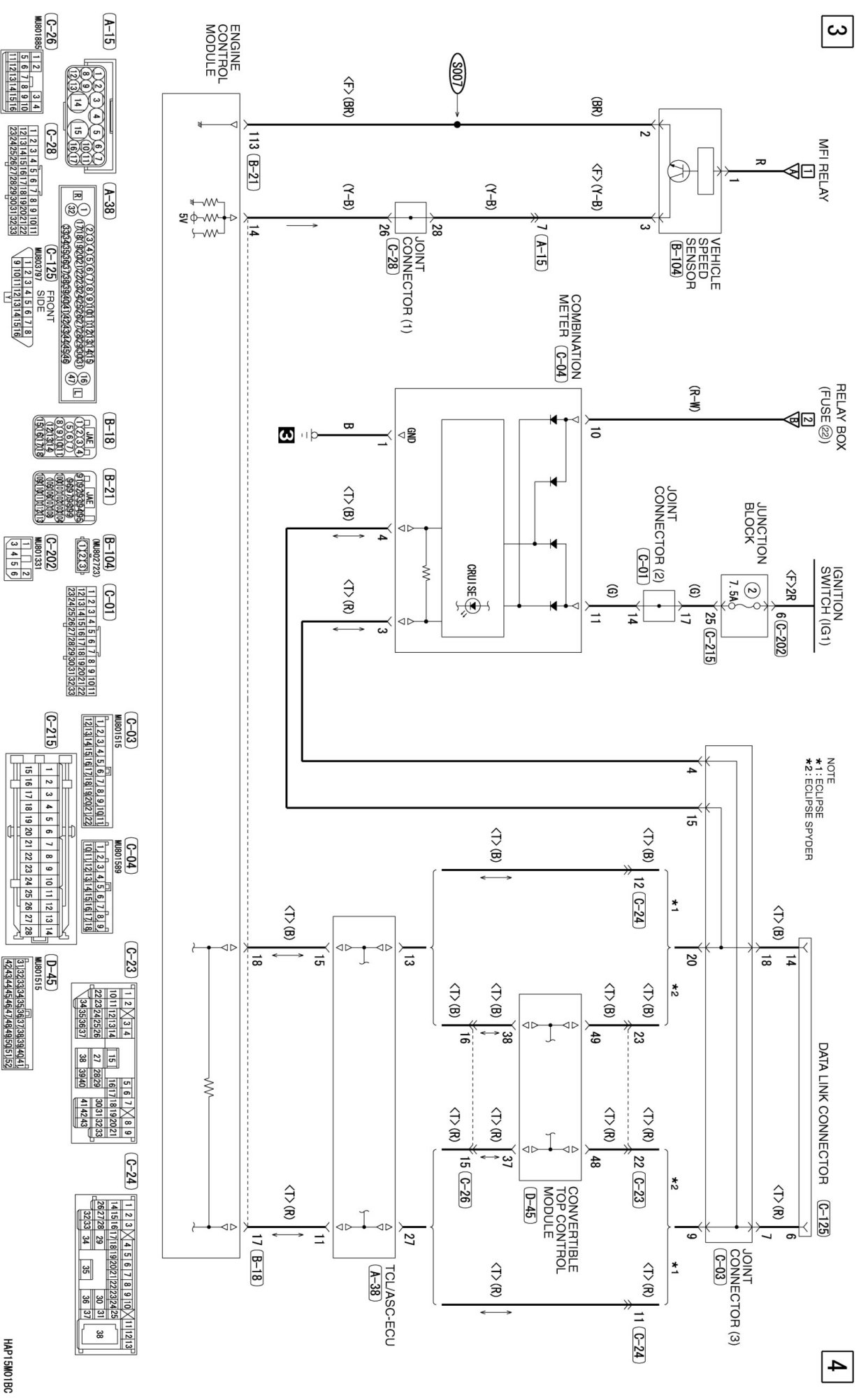

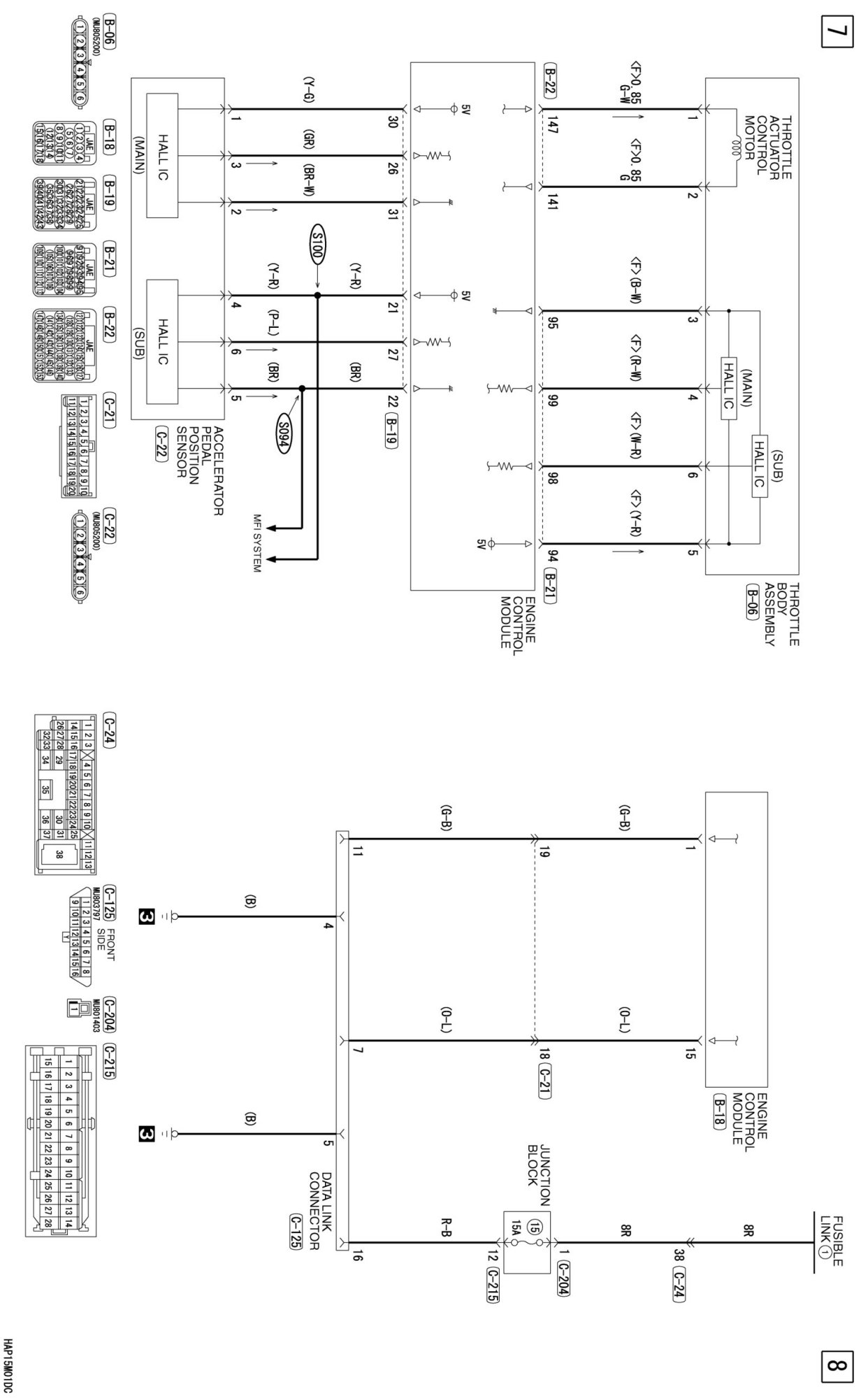

Auto-Cruise Control System [M/T]
Auto-Cruise Control System [M/T]
AUTO-
CRUISE CONTROL
SYSTEM [2.4L ENGINE-M/T]
