Vacuum Brake Booster: Service and Repair

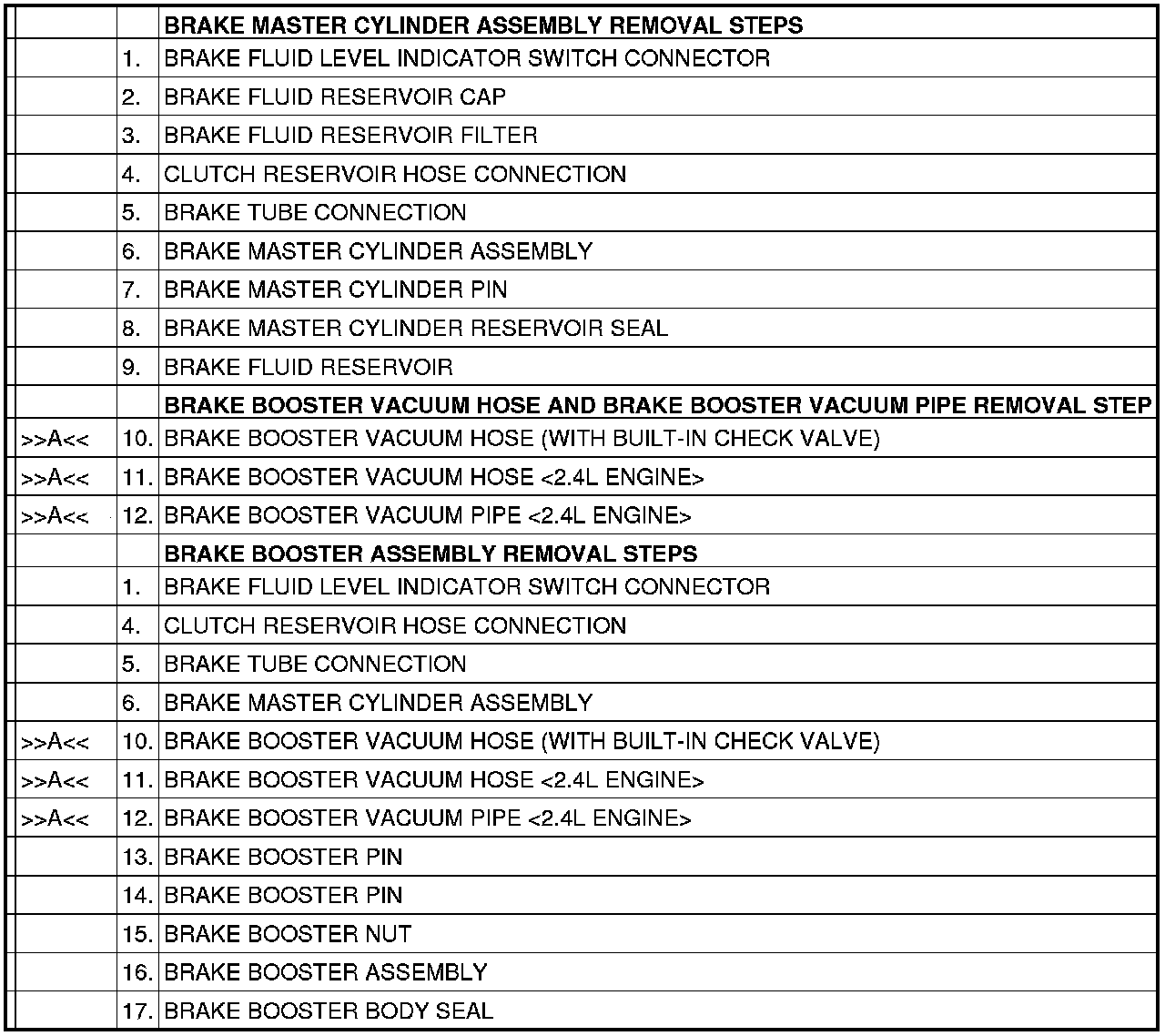

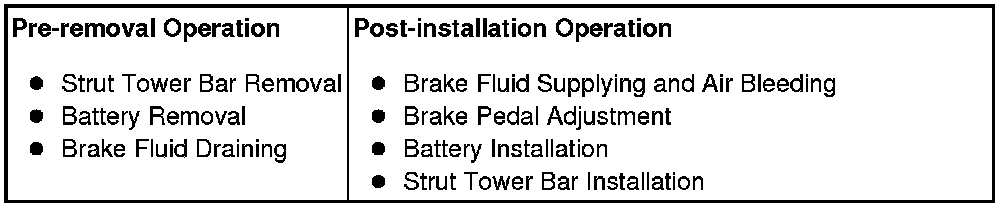

REMOVAL AND INSTALLATION
CAUTION:
Do not touch the push rod in the brake booster because it is already adjusted.
INSTALLATION SERVICE POINT

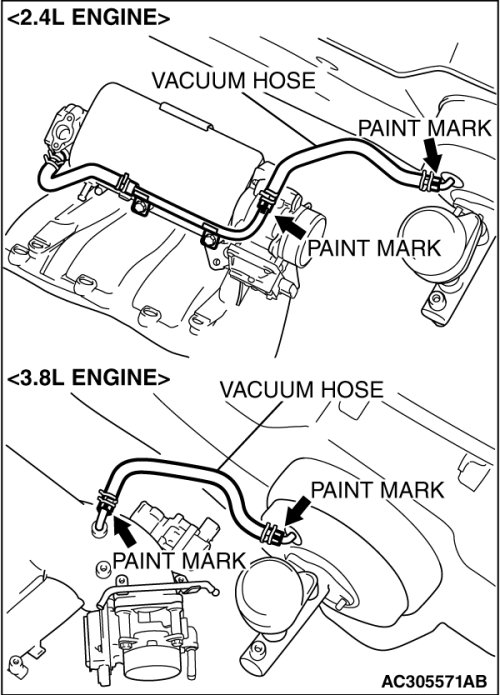

]]A[[ BRAKE BOOSTER VACUUM HOSE CONNECTION
Insert vacuum hose with its paint mark facing upward.
