Brake Pad: Testing and Inspection

DISC BRAKE PADS, ROTORS (INSPECT FOR WEAR)





Check for fluid contamination and wear. Replace the complete set of pads if any one pad is defective.

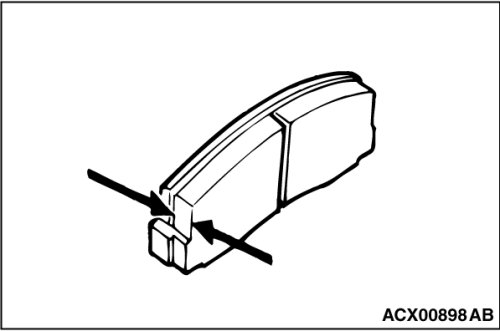

Thickness of lining
Limit: 2.0 mm (0.08 inch)

CAUTION:
The pads for the right and left wheels should be replaced at the same time. Never split or intermix brake pad sets. All four pads must be replaced as a complete set.
