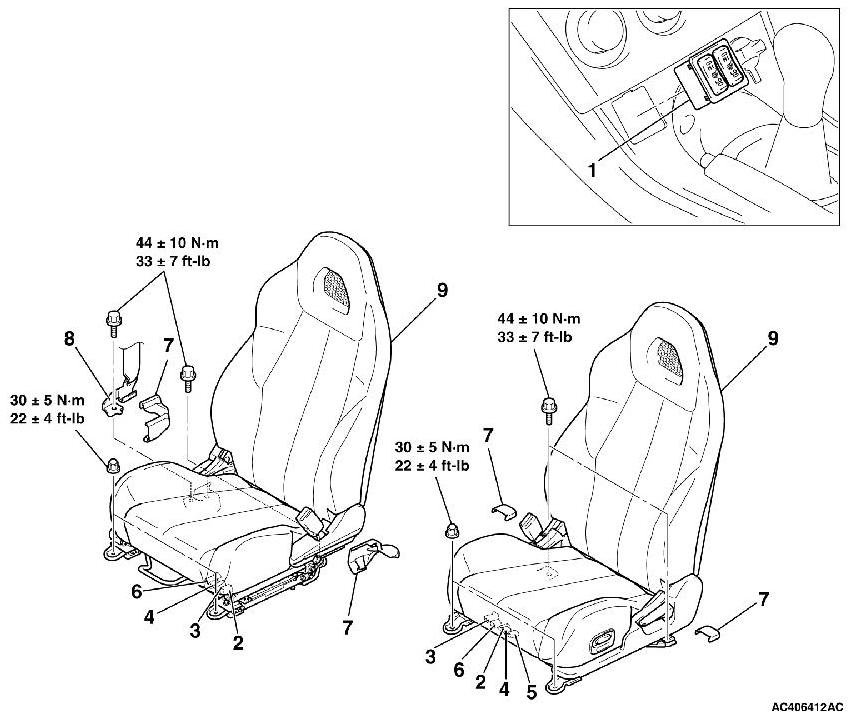

Front Seat Assembly Removal and Installation

REMOVAL AND INSTALLATION

WARNING:

- Before removing the front seat assembly, refer to Service Precautions Service Precautions and Air Bag Module and Clock Spring Service and Repair .
- When removing and installing the front passenger seat, be sure to carry out accuracy check of occupant classification sensor after the seat has been installed in the vehicle. Accuracy Check of Occupant Classification Sensor .)

CAUTION:
Do not impact the seat. If any impact is applied to the seat, the occupant classification sensor transmitting error may occur.













INSTALLATION SERVICE POINT

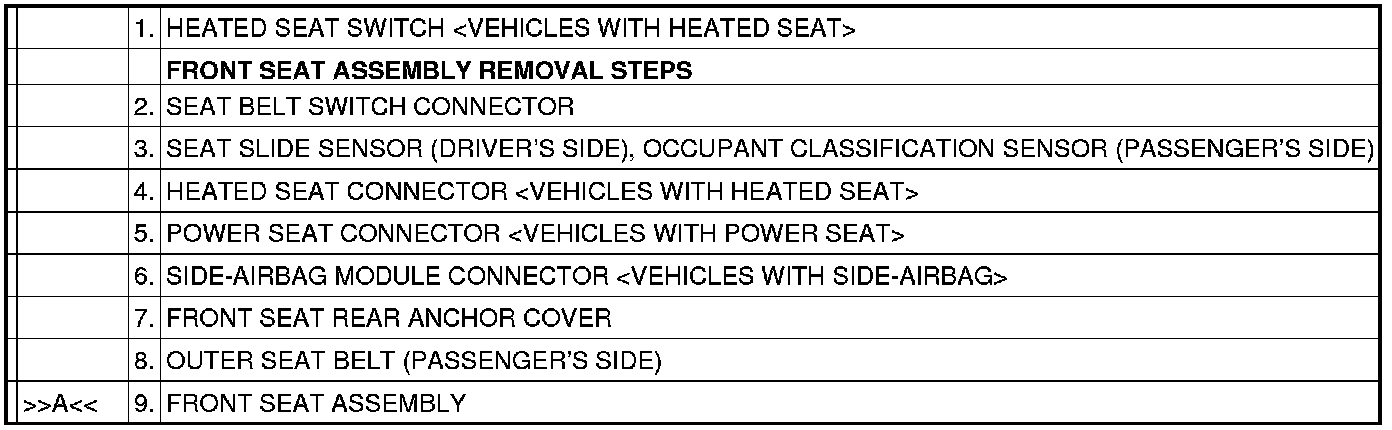

]]A[[ FRONT SEAT ASSEMBLY INSTALLATION

CAUTION:
Install the front passenger's seat assembly before installing the outer seat belt.

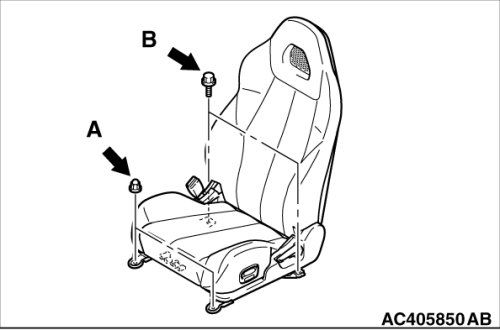

1. Temporarily tighten the nuts in mounting locations shown in the illustration with no weight on the front seat cushion and check the operation of the seat slide.
2. Temporarily tighten the bolts in mounting locations shown in the illustration with no weight on the front seat cushion.
3. Tighten the nuts and bolts in all mounting locations to the specified torque.
Tightening torque:
A: 30± 5Nm (22± 4 ft-lb)
B: 44± 10Nm (33± 7 ft-lb)
