Sunroof Operation Check

SUNROOF OPERATION CHECK

CAUTION:
Check that the following items are normal before carrying out this operation check.

- Installation condition of the sunroof assembly
- Installation condition, deformation and contamination of the sunroof drive cable
- Installation of sunroof lid glass

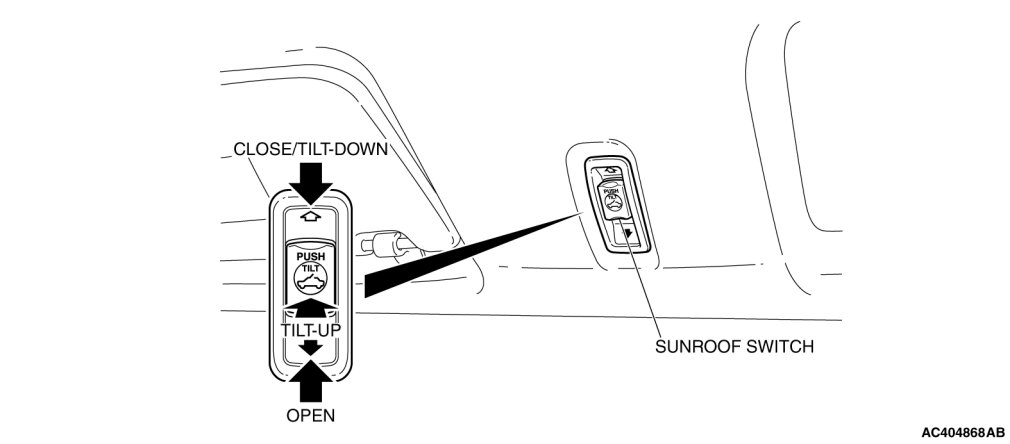

- Sunroof switch and sunroof motor assembly

Check that the following items. If faulty, replace the sunroof motor assembly.

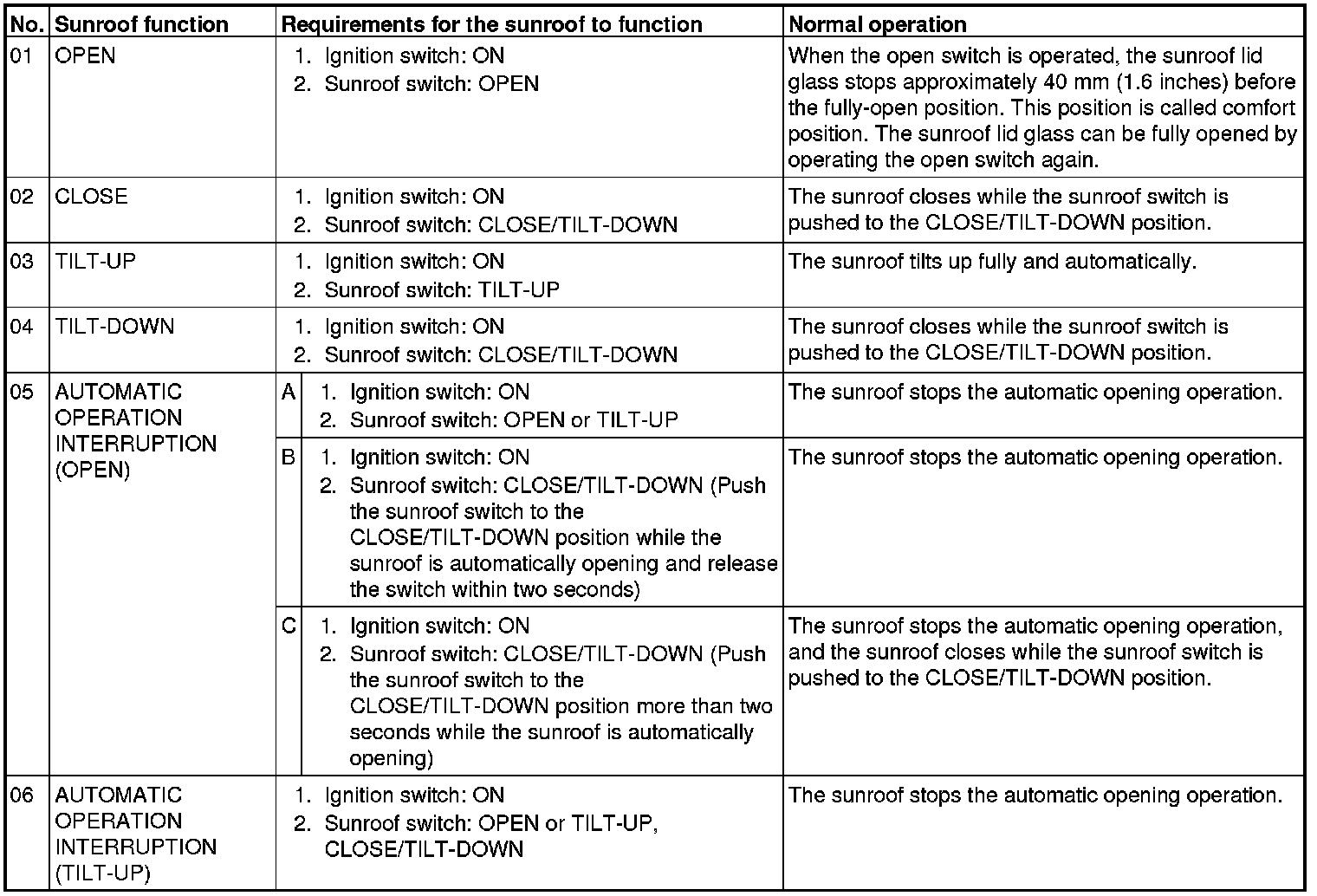

BASIC OPERATION





SUNROOF TIMER MECHANISM

In cases except the following, the basic operation and jam preventing mechanism will be maintained for thirty seconds after the ignition switch is turned to the "LOCK" (OFF) position. (Sunroof timer function)

- If you open a door within that period (i.e. a door switch is on), the sunroof timer function will be cancelled immediately.
- If you turn the ignition switch to the "LOCK" (OFF) position while the timer is working, the sunroof will continue moving until it closes fully, regardless of the time-out period.
