Removal and Replacement

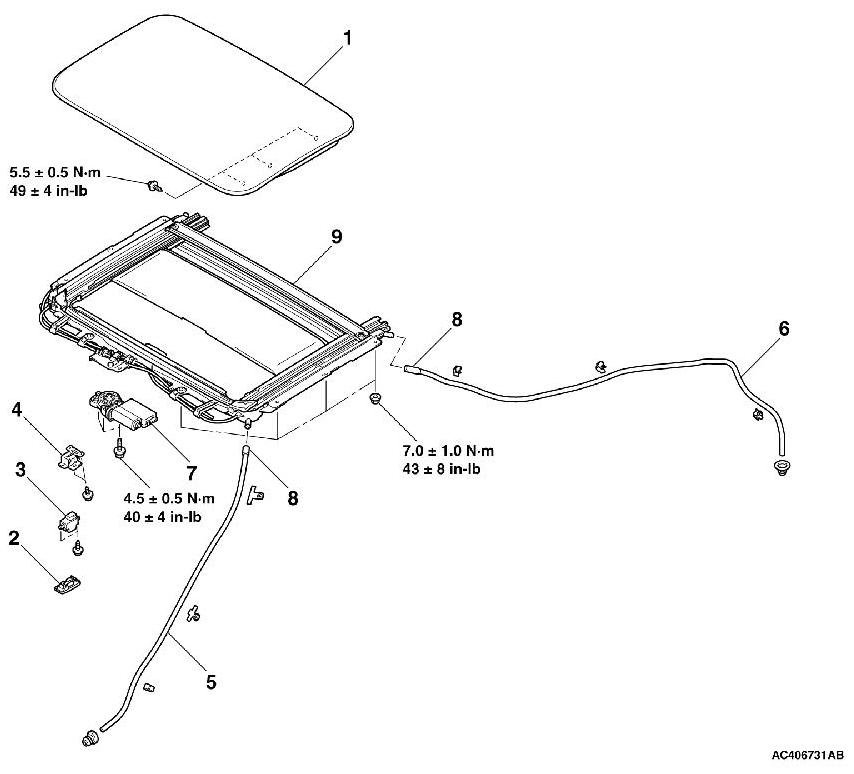

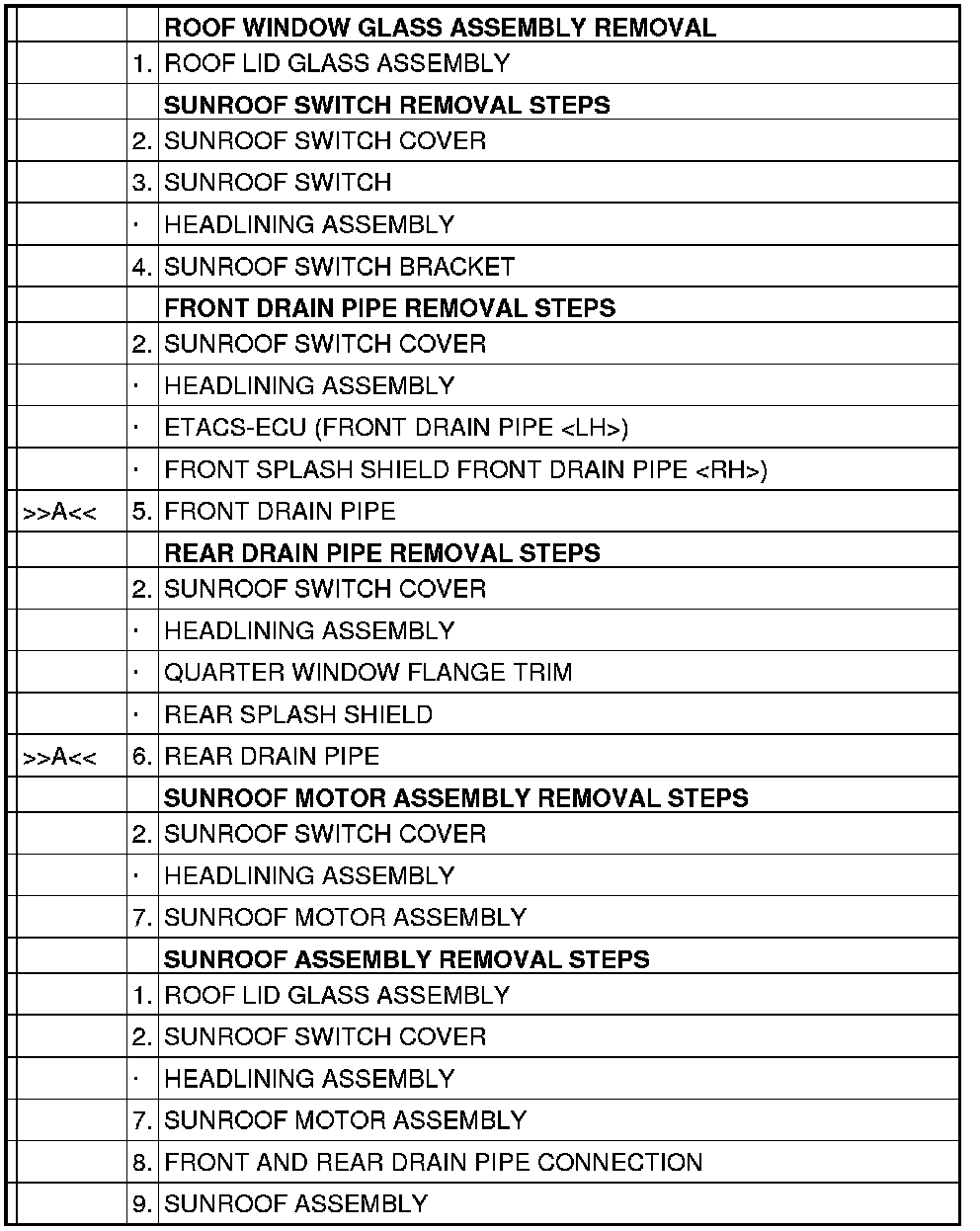

REMOVAL AND INSTALLATION













Required Special Tool:

- MB991223: Harness set

INSTALLATION SERVICE POINT

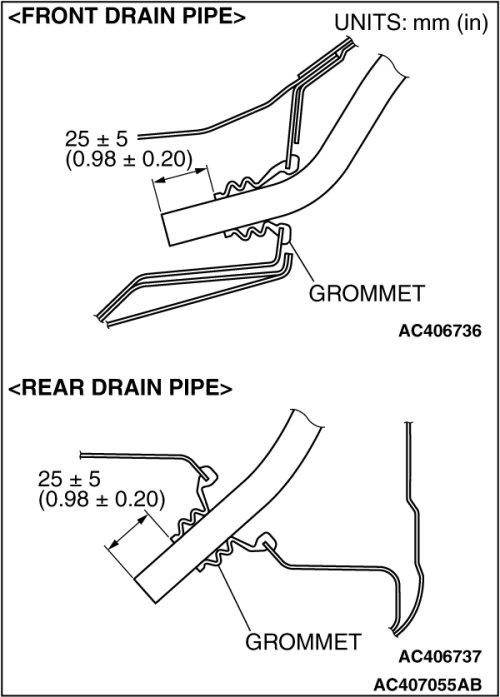

]]A[[ REAR DRAIN PIPE/FRONT DRAIN PIPE INSTALLATION





Install the grommet, and then position the drain pipe so that it protrudes from the grommet as shown in the illustration.
