Adjustment of Liftgate Latch

ADJUSTMENT OF LIFTGATE LATCH

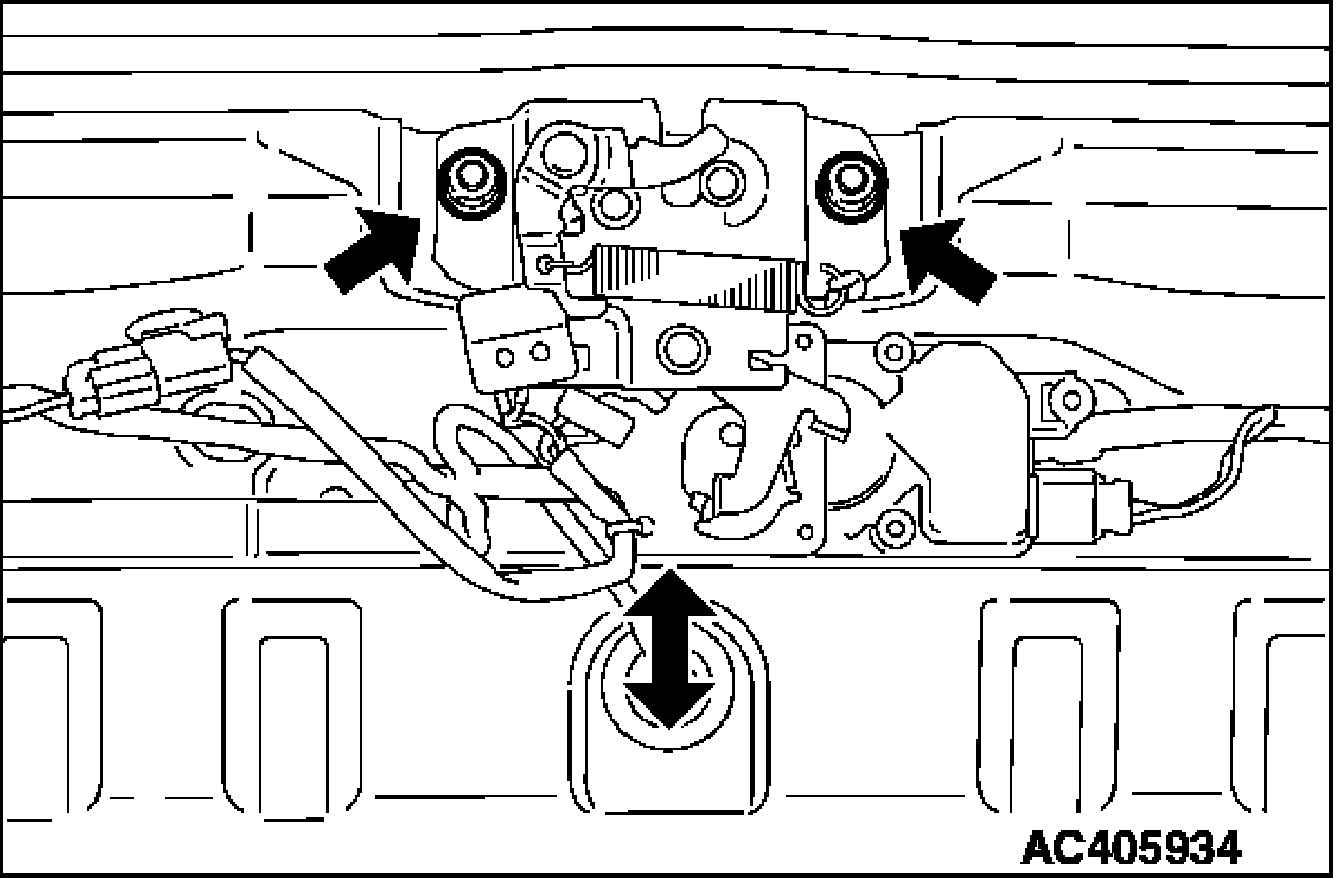

After checking the liftgate release cable for proper routing, loosen the liftgate latch mounting bolts. Change the position of the liftgate latch relative to the liftgate striker so that liftgate locking and unlocking effort is correct.

Liftgate latch mounting bolt tightening torque: 22 � 4 N�m (16 � 3 ft-lb)
