Doors: Service and Repair

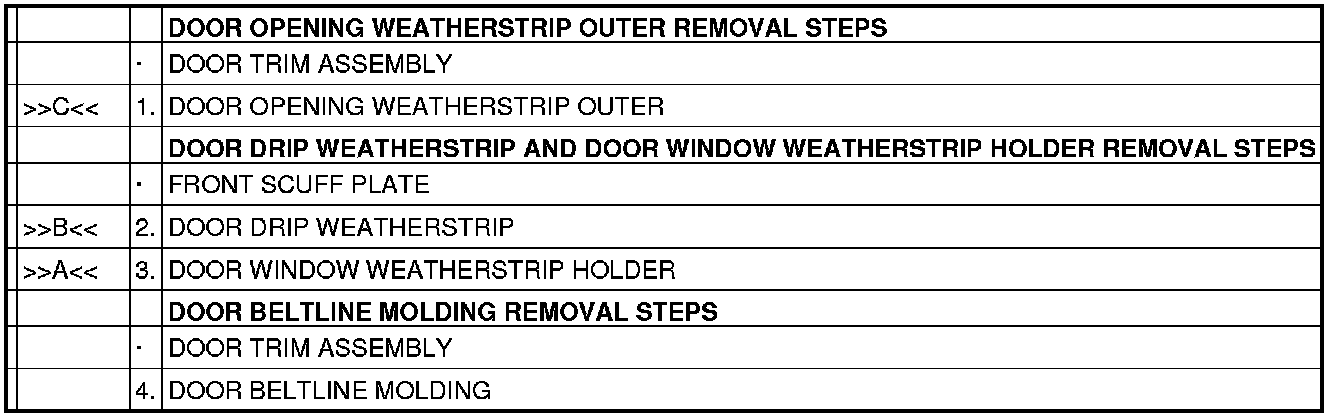

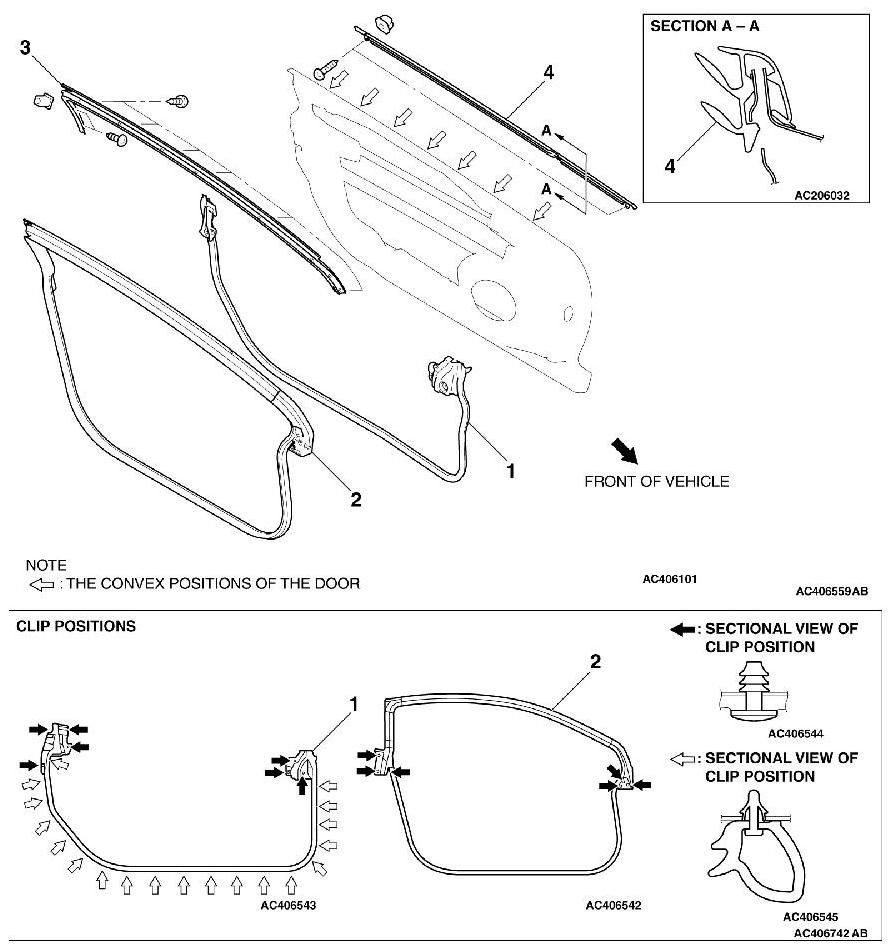

REMOVAL AND INSTALLATION









INSTALLATION SERVICE POINTS

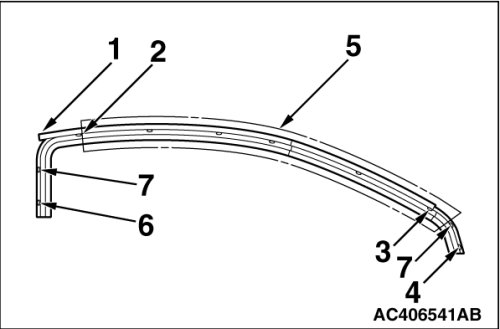

]]A[[ DOOR WINDOW WEATHERSTRIP HOLDER INSTALLATION





Install the door window weatherstrip holder in the sequence shown.

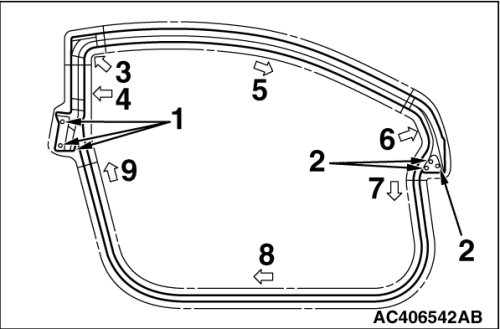

]]B[[ DOOR DRIP WEATHERSTRIP INSTALLATION





Install the door drip weatherstrip in the sequence shown. Apply a force in the arrowed direction shown and install the door drip weatherstrip.

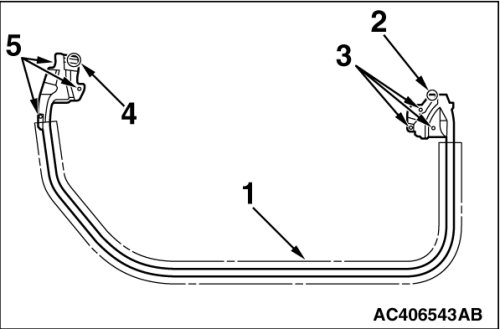

]]C[[ DOOR OPENING WEATHERSTRIP OUTER INSTALLATION





Install the door opening weatherstrip outer in the sequence shown.
