Inspection Procedure G-6

INSPECTION PROCEDURE G-6: Windshield Wiper and Washer: The windshield intermittent wiper interval is not changed according to the vehicle speed.

NOTE:
This troubleshooting procedure requires use of scan tool MB991958 and SWS monitor kit MB991813.
For details on how to use the SWS monitor, refer to "How to use SWS monitor How to Use SWS Monitor."






TECHNICAL DESCRIPTION (COMMENT)

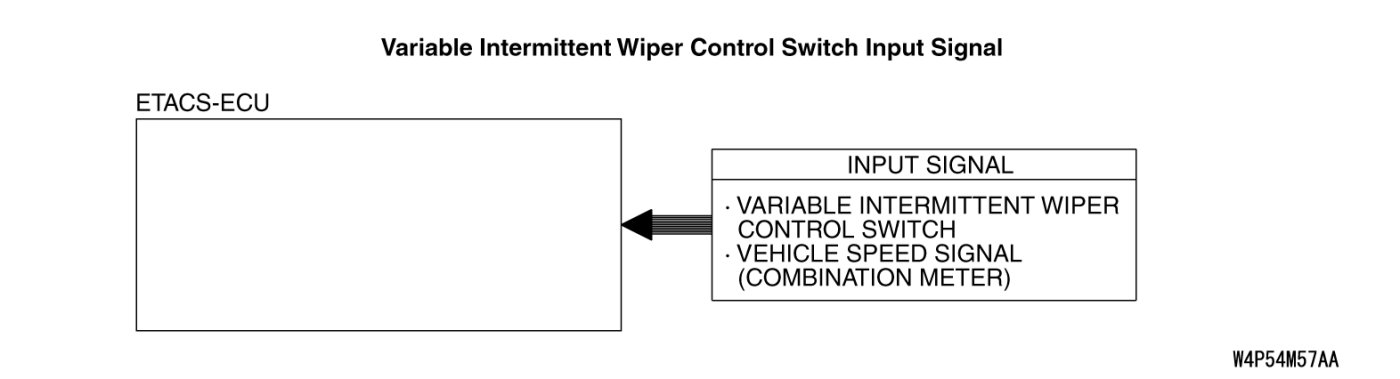

If the windshield intermittent wiper interval does not change according to the vehicle speed, the ETACS-ECU or the front-ECU may be defective.

TROUBLESHOOTING HINTS

- The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector
- The combination meter may be defective
- The ETACS-ECU may be defective
- The front-ECU may be defective

DIAGNOSIS

Required Special Tools:

- MB991223: Harness Set
- MB992006: Extra Fine Probe
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A
- MB991813: SWS Monitor Kit
- MB991806: SWS Monitor Cartridge
- MB991812: SWS Monitor Harness (For Column-ECU)
- MB991822: Probe Harness

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.





(1)
CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

Connect scan tool MB991958.Refer to "How to connect SWS monitor How to Connect SWS Monitor."
(2)Turn the ignition switch to the "ON" position.
(3)Diagnose the CAN bus line.
(4)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is the CAN bus line found to be normal?

YES Go to Step 2.

NO Repair the CAN bus line CAN Bus Diagnostics Chart).

STEP 2. Using scan tool MB991958, read the combination meter diagnostic trouble code.

Check whether the combination meter-related DTC is set.





(1)Turn the ignition switch to the "ON" position.
(2)Check whether the combination meter-related DTC is set.
(3)Turn the ignition switch to the "LOCK" (OFF) position.

Q. Is the DTC set?

YES Diagnose the combination meter. Refer to Combination Meter.

NO Go to Step 3.

STEP 3. Check the input signal by using "FUNCTION DIAG." menu of the SWS monitor.

Check the input signals from the following switches:

- Ignition switch: ACC
- Windshield wiper switch: INT
- Intermittent wiper control: slow side

CAUTION:
Connect special tool MB991910 before connecting special tool MB991812. Be sure to connect special tool MB991806 after turning on special tool MB991824.









(1)Operate the scan tool MB991958 according to the procedure below to display "F.WIPER INT."

.....Select "System select."

.....Select "SWS."

.....Select "SWS MONITOR."

.....Select "Function Diag."

.....Select "WIPER."

.....Select "F.WIPER INT."
(2)Check that normal conditions are displayed for the items described in the table below.
NOTE:
Also check that the wiper interval changes smoothly when the vehicle is accelerated from 0 km/h (0 mph) to 60 km/h (37.5 mph).





Q. Does the value change within the normal range when the variable intermittent wiper control switch is rotated?

YES Replace the front-ECU. The windshield intermittent wiper interval should change according to the vehicle speed.

NO Replace the ETACS-ECU. When the ETACS-ECU is replaced, register the encrypted code. Encrypted Code Registration Criteria Table.
The windshield intermittent wiper interval should change according to the vehicle speed.
