Inspection Procedure O-2

INSPECTION PROCEDURE O-2: Theft-alarm System: The theft-alarm system is not armed.

NOTE:
This troubleshooting procedure requires the use of scan tool MB991958 and SWS monitor kit MB991813. For details on how to use the SWS monitor, refer to "How to use SWS monitor How to Cope With Intermittent Malfunctions."

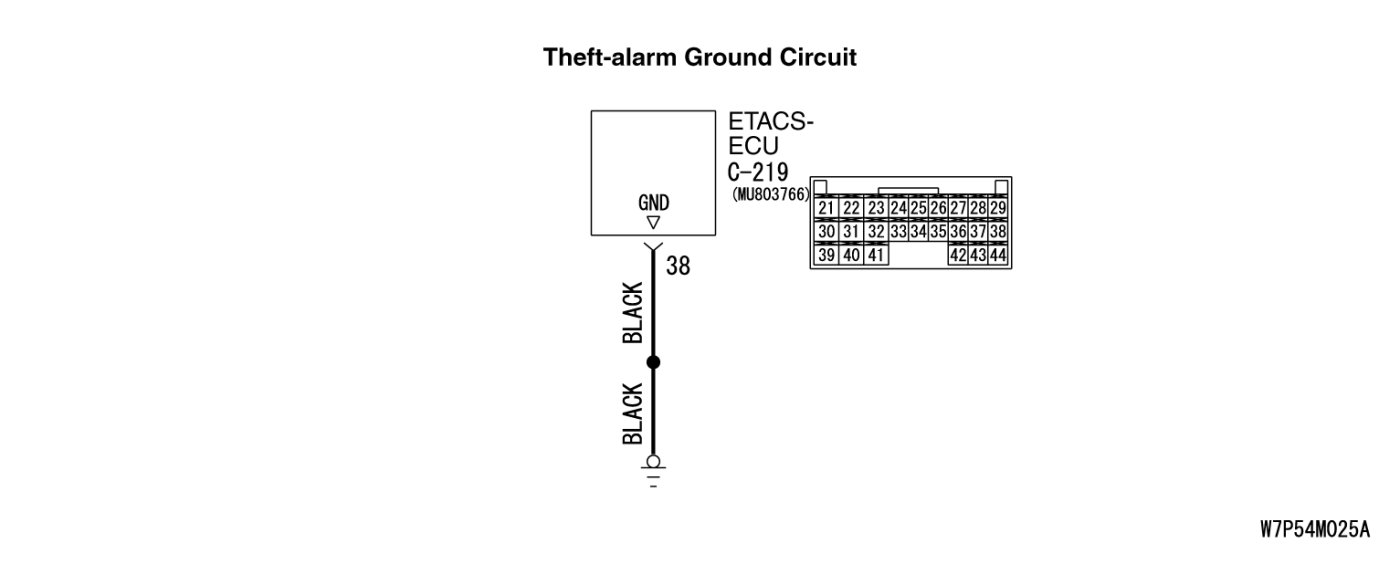

CIRCUIT OPERATION

When the theft alarm operates, the horn sounds and the headlights (high-beam) flashes.

TECHNICAL DESCRIPTION (COMMENT)

With all the theft alarm operation conditions satisfied, if the horn does not sound and the headlights (high-beam) does not flash at all (when security indicator and panic alarm are normal), the ground wire for ETACS-ECU theft alarm or ETACS-ECU may be faulty.

TROUBLESHOOTING HINTS

- The ETACS-ECU may be defective
- The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector

DIAGNOSIS

Required Special Tools:

- MB991223: Harness Set
- MB992006: Extra Fine Probe
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: M.U.T.-III USB Cable
- MB991911: M.U.T.-III Main Harness B
- MB991813: SWS Monitor Kit
- MB991806: SWS Monitor Cartridge
- MB991812: SWS Monitor Harness (For Column-ECU)
- MB991822: Probe Harness
- MB991854: SWS Monitor Harness (For 13-pin)

STEP 1. Use scan tool MB991958 to select "ECU COMM Check" on the SWS monitor display.

Check the ETACS-ECU.









(1)
CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958. Connect special tool MB991910 before connecting special tool MB991812. Be sure to connect special tool MB991806 after turning on special tool MB991824.

Connect the special tool. Refer to "How to connect SWS monitor How to Connect SWS Monitor."
(2)Turn the ignition switch to the "LOCK" (OFF) position.
(3)Operate scan tool MB991958 according to the procedure below to display "ECU COMM Check."

.....Select "Interactive Diagnosis."

.....Select "System select."

.....Select "SWS."

.....Select "SWS MONITOR."

.....Select "ECU COMM Check."
(4)Scan tool MB991958 should show "OK" on the "ECU COMM Check" menu for the "ETACS ECU" menu.

Q. Is "OK" displayed for the "ETACS ECU" menu?

YES Go to Step 2.

NO Refer to Inspection Procedure A-3 "Communication with the ETACS-ECU is not possible Inspection Procedure A-3."

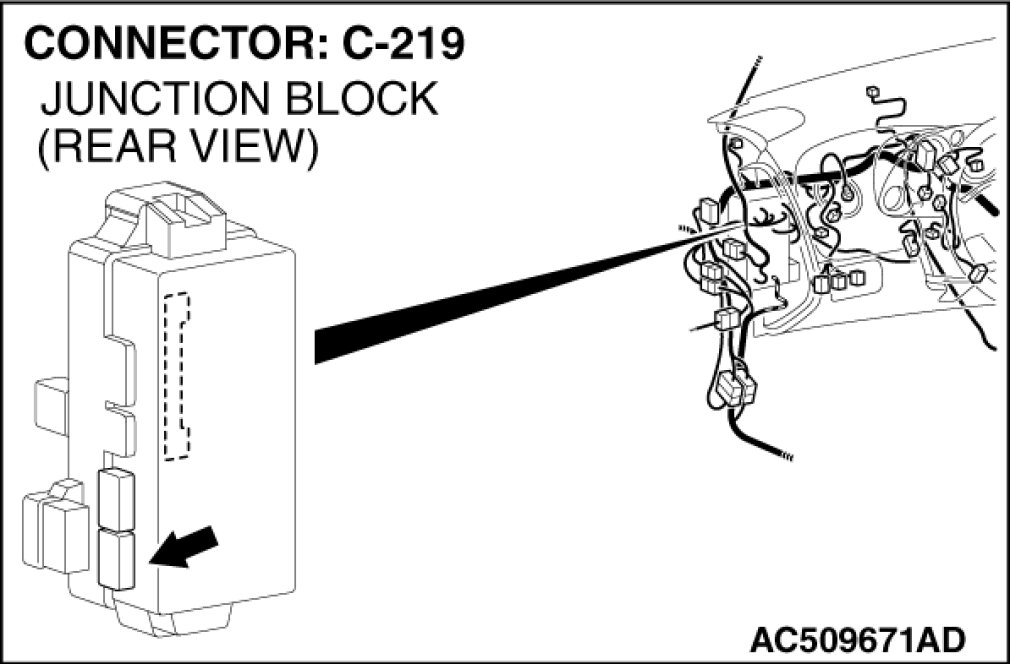

STEP 2. Check the ETACS-ECU connector C-219 for loose, corroded or damaged terminals, or terminals pushed back in the connector.





Q. Is the ETACS-ECU connector C-219 in good condition?

YES Go to Step 3.

NO Repair or replace the damaged component(s). Harness Connector Inspection. All the vehicle horn (including the theft-alarm horn) should sound when the theft-alarm system is triggered.

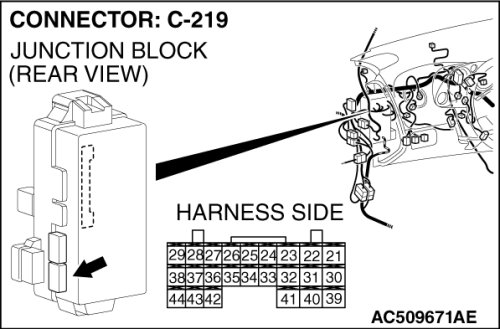

STEP 3. Check the wiring harness between ETACS-ECU connector C-219 (terminal 38) and ground.

- Check the ground wire for open circuit.





Q. Is the wiring harness between ETACS-ECU connector C-219 (terminal 38) and ground in good condition?

YES Replace the ETACS-ECU. When the ETACS-ECU is replaced, register the encrypted code. Encrypted Code Registration Criteria Table. The horns should sound when the theft-alarm system is triggered.

NO The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. The horns should sound when the theft-alarm system is triggered.
