Inspection Procedure E-1

INSPECTION PROCEDURE E-1: Keyless Entry System: Keyless entry system does not operate.

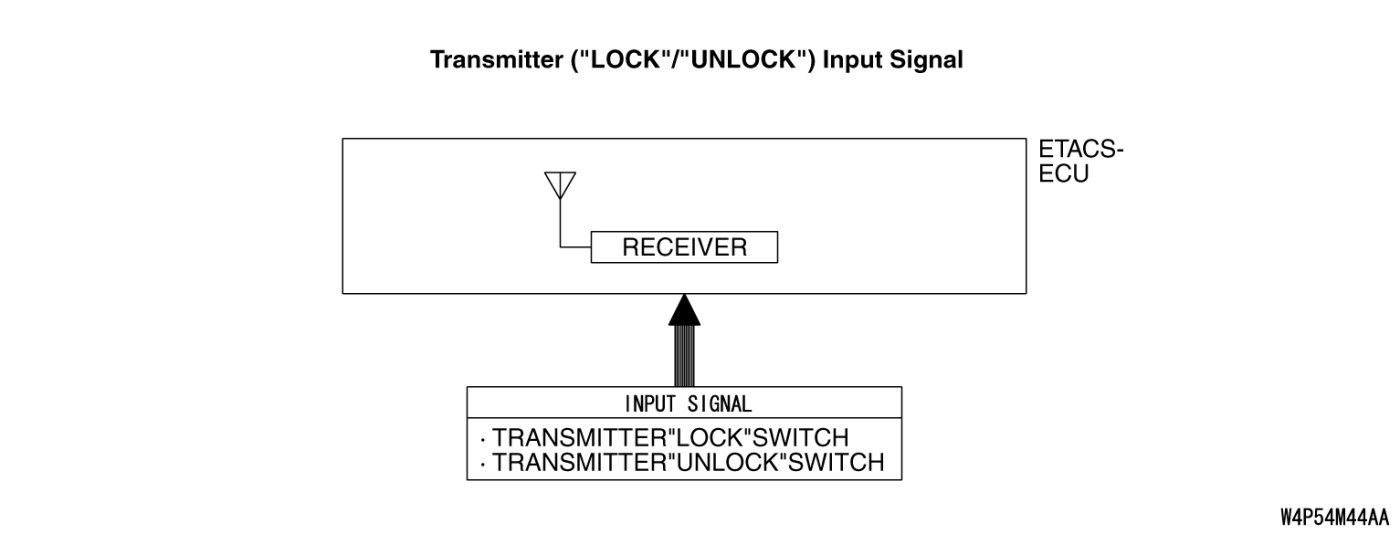

CIRCUIT OPERATION

A receiver is incorporated in the ETACS-ECU. This receiver receives a lock or unlock signal from the transmitter.

TROUBLESHOOTING HINTS

- The keyless entry transmitter may be defective
- The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

- MB991223: Harness Set
- MB992006: Extra Fine Probe
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A

STEP 1. Verify the central door locking system.

Q. Does the central door locking system work normally?

YES Go to Step 2.
NO Refer to Inspection Procedure C-1 "The central door locking system does not work at all Inspection Procedure C-1."
STEP 2. Check the input signal (by using the pulse check mode of the monitor).

Check input signals from the transmitter.





(1)
CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

Connect scan tool MB991958.Refer to "How to connect SWS monitor How to Connect SWS Monitor."
(2)Operate scan tool MB991958 according to the procedure below to display "Pulse check."

.....Select "Interactive Diagnosis."

.....Select "System select."

.....Select "SWS."

.....Select "Pulse Checking."
(3)Push the transmitter "LOCK" or "UNLOCK" button.
(4)Check that scan tool MB991958 sounds

Q. When the transmitter "LOCK" or "UNLOCK" button is turned ON, does scan tool MB991958 sound?

YES Replace the ETACS-ECU. When the ETACS-ECU is replaced, register the encrypted code. Encrypted Code Registration Criteria Table.
All the doors can be locked or unlocked by means of the transmitter.

NO Refer to Inspection Procedure N-7 "ETACS-ECU does not receive any signal from the lock, unlock, liftgate [ECLIPSE], trunk lid [ECLIPSE SPYDER] or panic switch Inspection Procedure N-7."
