Radio Tuner: Service and Repair




REMOVAL AND INSTALLATION

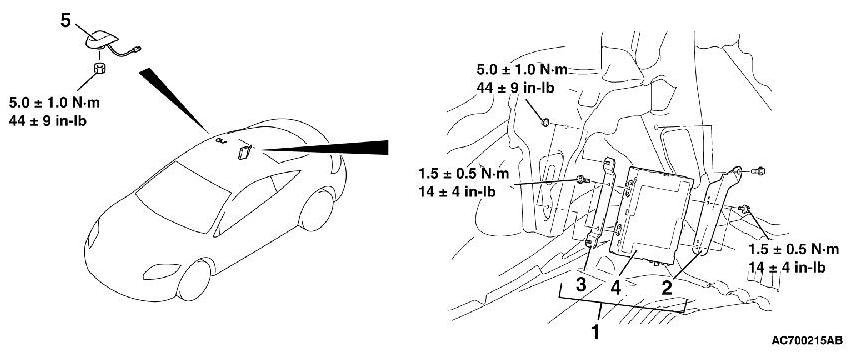

[ECLIPSE]

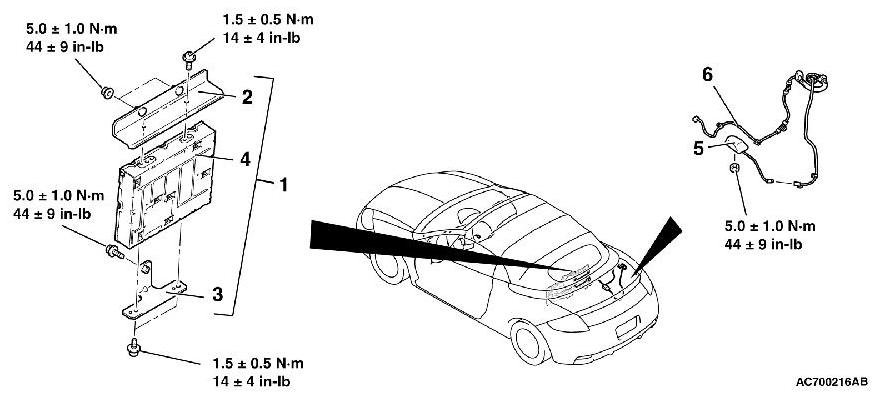

[ECLIPSE SPYDER]

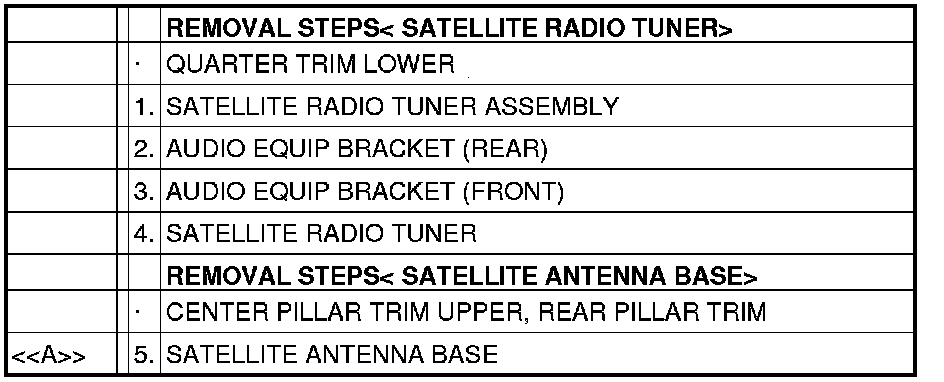

REMOVAL SERVICE POINT

[[A]] REMOVAL OF SATELLITE ANTENNA BASE

Lower the headlining assembly and remove it.
