Amplifier: Service and Repair

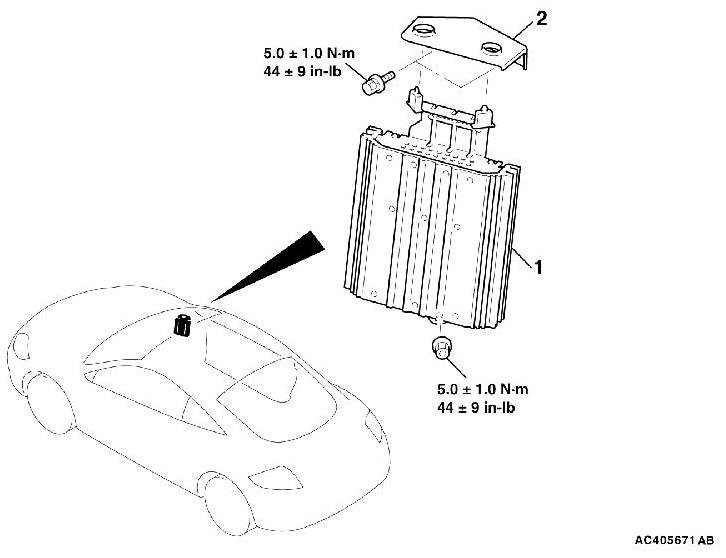

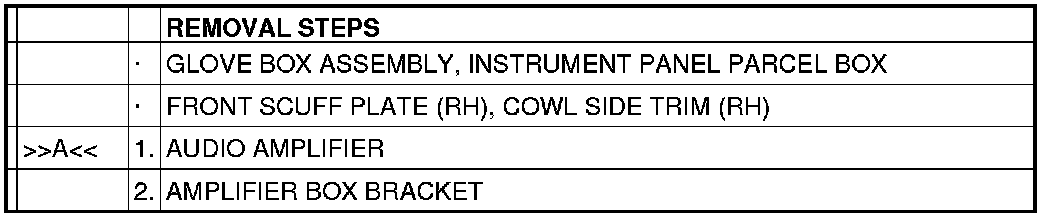

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

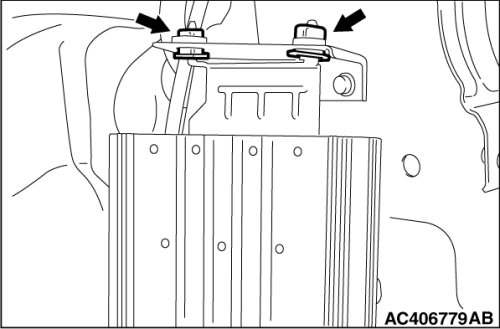

]]A[[ AUDIO AMPLIFIER INSTALLATION

Install while aligning with the amplifier mounting hole.
