Pinout Values and Diagnostic Parameters

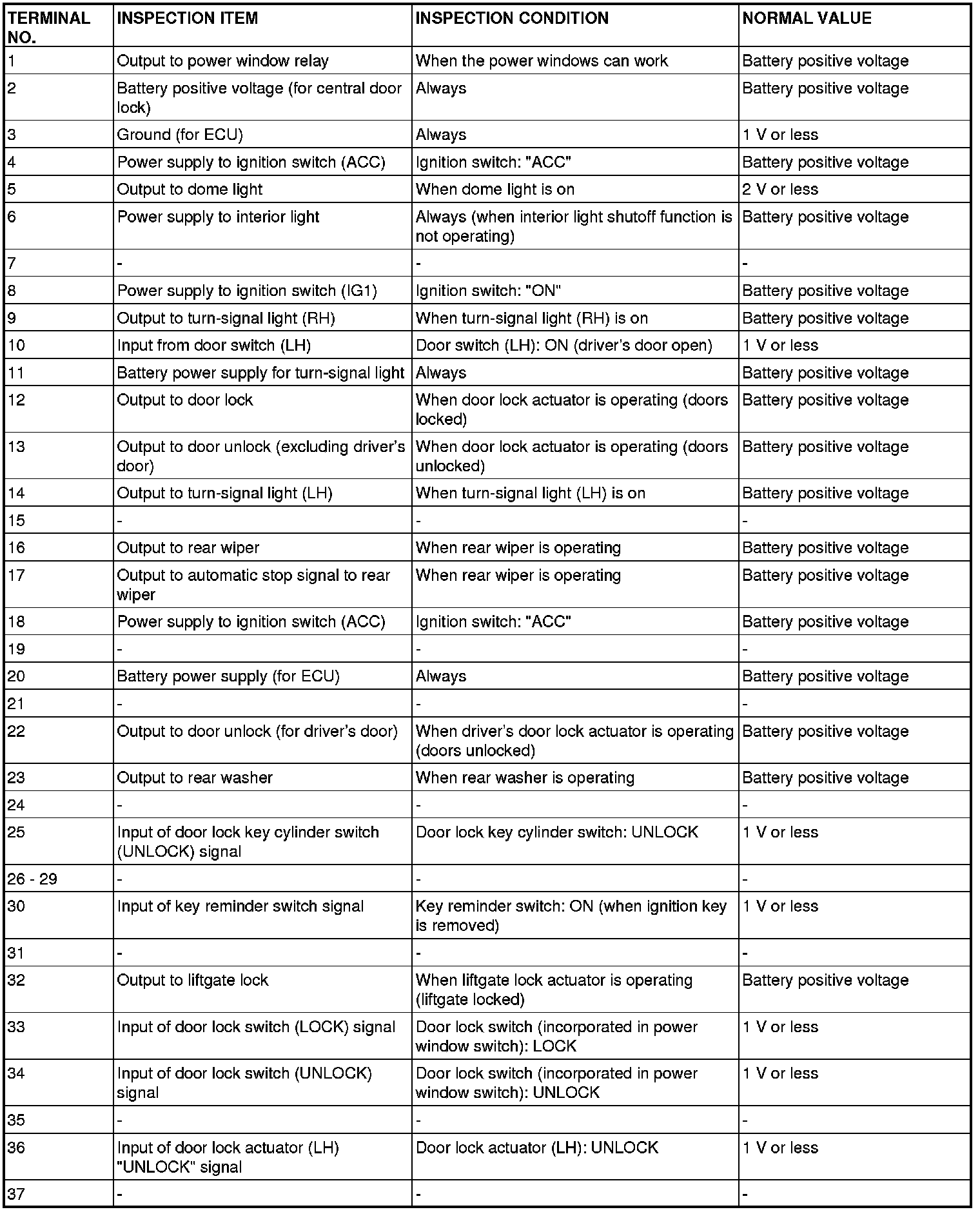

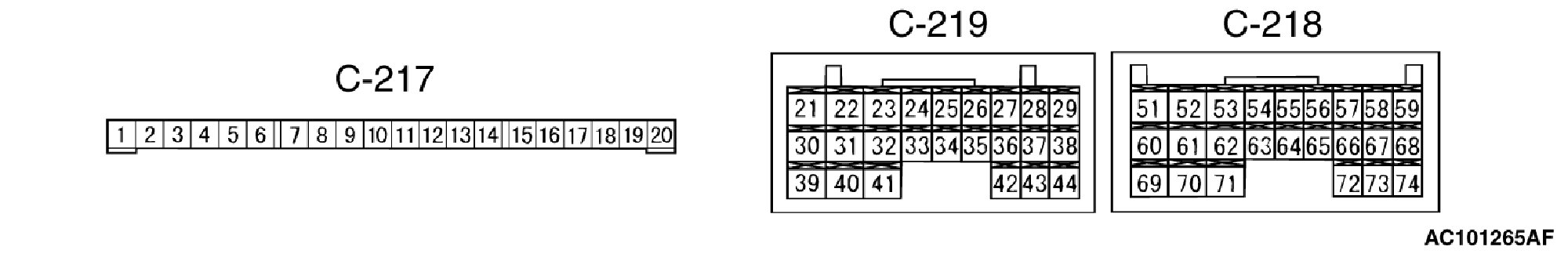

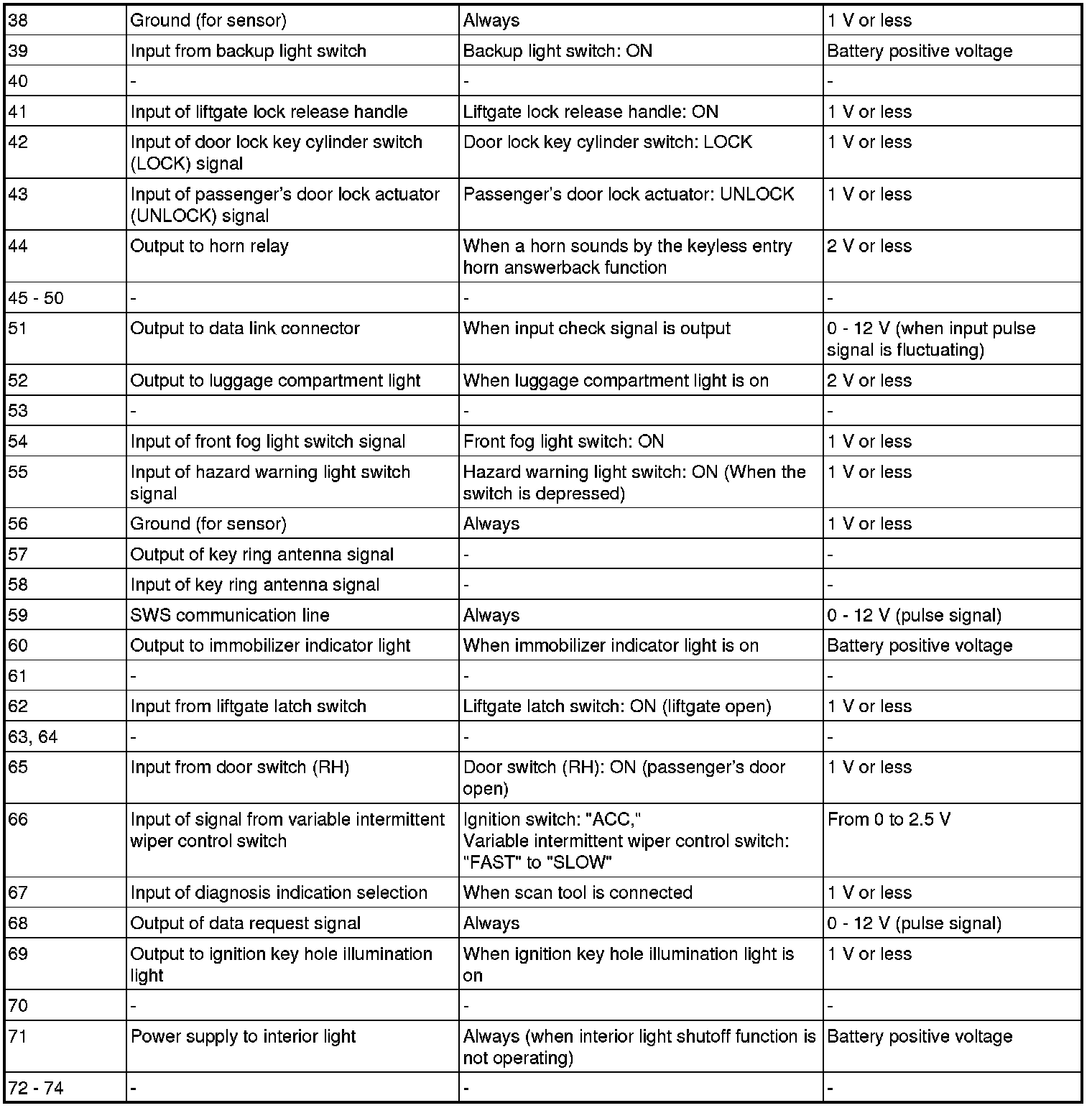

CHECK AT ETACS-ECU (IMMOBILIZER-ECU) TERMINAL





NOTE:
*:The terminal No.1 to 20 connectors cannot be measured as the ETACS-ECU is installed directly on the junction block. Therefore, this information is only for reference.
