Exhaust Manifold Removal and Installation

REMOVAL AND INSTALLATION

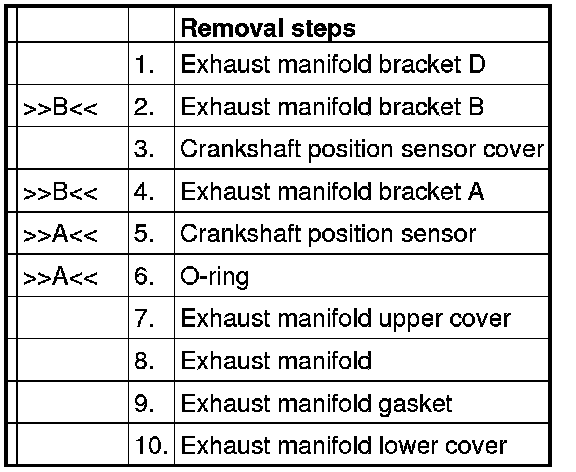

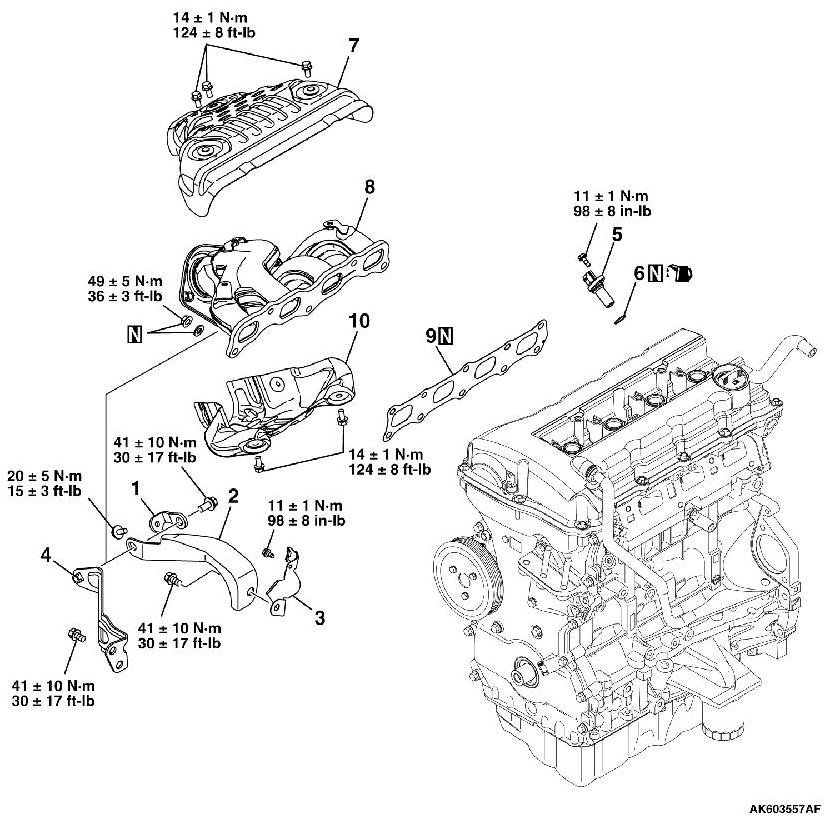

[Except Vehicles for CALIFORNIA]

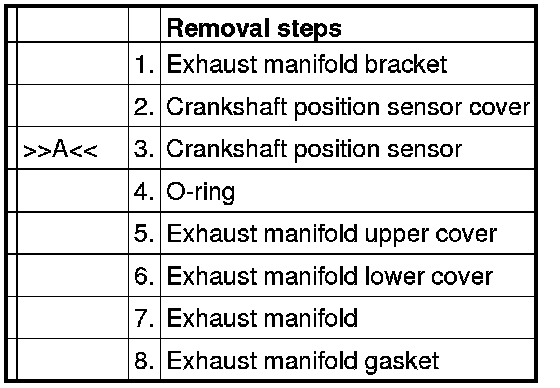

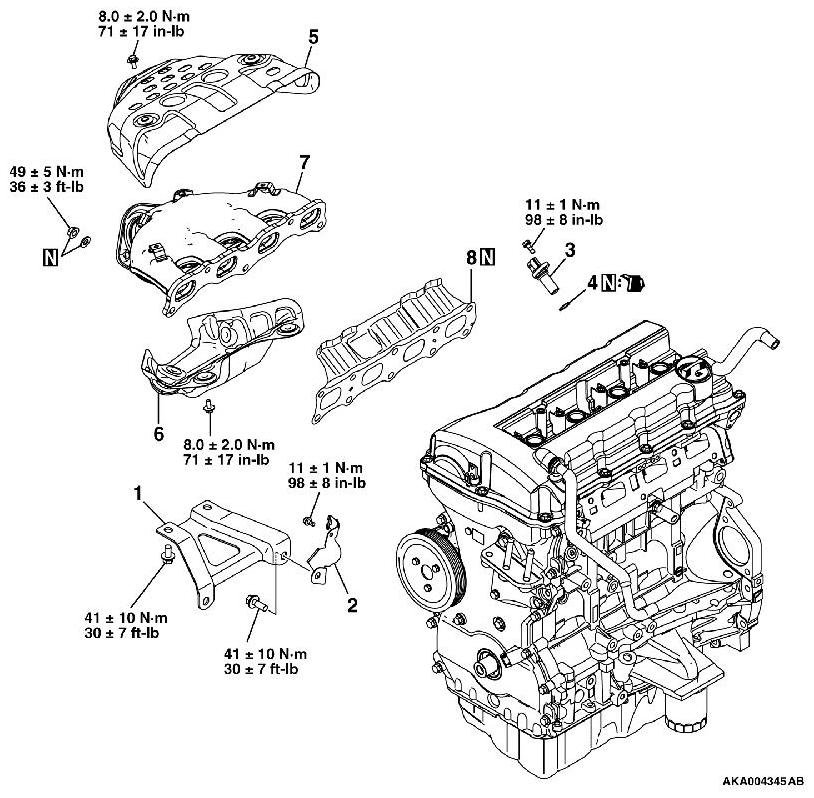

[Vehicles for CALIFORNIA]






INSTALLATION SERVICE POINTS

]]A[[ CRANKSHAFT POSITION SENSOR / O-RING INSTALLATION

CAUTION:

- Do not apply a force such as torsion or twist to the O-ring during assembly of the sensor.
- Assemble the sensor, taking care not to give a shock to it.
- Do not use a sensor that has fallen down.

Tighten the crankshaft position sensor to the specified tightening torque of 11 ± 1 Nm (98 ± 8 in-lb).

]]B[[ EXHAUST MANIFOLD BRACKET INSTALLATION

CAUTION:
The exhaust manifold gasket, washers and nuts must not be reused.

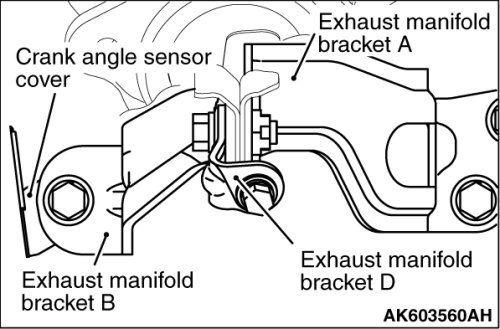

Make sure that exhaust manifold bracket A is in intimate contact with the exhaust manifold and cylinder block, and then tighten it to the specified tightening torque.
Tightening torque:
M10x 30: 41± 10Nm (30± 7 ft-lb)
M8x 20: 20± 5Nm (15± 3 ft-lb)
