Rear Wiper Motor

REAR WIPER MOTOR CHECK

Inspect the rear wiper motor by disconnecting the harness connector with the motor attached to the vehicle.

REAR WIPER MOTOR OPERATION CHECK

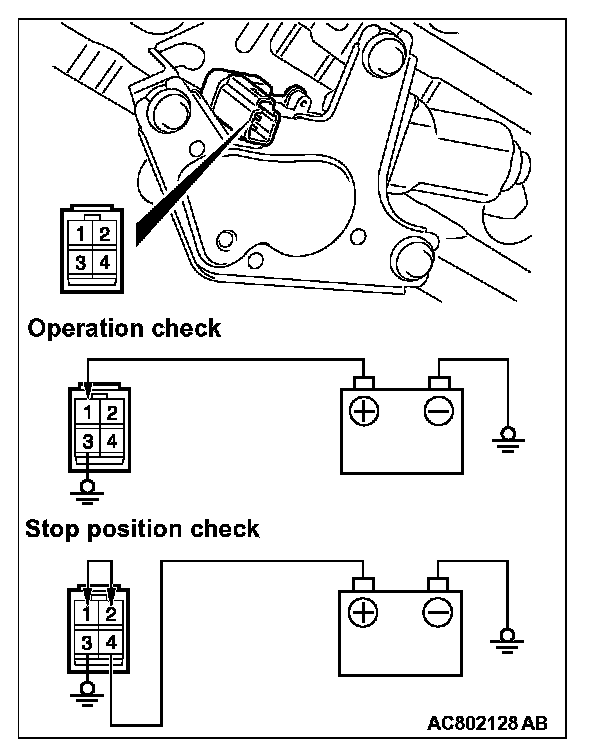

Connect the battery to the rear wiper motor to inspect the motor operation as shown in the illustration.

REAR WIPER MOTOR STOP POSITION CHECK







1. Connect the battery to the rear wiper motor as shown in the illustration.
2. Disconnect the battery in the middle of the motor rotation and check to see that the motor stops.
3. Reconnect the battery.
4. Check to see that the rear wiper motor runs and then stops at the automatic stop position.
