Rear Wiper and Washer

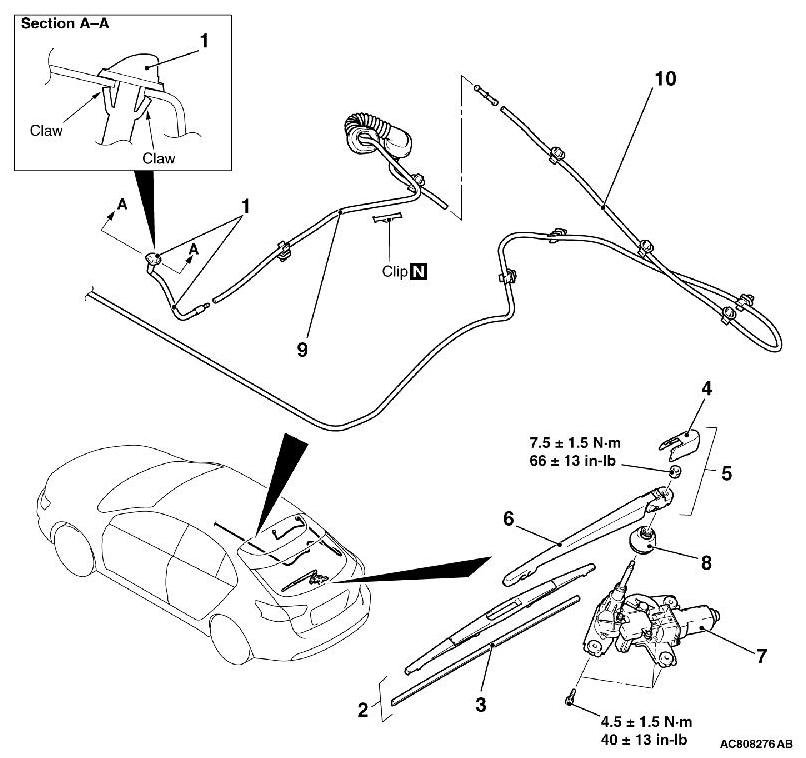

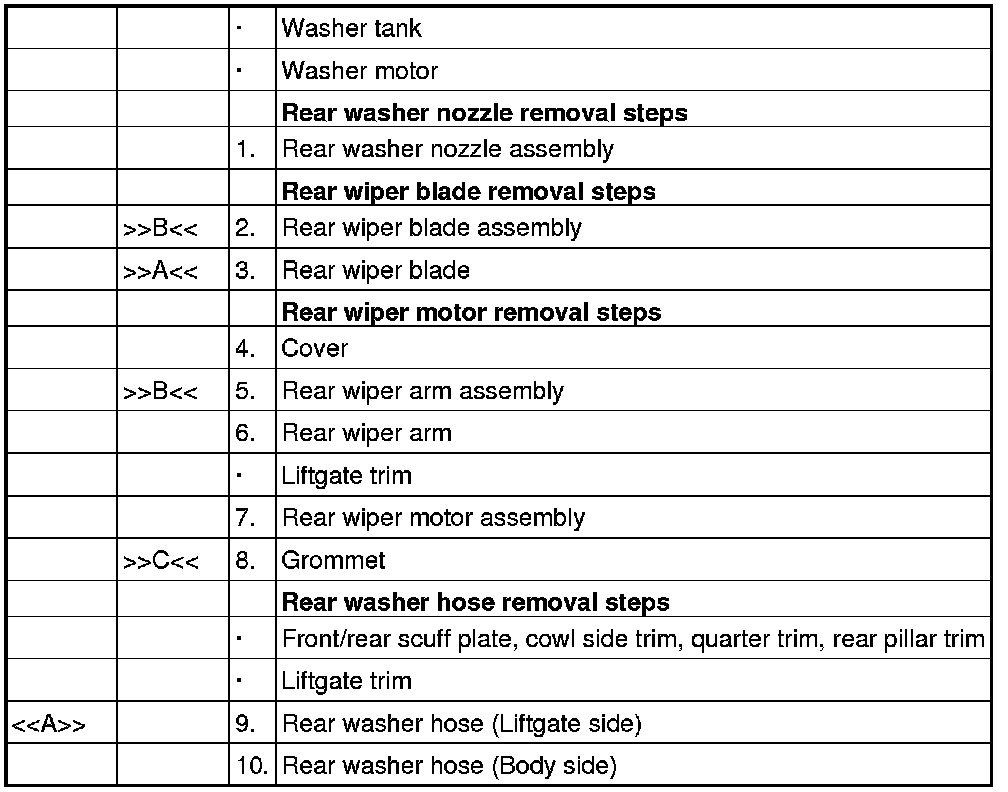

REMOVAL AND INSTALLATION









NOTE:
For removal and installation of the wiper and washer switch, refer to Column Switch Service and Repair.

REMOVAL SERVICE POINTS

[[A]] REAR WASHER HOSE (LIFTGATE SIDE) REMOVAL





CAUTION:

- The rear washer hose is fixed to the clip with tape. Remove the clip by breaking it.
- Tie a cord to the rear washer hose when removing it from the liftgate to configure it easily upon assembling.

INSTALLATION SERVICE POINTS

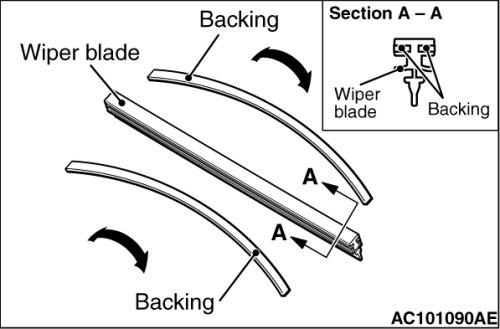

]]A[[ REAR WIPER BLADE INSTALLATION





CAUTION:
Use a curved backing like that shown for the backing of a wiper blade to ensure sustained wiper wiping performance.

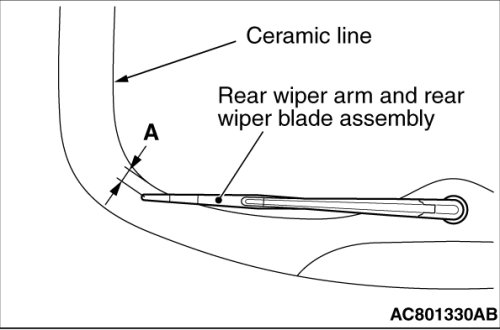

]]B[[ REAR WIPER ARM AND REAR WIPER BLADE ASSEMBLY INSTALLATION





Set the wiper blade so that it stops at the specified position.
(A): 5 to 25 mm (0.2 to 1.0 in) from the ceramic line

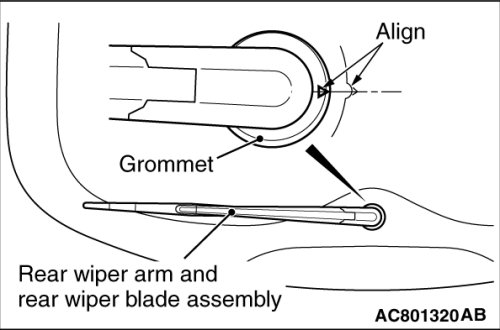

]]C[[ GROMMET INSTALLATION





Install so that the mating mark on the grommet (triangle) is aligned with the mark on the Liftgate glass.
