Inspection Procedure 8

INSPECTION PROCEDURE 8: Oil Leakage [DIFFERENTIAL]

DIAGNOSIS

STEP 1. Check the cover installation.

Q:Is the cover installed correctly?
YES : Go to Step 2.
NO : Repair. Then go to Step 4.

STEP 2. Check the oil seal for wear or damage.

Q:Is the oil seal worn or damaged?
YES : Replace the seal. Then go to Step 4.
NO : Go to Step 3.

STEP 3. Check the oil level.

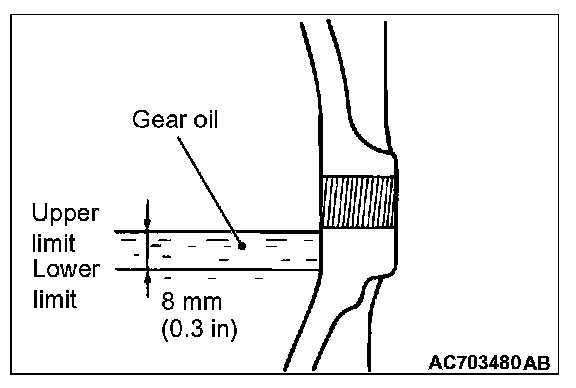

Remove the filler plug and check the gear oil level.

Q:Is the gear oil level more than 8 mm (0.3 inch) below the bottom of the filler plug hole?
YES : Refill MITSUBISHI Genuine DIAQUEEN LSD gear oil. Then go to Step 4.
NO : Go to Step 4.

STEP 4. Retest the system.

Q:Is there oil leakage?
YES : Start over at Step 1.
NO : The procedure is complete.
