CVT - Revised Hydraulic Pressure Tables

No: TSB-11-23-003

DATE: July, 2011

MODEL: See below

SUBJECT:
CVT HYDRAULIC PRESSURE TABLES - SERVICE MANUAL REVISION

PURPOSE

The standard hydraulic pressure tables for the CVT (F/W1CJA) on affected vehicles contain some incorrect specifications.

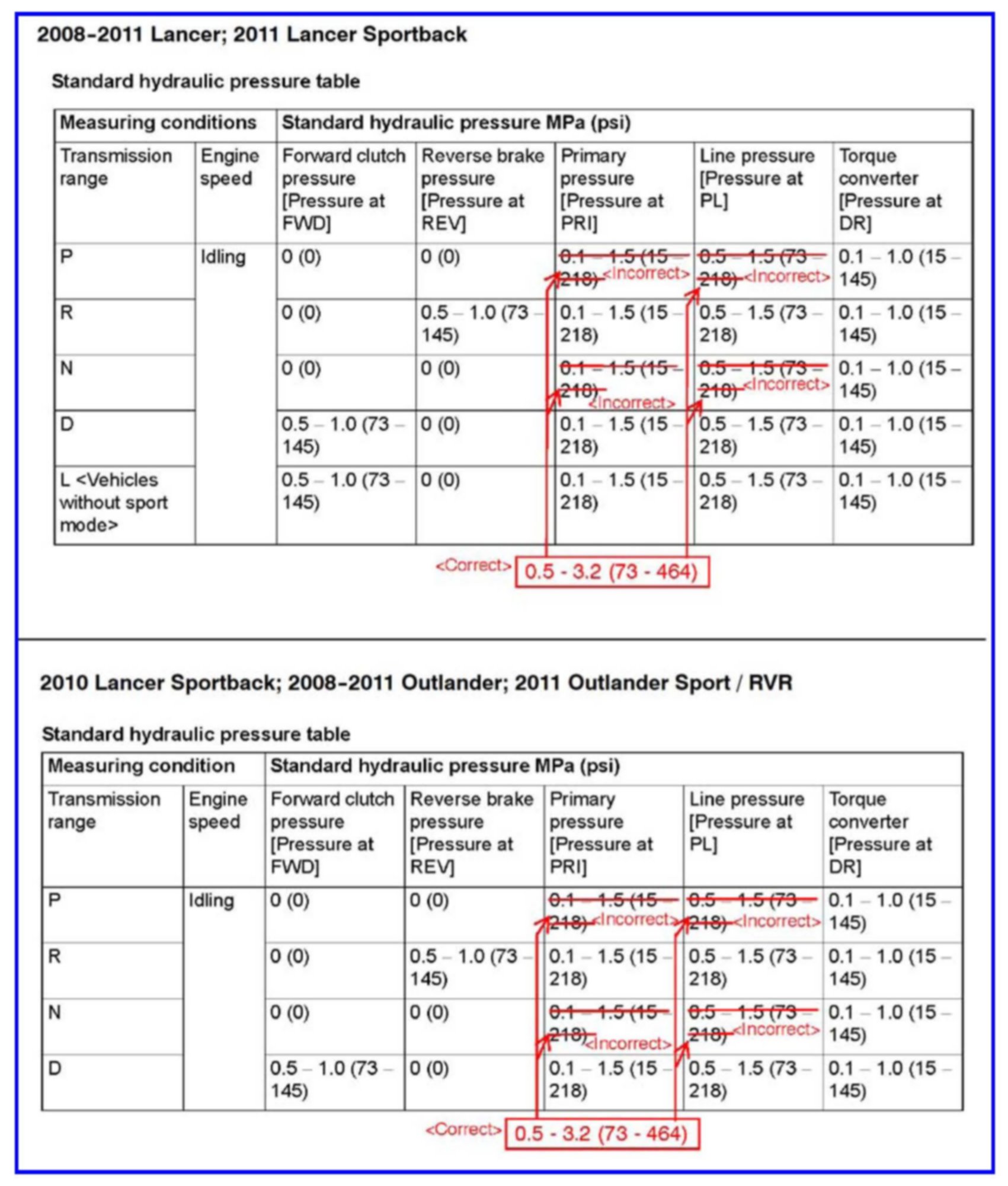

This bulletin provides corrected CVT hydraulic pressure tables for the affected service manuals.

AFFECTED VEHICLES
2008-2011 Lancer
2010-2011 Lancer Sportback
2008-2011 Outlander
2011 Outlander Sport / RVR

AFFECTED SERVICE MANUALS
2008 Lancer page 23A-28
2009 Lancer page 23A-29
2010 Lancer page 23A-28
2010 Lancer Sportback page 23A-24
2011 Lancer/Lancer Sportback page 23A-28
2008 Outlander page 23A-28
2009 Outlander page 23A-29
2010 Outlander page 23A-26
2011 Outlander page 23A-28
2011 Outlander Sport / RVR page 23A-25
