Snap Ring, Spacer and Thrust Washer For Adjustment




SNAP RING, SPACER AND THRUST WASHER FOR ADJUSTMENT

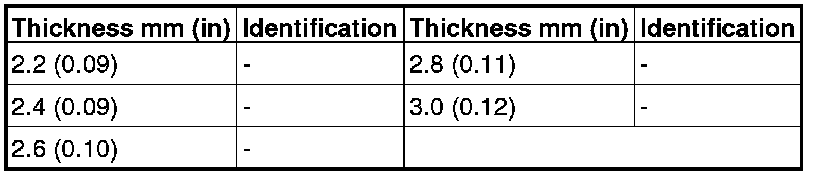

Snap rings (For adjustment of reverse brake)

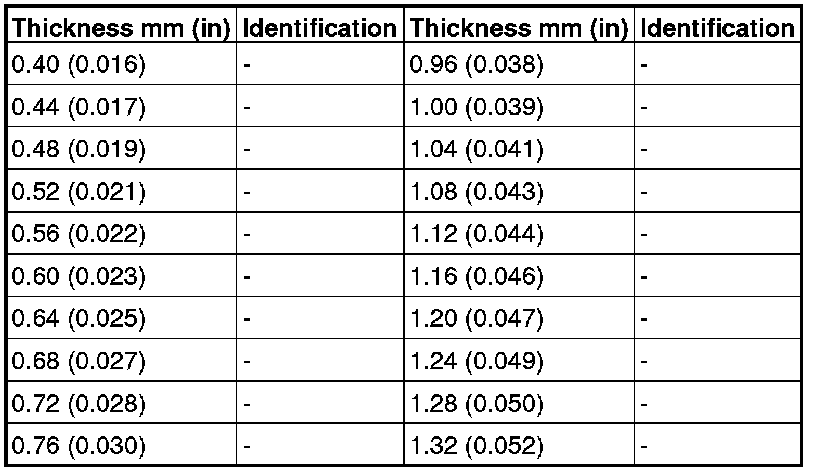

Needle bearings (For adjustment of total end play)

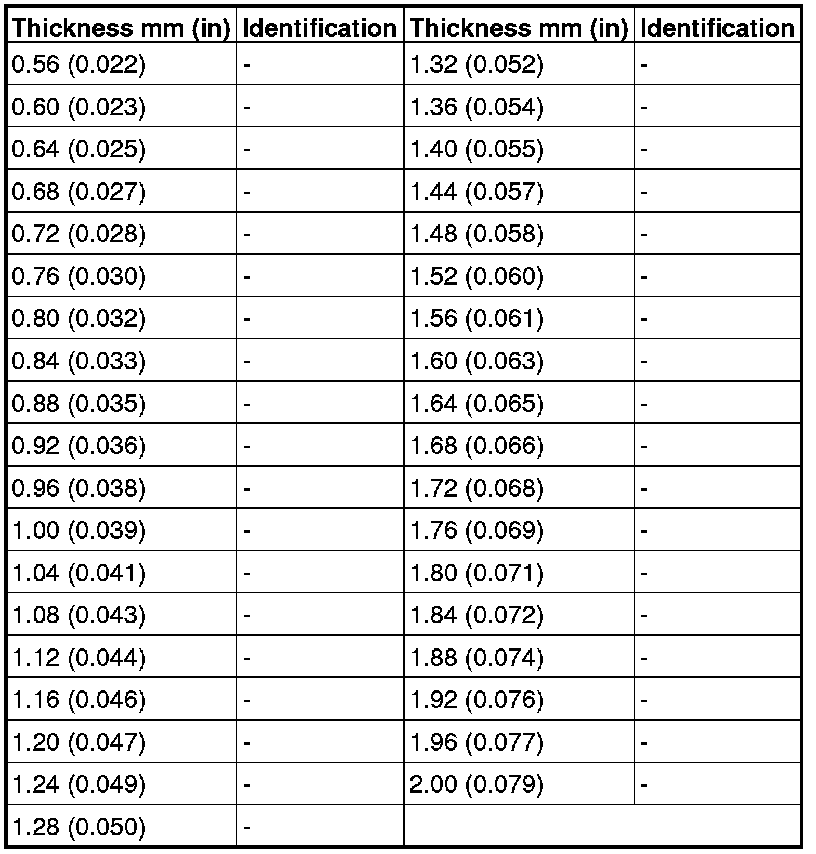

Adjusting shims (For adjustment of differential preload)

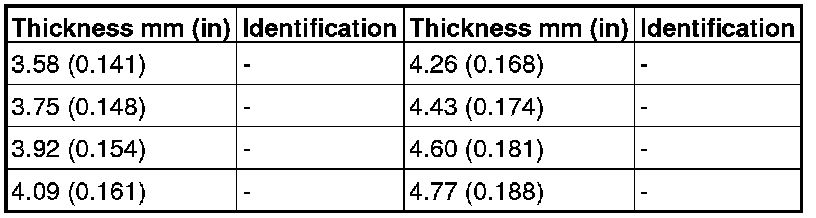

Adjusting shims (For adjustment of reduction gear preload)
