Reduction Gear Sub-Assembly Assembly

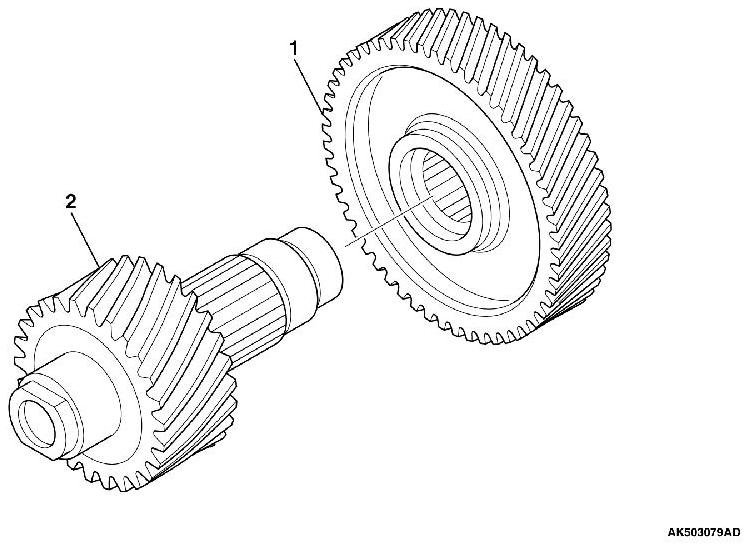

ASSEMBLY

CAUTION:
The reduction gear sub-assembly can only be assembled, not disassembled.









- MD998812: Installer Cap
- MD998813: Installer-100
- MD998819: Installer adapter (40)

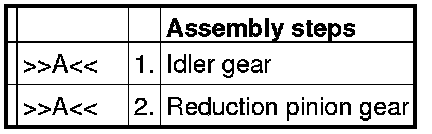

ASSEMBLY SERVICE POINT

]]A[[
REDUCTION PINION GEAR / IDLER GEAR INSTALLATION





CAUTION:

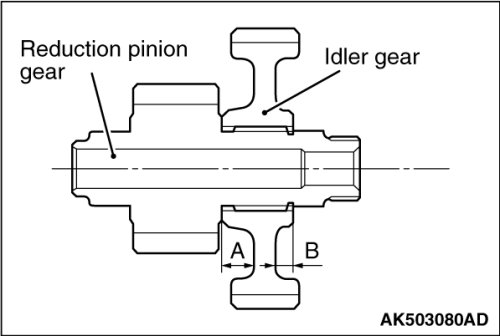

When attaching the idler gear to the reduction pinion gear, make sure the center boss portion A faces the reduction pinion gear.

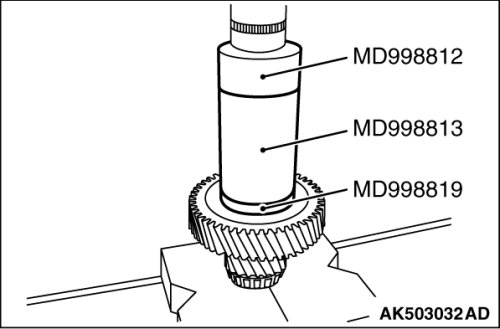

Using the special tools MD998812, MD998813 and MD998819, attach the idler gear to the reduction pinion gear.
