Forward Clutch Disassembly and Assembly

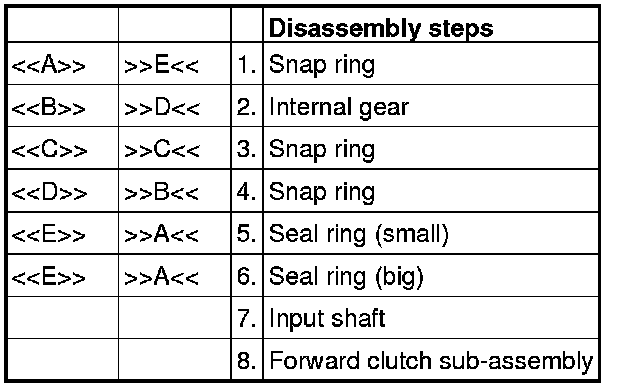

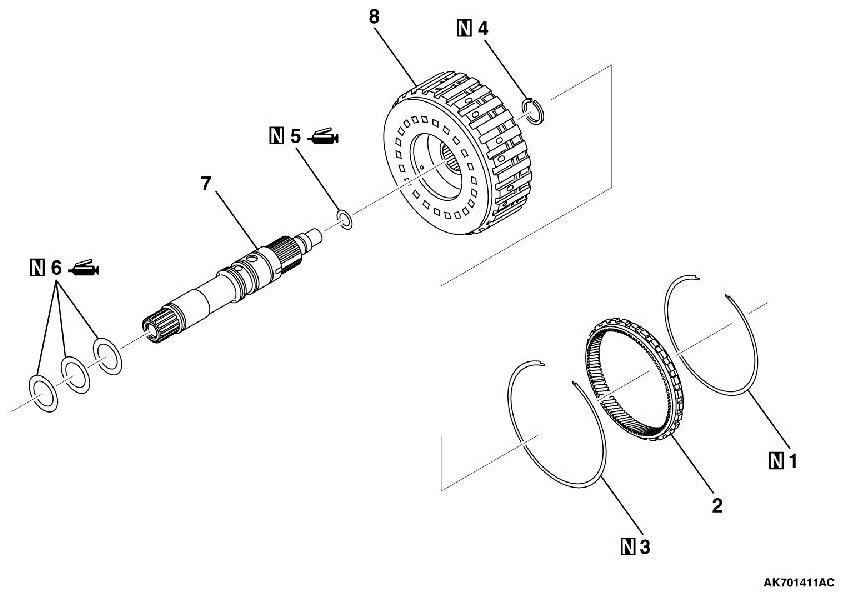

DISASSEMBLY AND ASSEMBLY









DISASSEMBLY SERVICE POINT

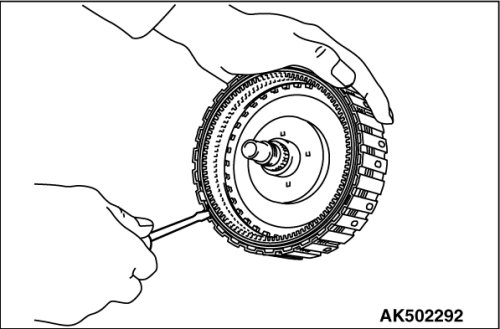

[[A]] SNAP RING REMOVAL





Using a flat blade screwdriver etc., remove the snap ring from the forward clutch drum.

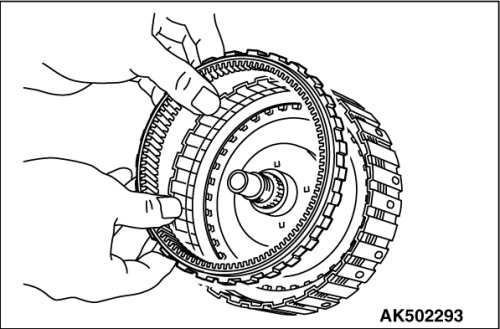

[[B]] INTERNAL GEAR REMOVAL





Remove the internal gear from the forward clutch drum.

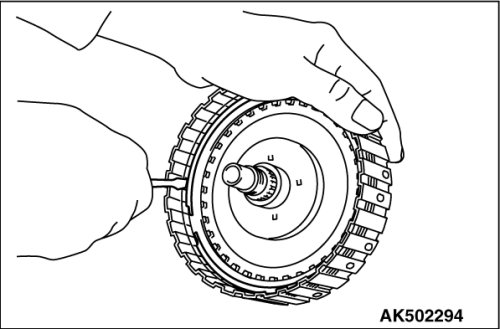

[[C]] SNAP RING REMOVAL





Using a flat blade screwdriver etc., remove the snap ring from the forward clutch drum.

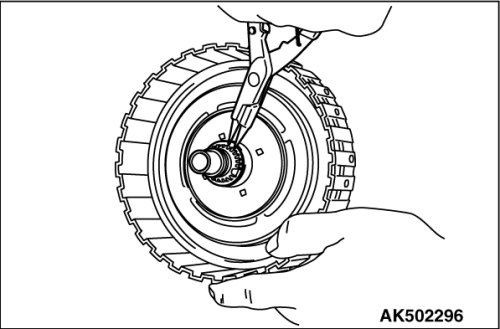

[[D]] SNAP RING REMOVAL





Remove the snap ring using snap ring pliers, and remove the input shaft from the forward clutch drum.

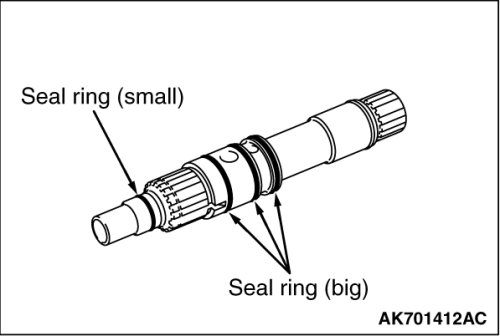

[[E]] SEAL RING REMOVAL





Remove the seal rings (small and big) from the input shaft.

ASSEMBLY SERVICE POINT

]]A[[ SEAL RING INSTALLATION

CAUTION:

- Apply Vaseline when installing the seal rings.
- Do not re-use the seal rings.





Install the seal rings (small and big) on the input shaft.

]]B[[ SNAP RING INSTALLATION

CAUTION:

- Be careful not to strain the snap ring by expanding it excessively.
- Do not re-use the snap ring.





Install the input shaft on the forward clutch drum, and attach the snap ring.

]]C[[ SNAP RING INSTALLATION

CAUTION:
Do not re-use the snap ring.





Install the snap ring on the forward clutch drum.

]]D[[ INTERNAL GEAR INSTALLATION





Install the internal gear on the forward clutch drum.

]]E[[ SNAP RING INSTALLATION

CAUTION:
Do not re-use the snap ring.





Install the snap ring on the forward clutch drum.
