Differential Disassembly and Assembly

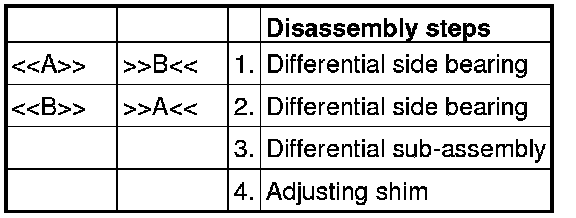

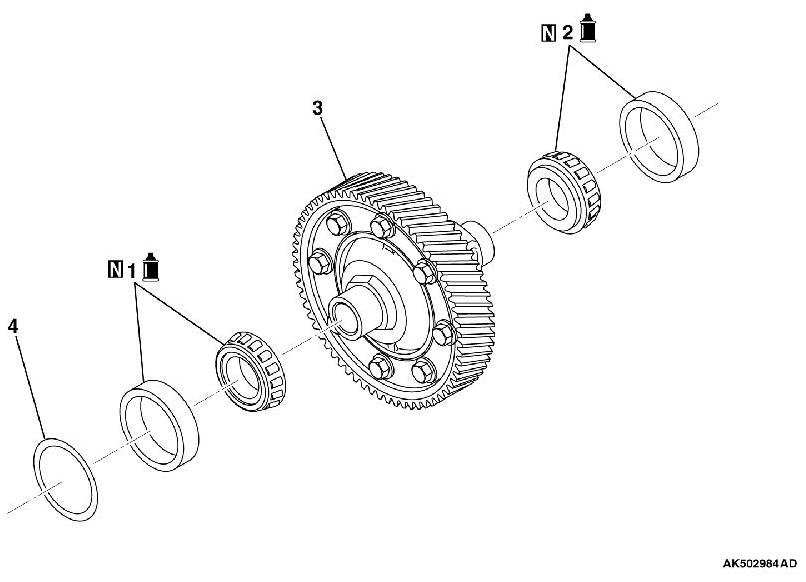

DISASSEMBLY AND ASSEMBLY









- MB990810: Side bearing puller
- MD998812: Installer Cap
- MD998813: Installer-100
- MD998823: Installer adapter (48)

DISASSEMBLY SERVICE POINT

[[A]] DIFFERENTIAL SIDE BEARING REMOVAL

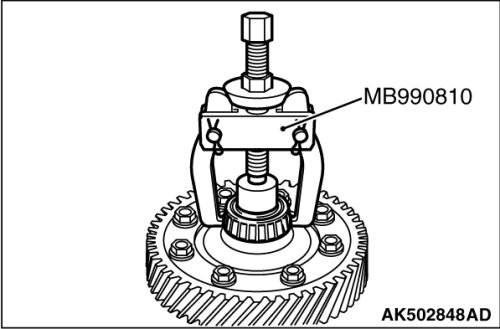

Using the special tool MB990810, remove the inner race of differential side bearing (transaxle case side) from the differential sub-assembly.

[[B]] DIFFERENTIAL SIDE BEARING REMOVAL

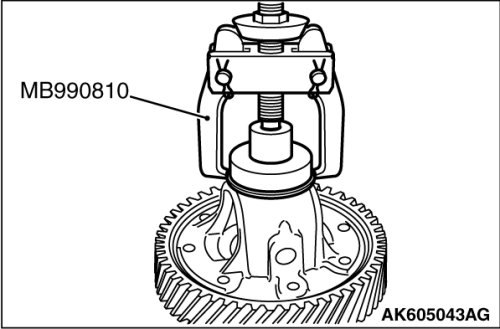

Using the special tools MB990810, remove the inner race of differential side bearing (converter housing side) from the differential sub-assembly.

ASSEMBLY SERVICE POINT

]]A[[ DIFFERENTIAL SIDE BEARING INSTALLATION

CAUTION:

- Do not re-use the inner race.
- Replace the inner race together with the outer race.

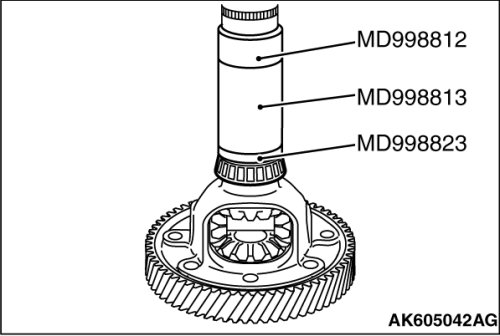

Using the special tools MD998812, MD998813 and MB998823, install the inner race of reduction gear bearing (converter housing side) on the reduction gear sub-assembly.

]]B[[ REDUCTION GEAR BEARING INSTALLATION

CAUTION:

- Do not re-use the inner race.
- Replace the inner race together with the outer race.

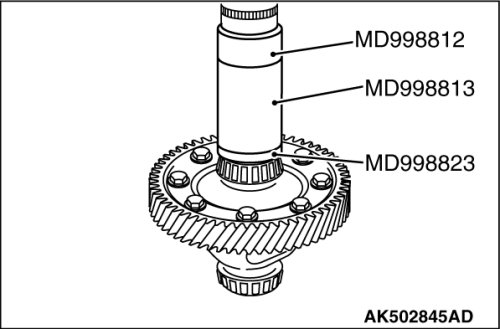

Using the special tools MD998812, MD998813 and MD998823, install the inner race of reduction gear bearing (transaxle case side) on the reduction gear sub-assembly.
