Home >> Mitsubishi >> 2011 >> Lancer Sportback L4-2.0L Turbo (4B11T) >> Repair and Diagnosis >> Transmission and Drivetrain >> Continuously Variable Transmission/Transaxle >> Fluid Line/Hose >> Service and Repair

Fluid Line/Hose: Service and Repair

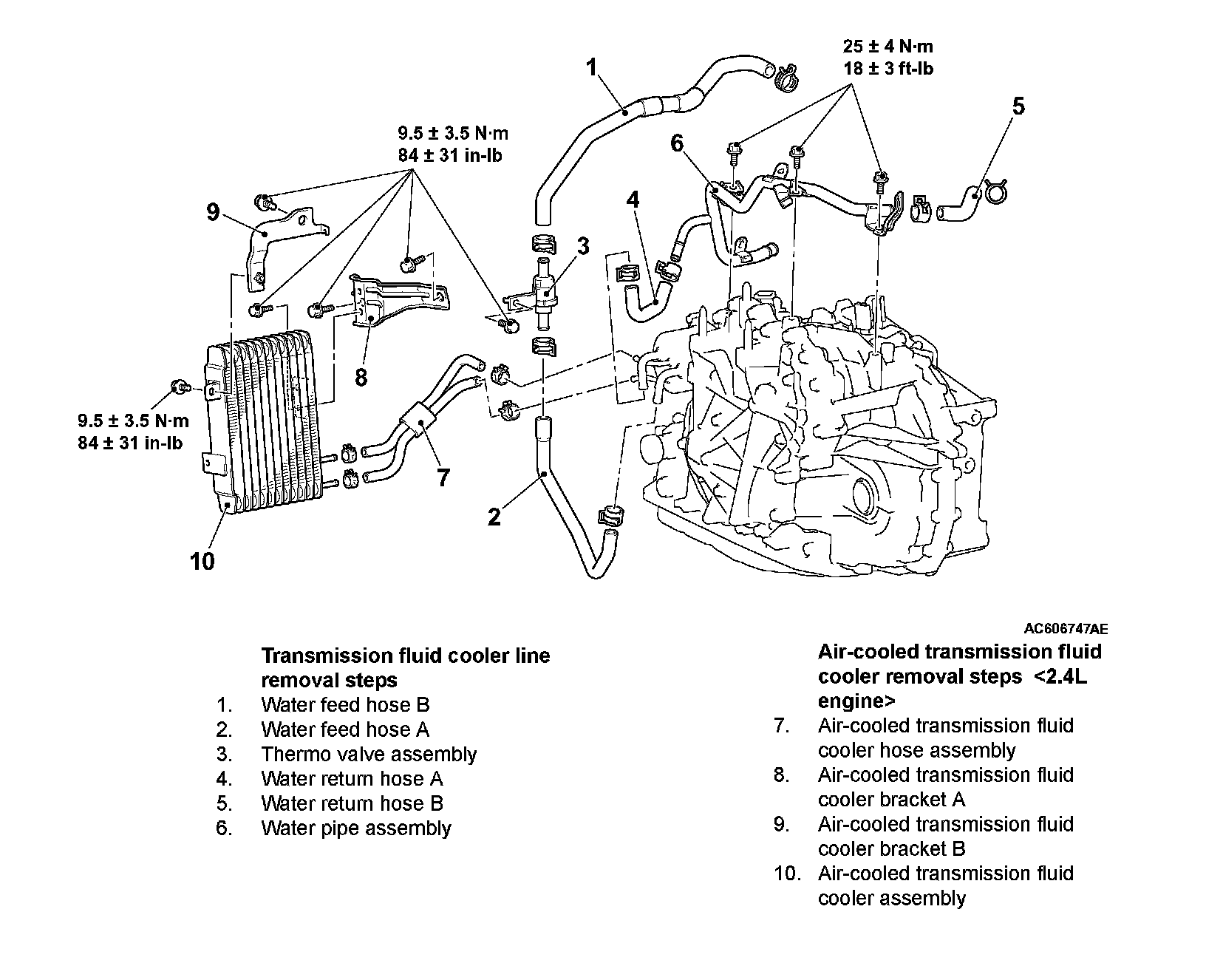

TRANSMISSION FLUID COOLER AND COOLER LINE

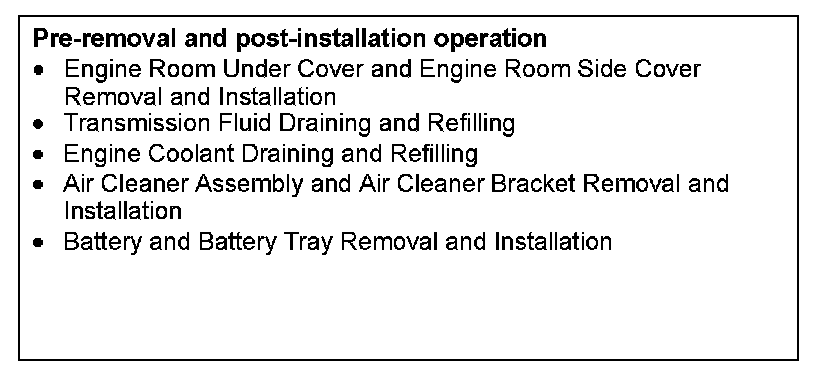

REMOVAL AND INSTALLATION
