Transmission Mount: Description and Operation

GENERAL INFORMATION

[2.0L ENGINE TURBO]
For the power plant support, the inertial axis four-point mounting system is adopted, and the system has the following features.
^ Environmental-load substances are totally abolished for hexavalent chromium-free and lead-free components.
^ For the engine and transaxle mounting insulator, the cylindrical liquid seal mountings are adopted. This reduces idling vibration and acceleration noise, and improves riding comfort.
^ A front axle crossmember is adopted to improve steering ability.
^ The mass damper is added into the center member to reduce muffled sound during acceleration.
^ The front axle crossmember bar is added to enhance rigidity.

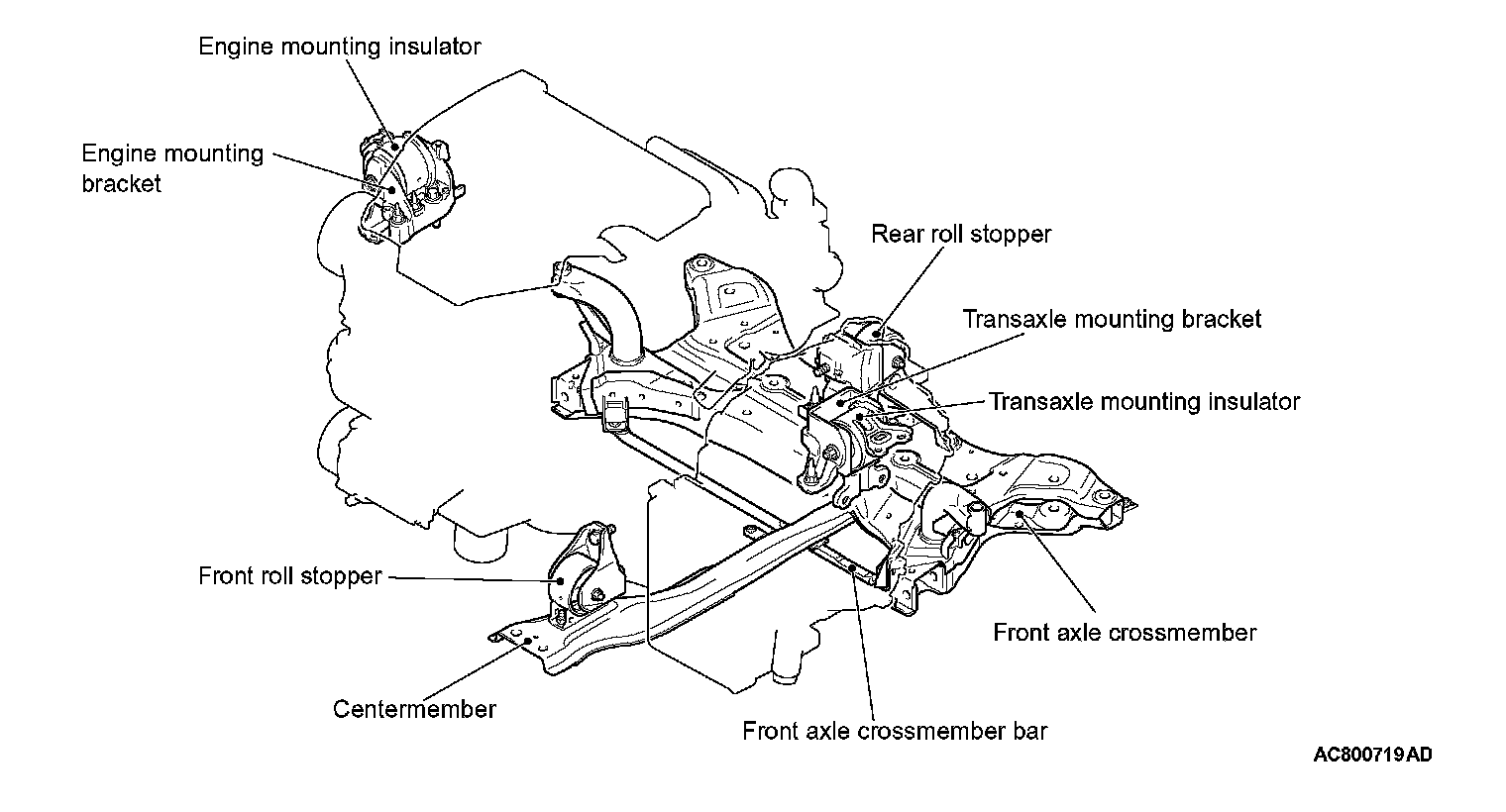

CONSTRUCTION DIAGRAM
