Shifting Mode




GENERAL INFORMATION

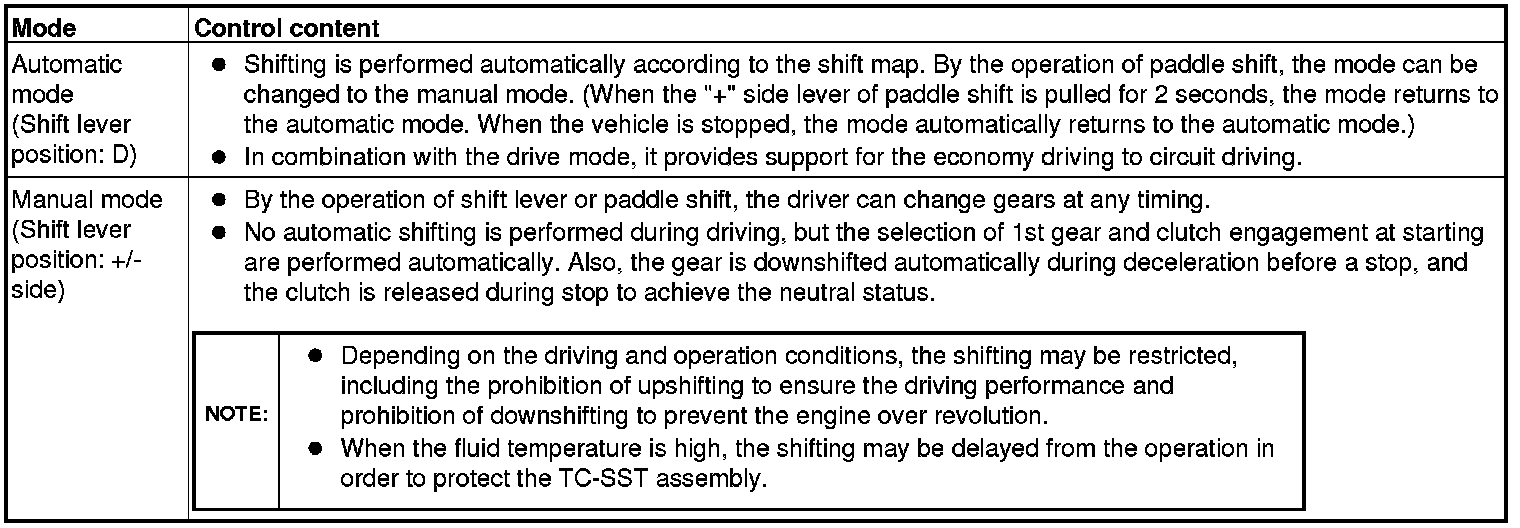

SHIFTING MODE

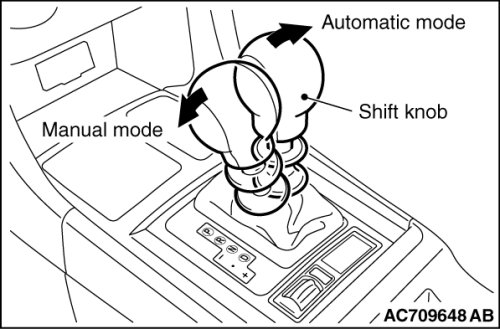

By the operation of shift lever, the automatic mode and manual mode can be selected.
