Shift Mechanism

GENERAL INFORMATION

SHIFT MECHANISM

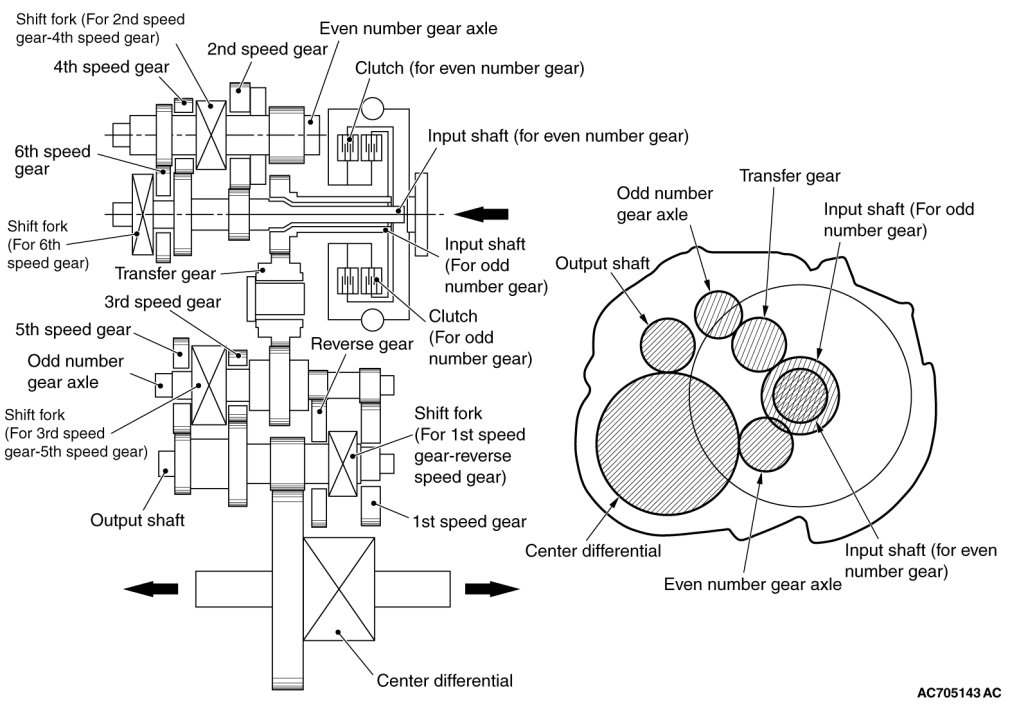

The shifting mechanism of TC-SST assembly is divided into two systems as the odd number gear axle (reverse, 1st, 3rd, 5th) and even number gear axle (2nd, 4th, 6th). Each mechanism is joined with an independent clutch, establishing a structure with which two 3-speed M/T mechanisms are combined.
