Hydraulic Mechanism

GENERAL INFORMATION

HYDRAULIC MECHANISM





By the operation of solenoid valve, the valve body feeds the hydraulic pressure needed for the operation of clutch and each shifting section. The solenoid valve is controlled by TC-SST-ECU, and the hydraulic pump generates the hydraulic pressure by using the engine power.

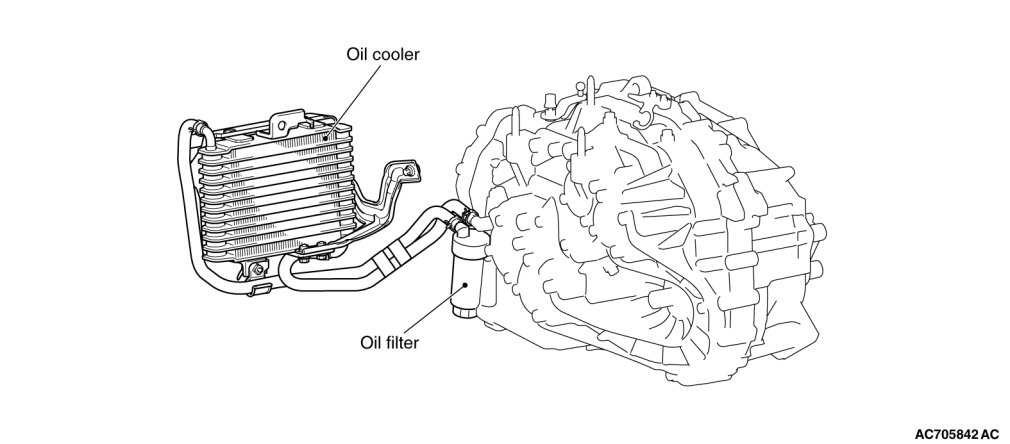

Also, to prevent the oil performance drop, the oil cooler and oil filter are equipped.
