Description of Structure and Operation

GENERAL INFORMATION

DESCRIPTION OF STRUCTURE AND OPERATION

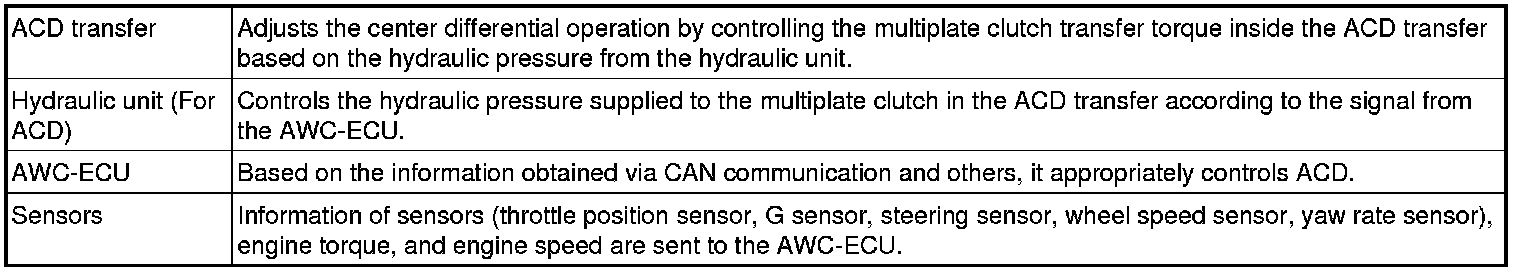

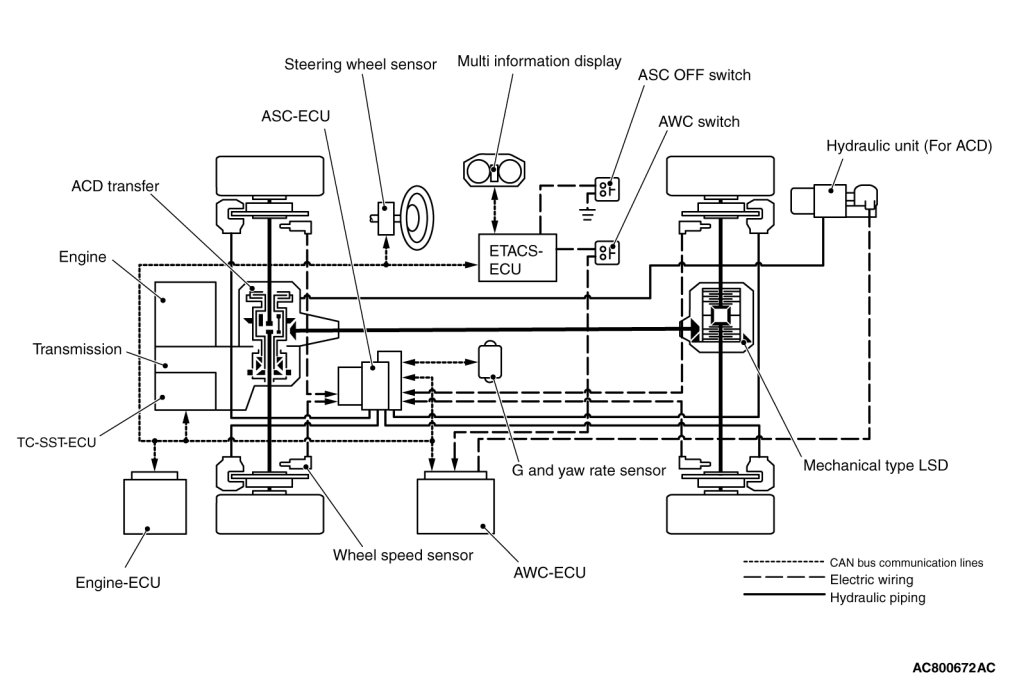

AWC-ECU performs a calculation based on the information from ECU, sensors, and switches.
Then, based on the calculation value, it appropriately operates the hydraulic unit (for ACD) to control in response to the driver's operations and vehicle behaviors.
