Description of Construction and Operation

GENERAL INFORMATION

DESCRIPTION OF CONSTRUCTION AND OPERATION

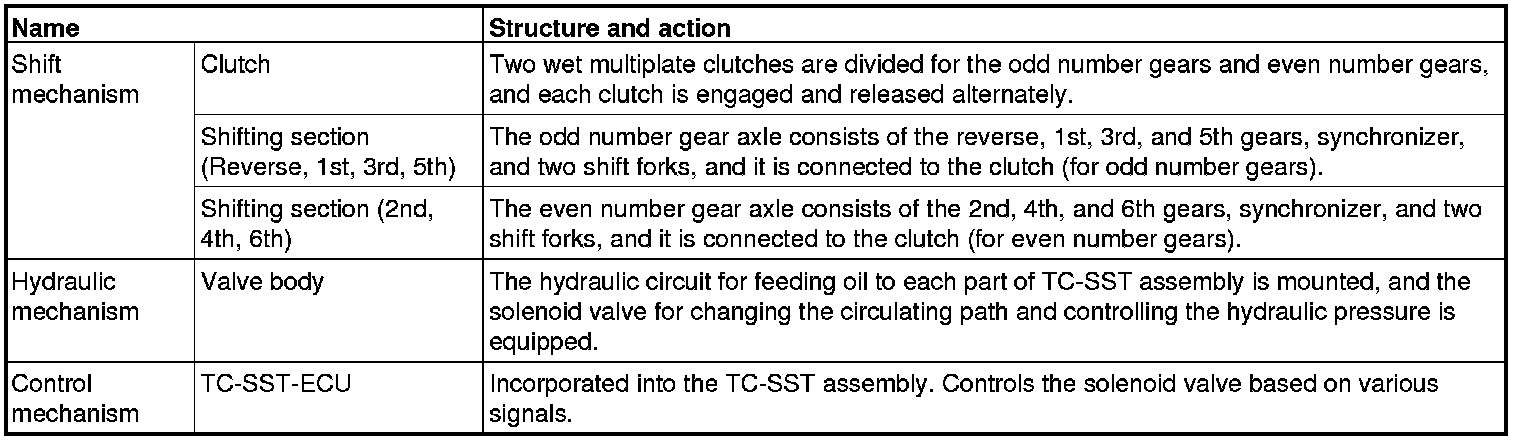

The TC-SST assembly consists mainly of the clutch, shifting section, valve body, and TC-SST-ECU.
The valve body is controlled by TC-SST-ECU, and the clutch and shifting operations are performed by the hydraulic pressure from the valve body.
