Trailing Arm Bushing: Service and Repair

TRAILING ARM BUSHING REPLACEMENT [AWD]

CAUTION:
The trailing arm bushing can be replaced only once. If the bushing is replaced multiple times, the drawing force of bushing may become reduced.

Required Special Tools:

- MB992121: Arm Bushing Remover and Installer
- MB992125: Arm Bushing Base
- MB992175: Base Spacer

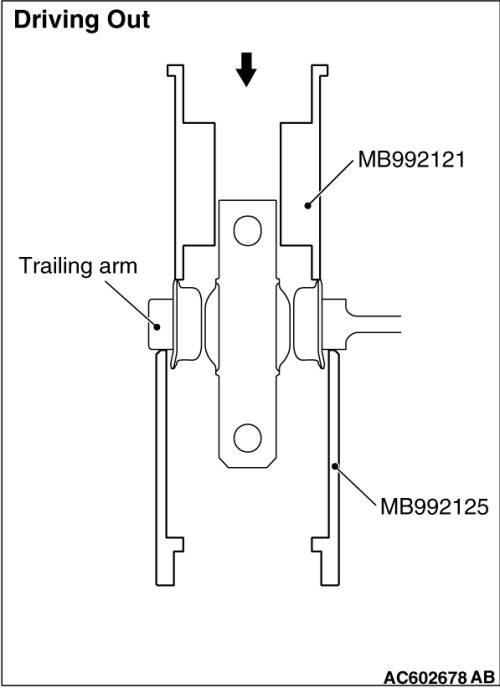

1. Use special tools MB992121 and MB992125 to remove the trailing arm bushing:





2. Determine the installation direction and the installation position of the trailing arm bushing.
(1) Install so that the protruding side of the trailing arm bushing inner pipe faces inside the body.

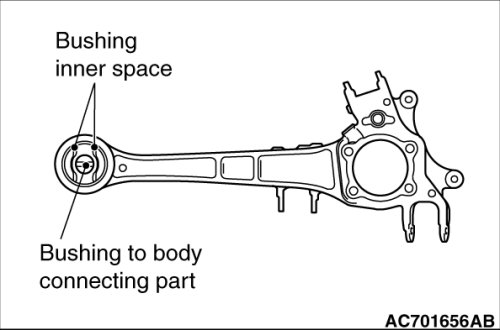

(2) Position horizontally the trailing arm bushing to body connecting part, and locate bushing inner space as shown in the figure.

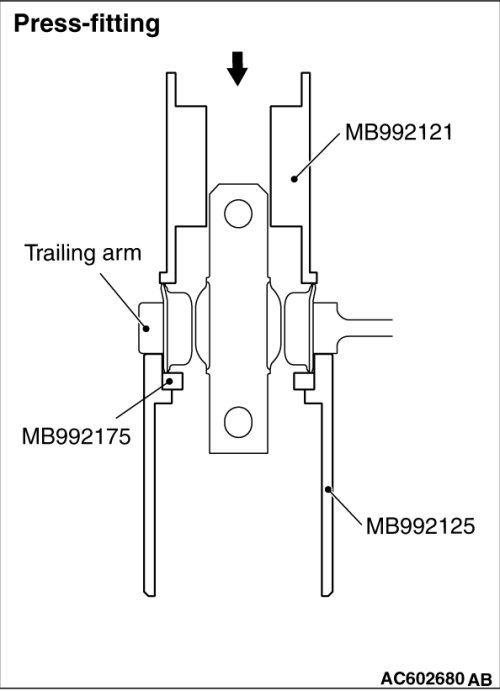

3. Use special tools MB992121, MB992125 and MB992175 to press-fit the trailing arm bushing up to the position shown in the figure.
