Rear Suspension

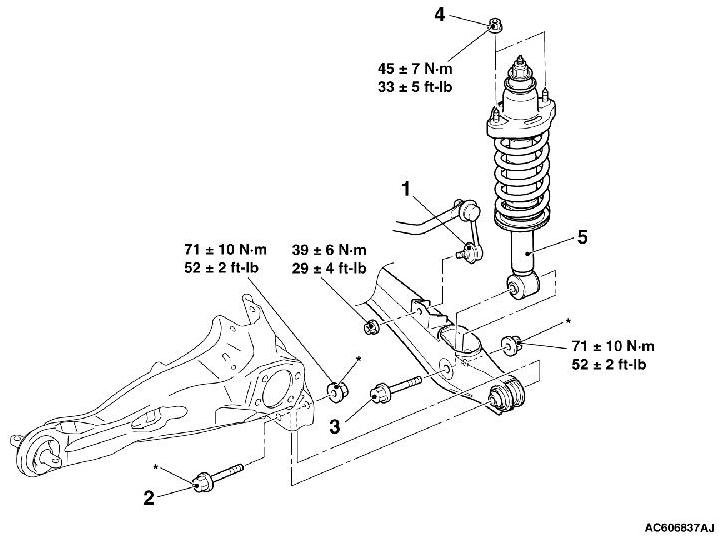

REMOVAL AND INSTALLATION

CAUTION:
The parts indicated by * are the bolts/nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.













REMOVAL SERVICE POINTS

[[A]] LOWER ARM AND TRAILING ARM DISCONNECTION





While jacking-up the lower arm with garage jack, remove the mounting bolts.

[[B]] SHOCK ABSORBER ASSEMBLY REMOVAL

After having loosened the lower arm and rear suspension crossmember connection, remove the shock absorber assembly.

INSTALLATION SERVICE POINT

]]A[[ SHOCK ABSORBER ASSEMBLY INSTALLATION

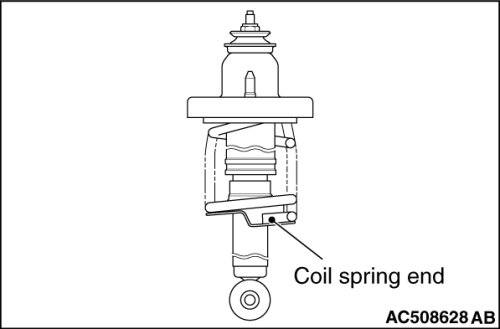

Install the shock absorber assembly so that the coil spring end faces the rear of the vehicle.
