Front Suspension

REMOVAL AND INSTALLATION

CAUTION:
The part indicated by * is the nut with friction coefficient stabilizer. During removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten it to the specified torque.













REMOVAL SERVICE POINT

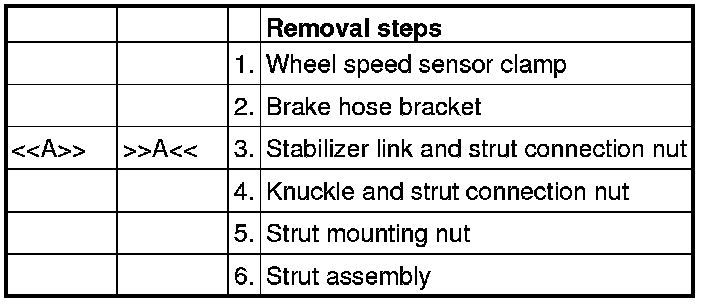

[[A]] STABILIZER LINK AND STRUT CONNECTION NUT REMOVAL

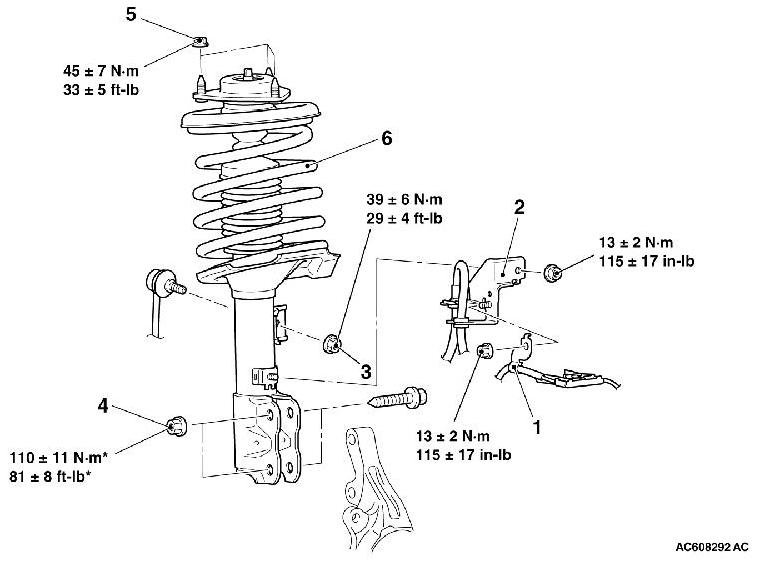

Use a hexagon wrench to remove the stabilizer link and strut connection nut as shown in the figure.

INSTALLATION SERVICE POINT

]]A[[ STABILIZER LINK AND STRUT CONNECTION NUT INSTALLATION





Use a hexagon wrench to install the stabilizer link and strut connection nut as shown in the figure.
