Rear Suspension Crossmember Removal and Installation

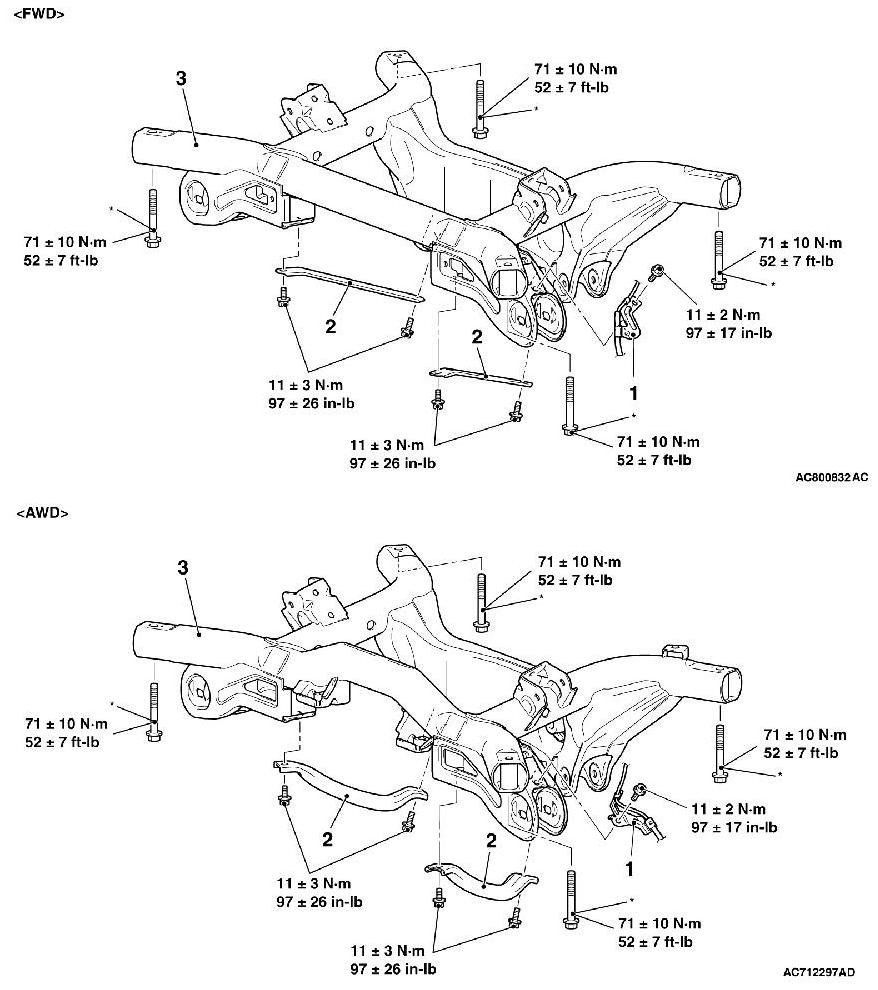

REMOVAL AND INSTALLATION

CAUTION:

- The part indicated by *is the bolt with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.













REMOVAL SERVICE POINT

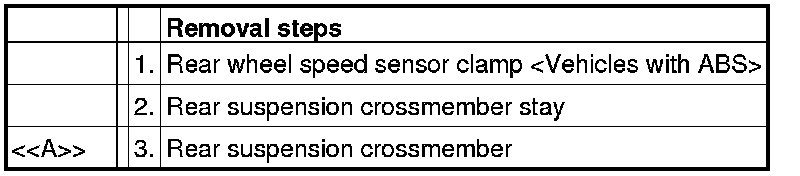

[[A]] REAR SUSPENSION CROSSMEMBER REMOVAL

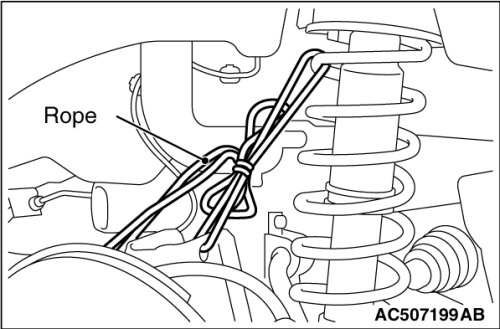

To avoid the break hose load, fix the trailing arm assembly with a rope as shown in the figure.
