Lower Arm Removal and Installation

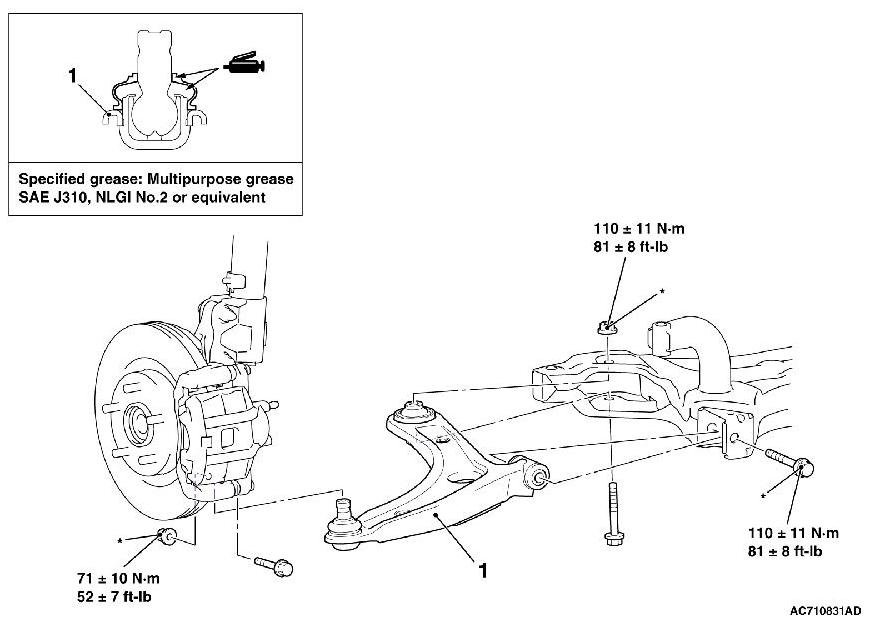

REMOVAL AND INSTALLATION

CAUTION:
The parts indicated by * are the bolts/nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.













REMOVAL SERVICE POINT

[[A]] LOWER ARM ASSEMBLY REMOVAL

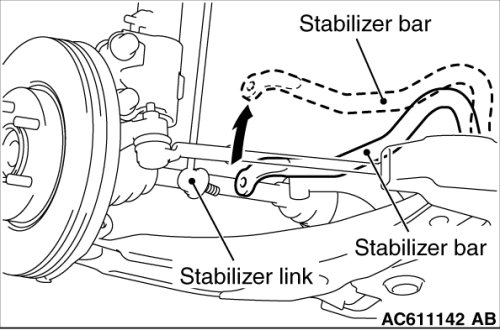

1. Raise up the stabilizer bar as shown in the figure and remove it.
