Home >> Mitsubishi >> 2011 >> Lancer Sportback L4-2.0L Turbo (4B11T) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

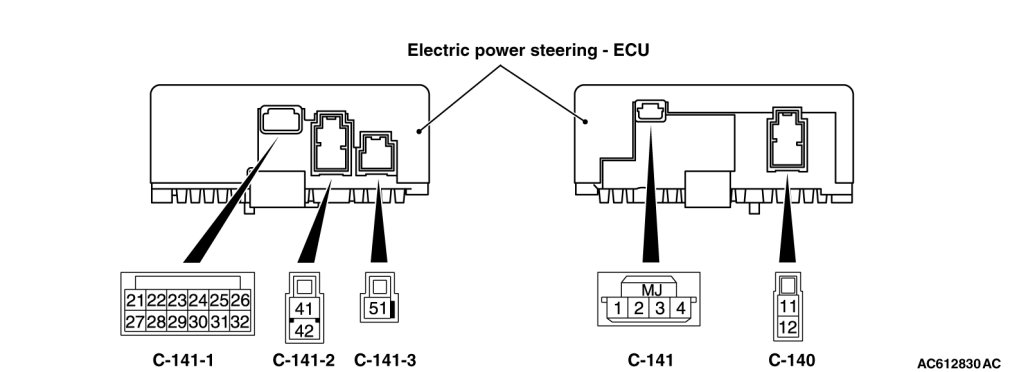

CHECK AT ELECTRIC POWER STEERING-ECU

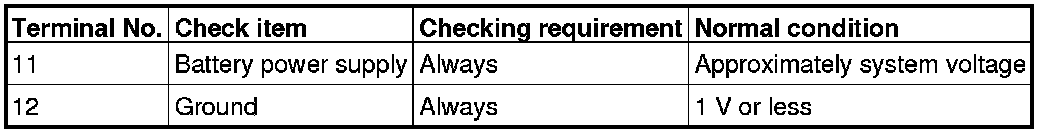

CONNECTOR: C-140

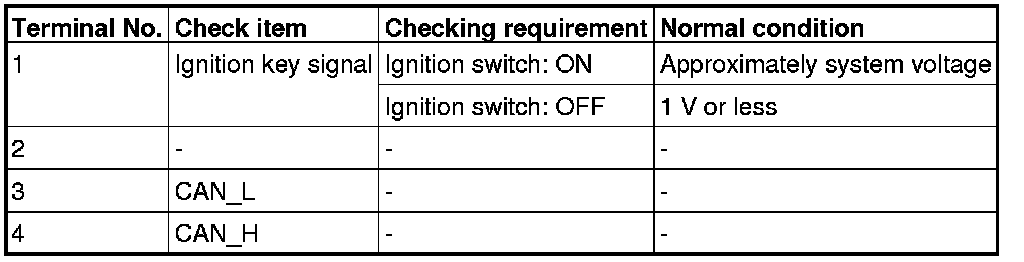

CONNECTOR: C-141

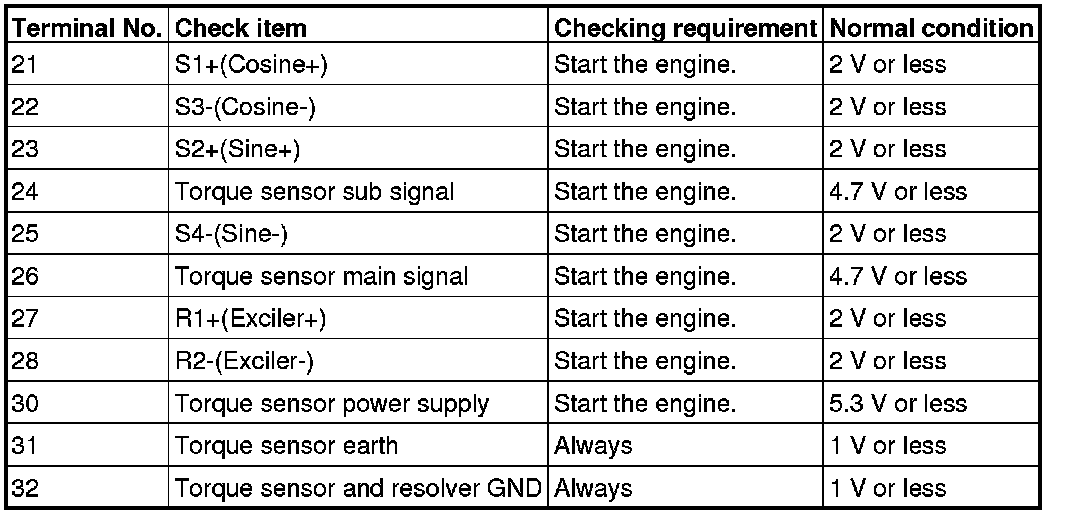

CONNECTOR: C-141-1

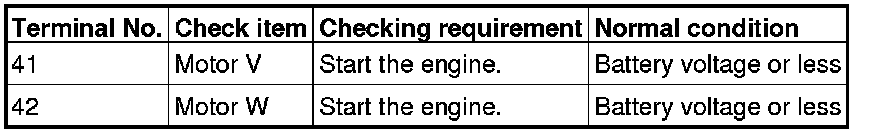

CONNECTOR: C-141-2





CONNECTOR: C-141-3
