Hydraulic Power Steering

STEERING ANGLE CHECK

CAUTION
After adjusting the steering angle, always perform calibration to make ABS/ASC-ECU learn the neutral position of the steering wheel sensor. Programming and Relearning

1. Check that the wheel alignment is normal.

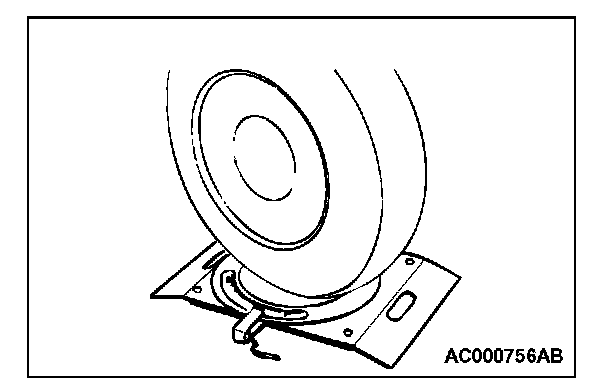

2. Place the front wheel on a turning radius gauge and measure the steering angle.

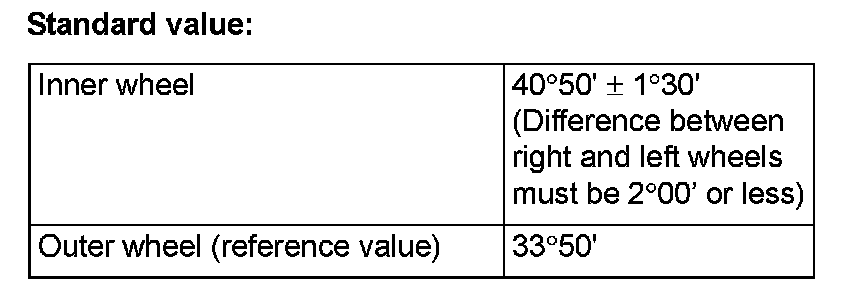

Standard value:








3. If not within the standard value, adjust the tie-rods (right and left), and repeat Steps 1 and 2.
4. If the measured value exceeds the standard range by performing Step 3, replace the steering gear and linkage assembly.
