Timing Cover
Timing Cover
Timing Cover

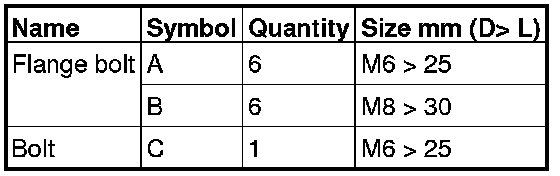

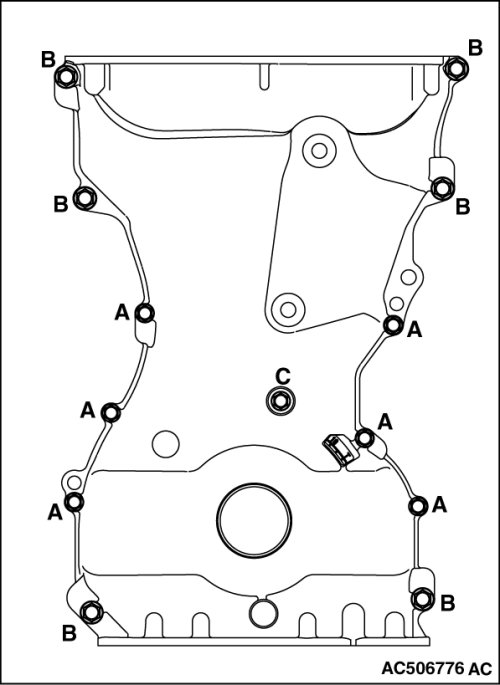

Fasteners
A, C
10 ± 2 Nm (89 ± 17 in-lb)
B
24 ± 4 Nm (18 ± 2 ft-lb)
