Combination Switch: Service and Repair

REMOVAL AND INSTALLATION

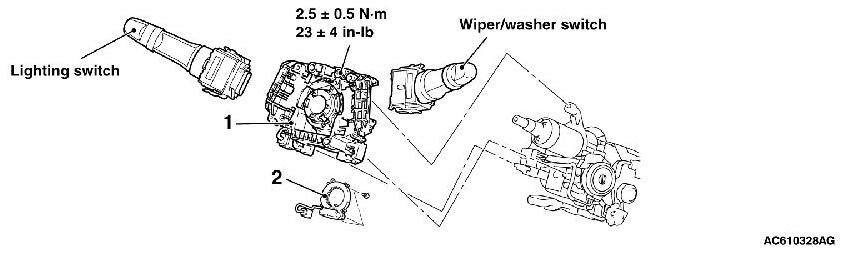

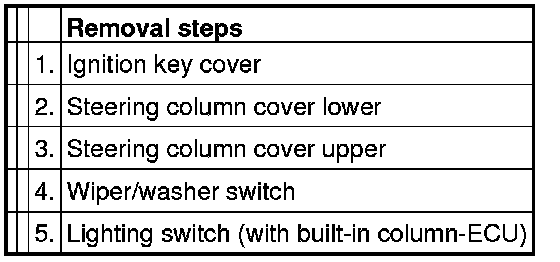

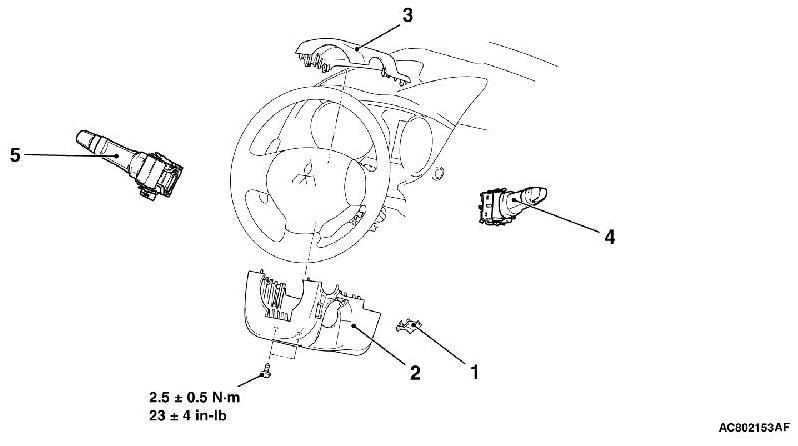

LIGHTING SWITCH AND WIPER/WASHER SWITCH

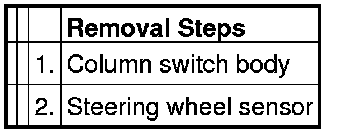

COLUMN SWITCH BODY

CAUTION:

- To remove the driver airbag module, refer to Service Precautions Technician Safety Information and Driver's Air Bag Module and Clock Spring Removal and Installation (Except Ralliart) Removal and Installation (Ralliart).
- When the steering wheel sensor is replaced, always carry out calibration to make ASC-ECU learn the neutral point. Active Stability Control System (ASC).
