Accelerator Pedal Position Sensor: Service and Repair

ACCELERATOR PEDAL

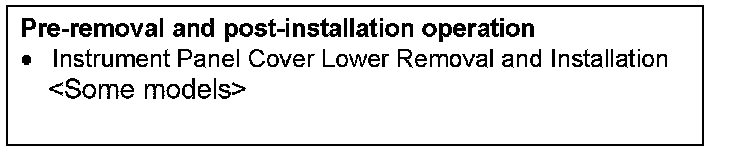

REMOVAL AND INSTALLATION

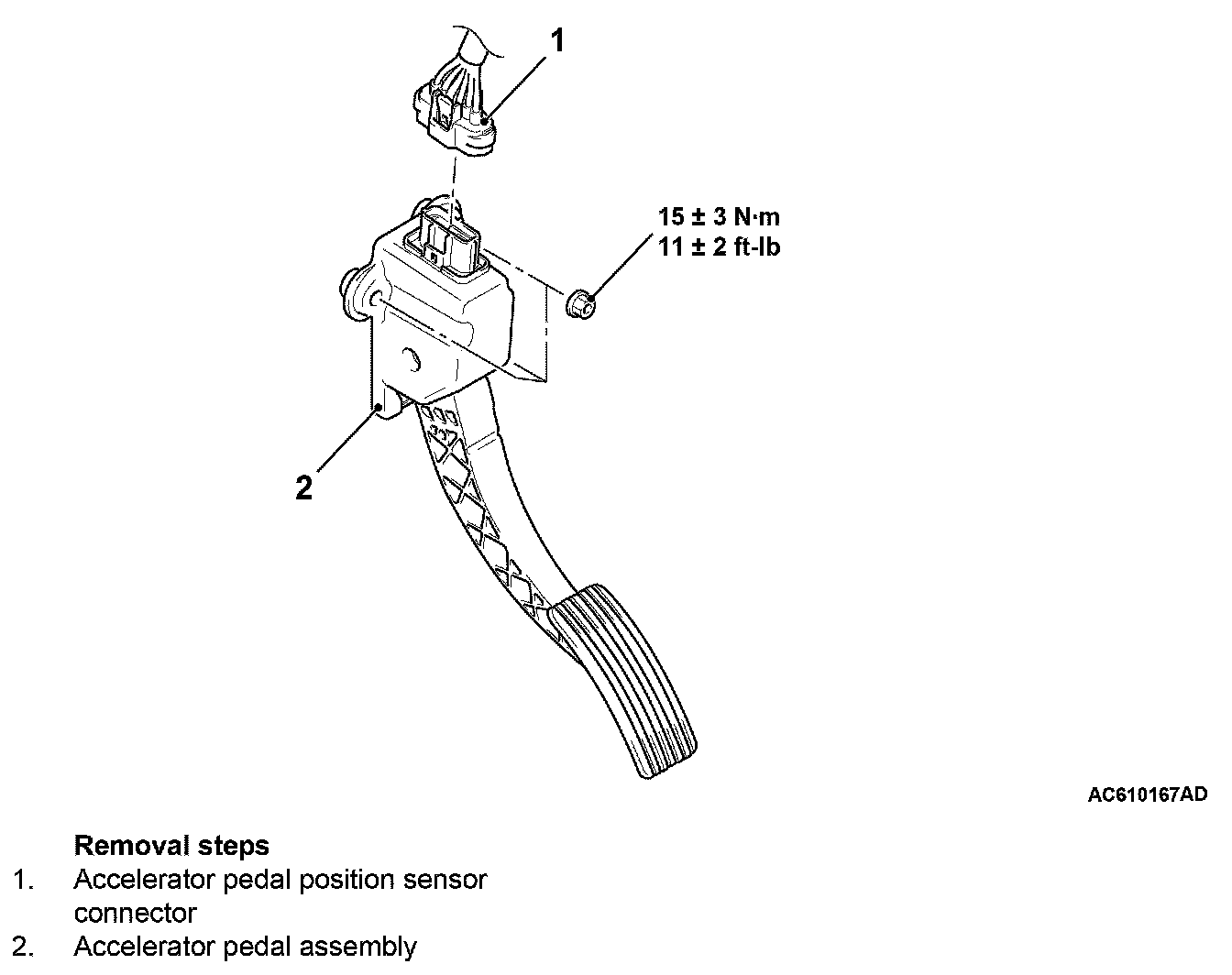

[Vehicles without aluminum pedal pad]

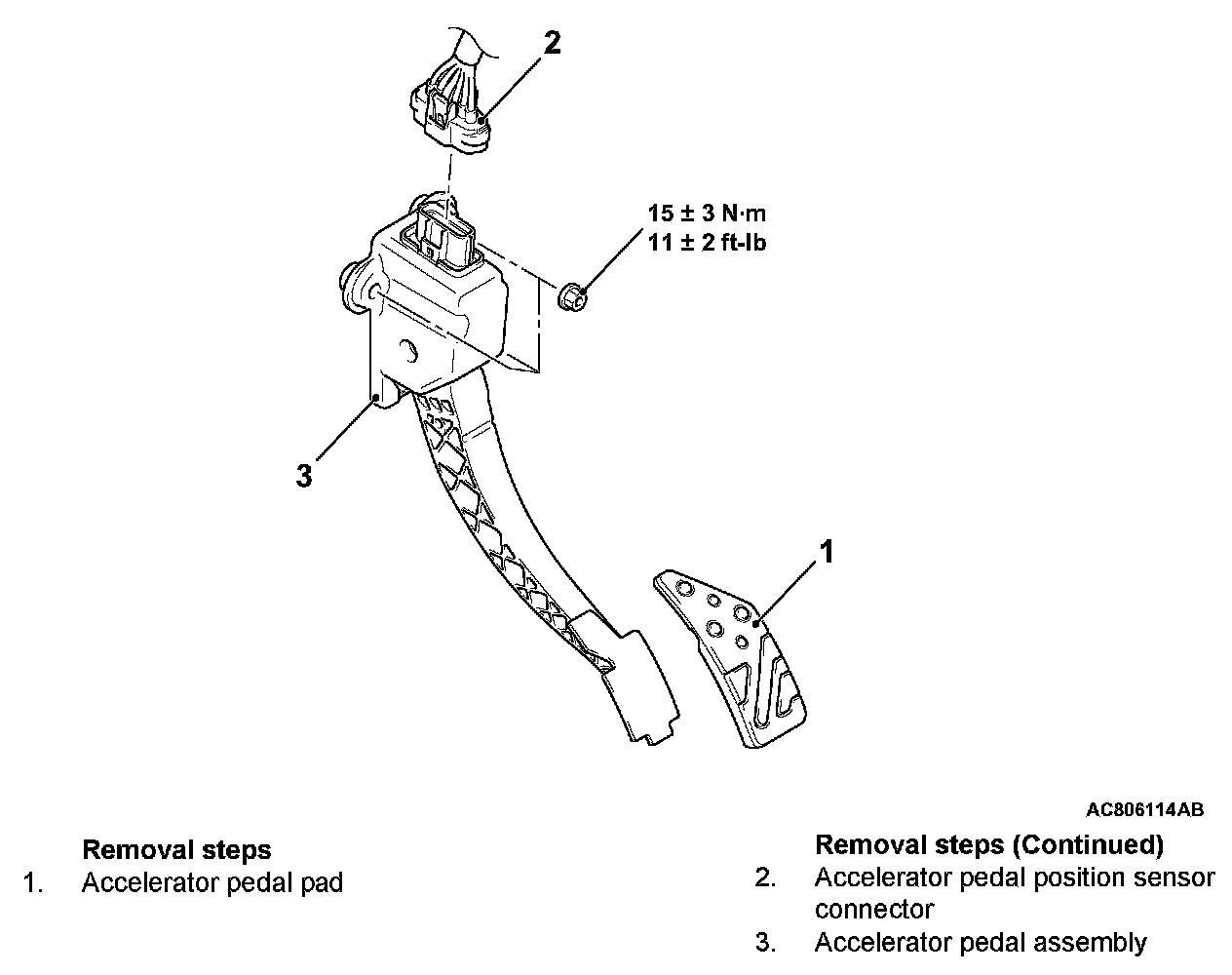

[Vehicles with aluminum pedal pad]
