Power Steering Indicator Lamp: Testing and Inspection

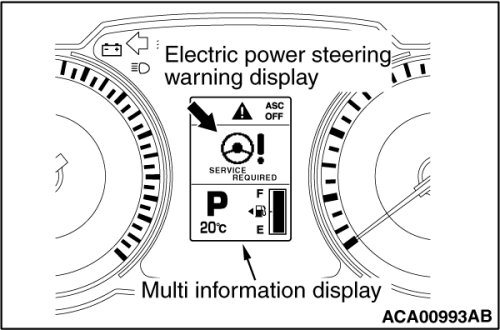

CHECK OF ELECTRIC POWER STEERING WARNING DISPLAY





If the display does not operate, the electric power steering system or the combination meter may be defective. Check for diagnostic trouble code, and carry out diagnosis (Refer to Electrical Power Steering System (EPS)). If no diagnostic trouble codes are set, carry out diagnosis by referring to the electric power steering warning display-related inspection items on the trouble symptom chart (Refer to Symptom Chart).
